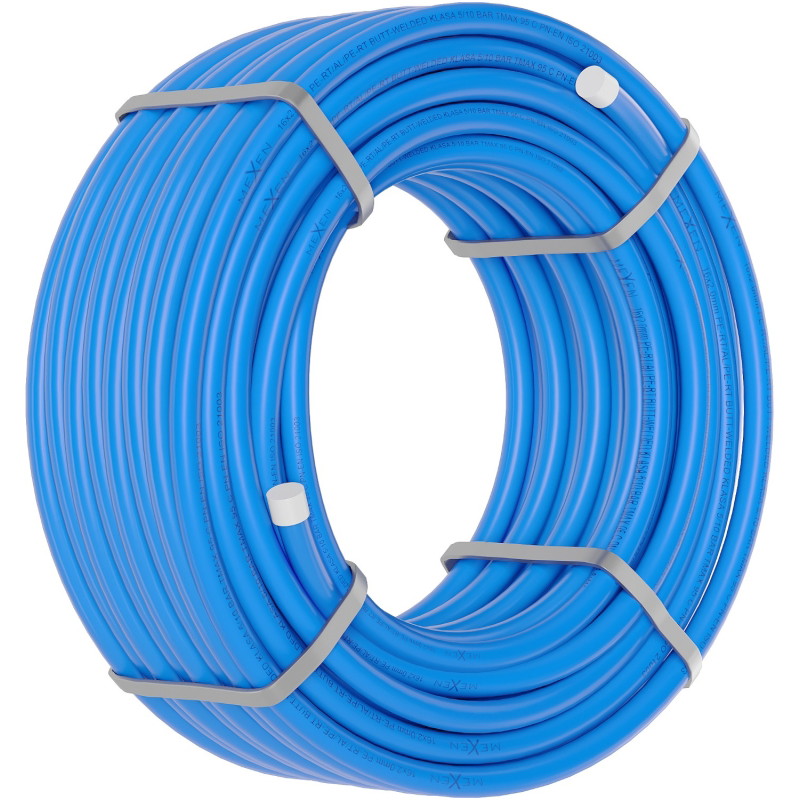

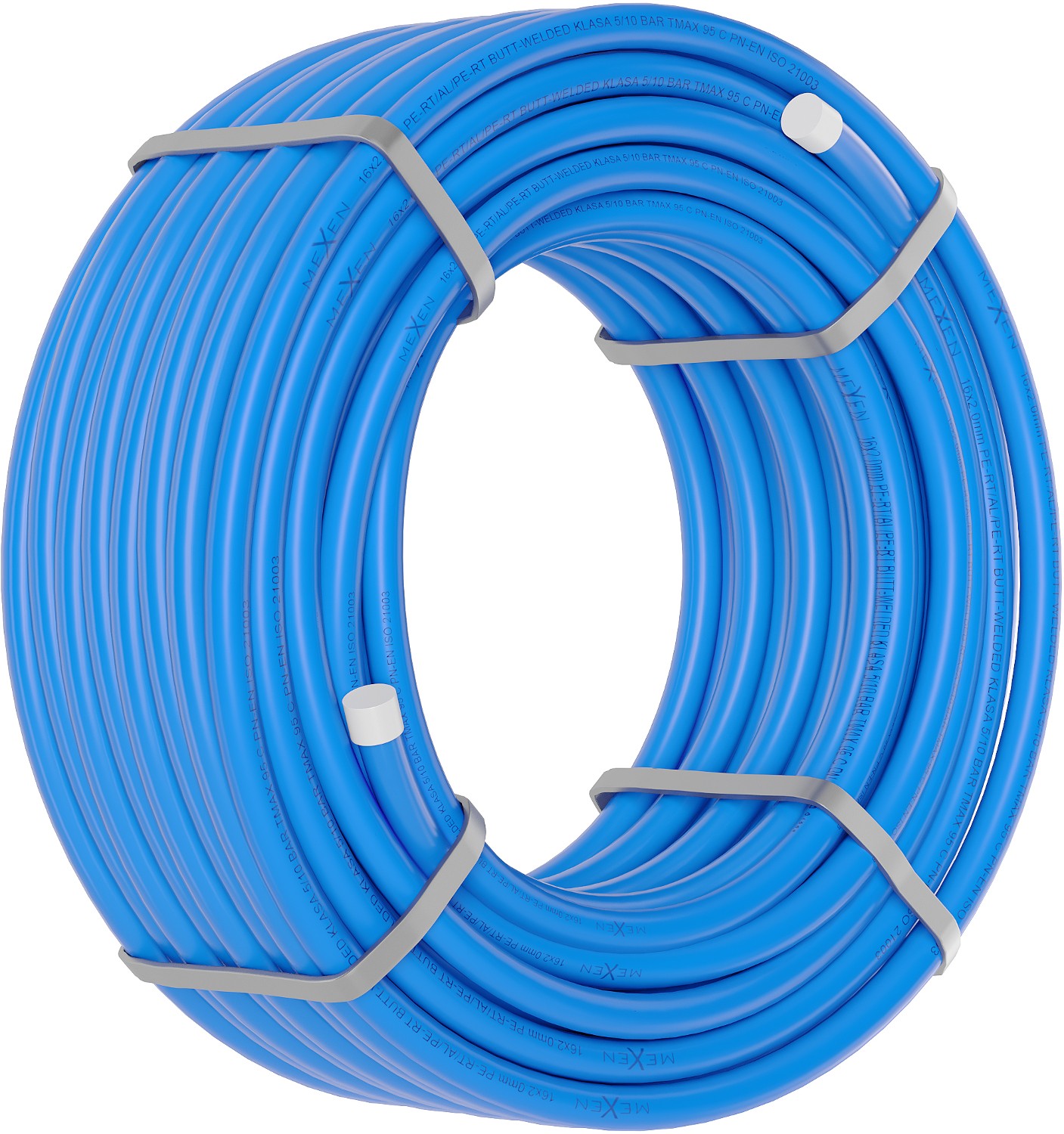

Mexen AL-O PE-RT/AL/PE-RT Pipe 25 x 2.5 mm, 50 m - W97107-2025-50

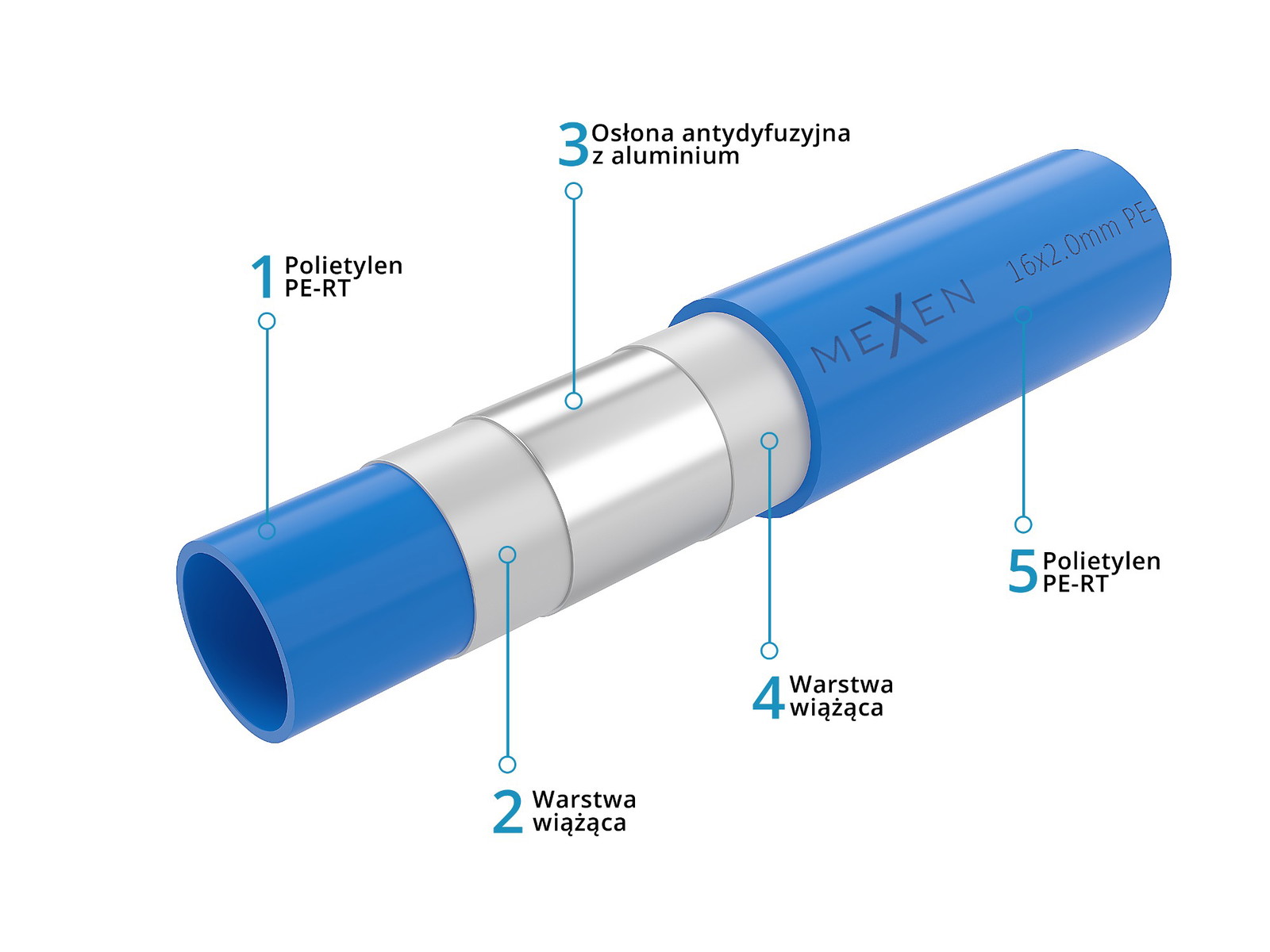

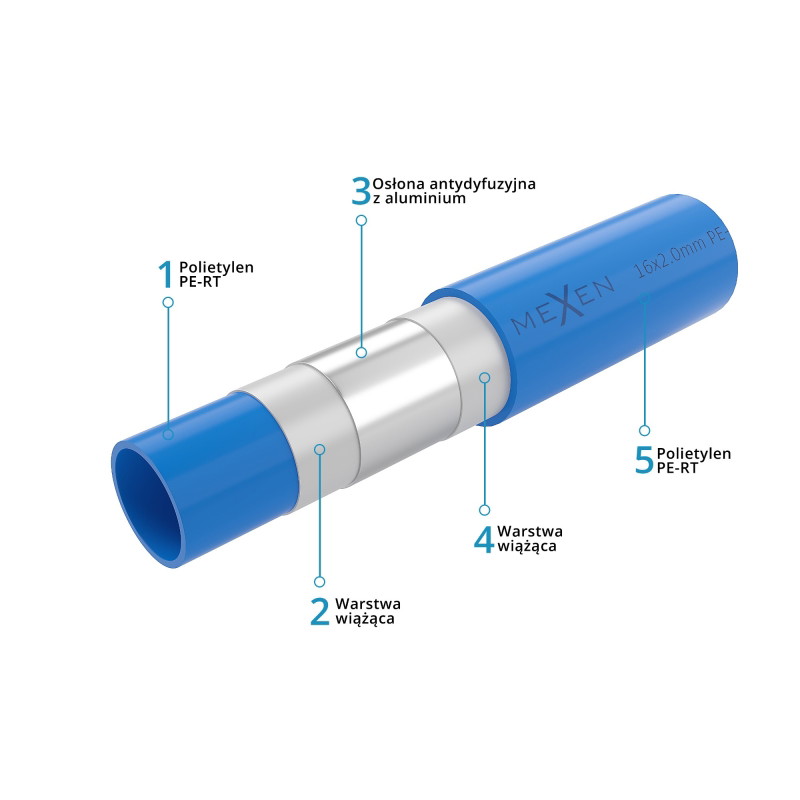

The Mexen AL-O PE-RT/AL/PE-RT pipe with a diameter of 25 mm and a wall thickness of 2.5 mm is a versatile product ideal for central heating, underfloor heating, and hot and cold utility water installations. With a length of 50 m, it offers flexible adaptation to a variety of installation needs. Its special construction with layers of polyethylene with enhanced thermal resistance and 100% diffusion barrier provides high protection against gas permeability and corrosion. With a maximum pressure of 10 bar and a fire reaction class E, this pipe is not only durable but also safe to use.
Technical data:
Length: 50 m
Outer diameter: 25 mm
Wall thickness: 2.5 mm
Intermediate layer thickness: 0.25 mm
Outer layer: Polyethylene with enhanced thermal resistance
Inner layer: Polyethylene with enhanced thermal resistance
Maximum operating pressure at 20°C: 10 bar
Gas permeability and corrosion resistance: 100% diffusion barrier
Coefficient of linear expansion: 0.024mm/(m·K)
Thermal conductivity: 0.43 W/(m²K)
Reaction to fire: Class E
Minimum manual bending radius: 125 mm
Minimum bending radius with spring: 88 mm
Application:
- central heating
- underfloor heating
- cold and hot utility water
