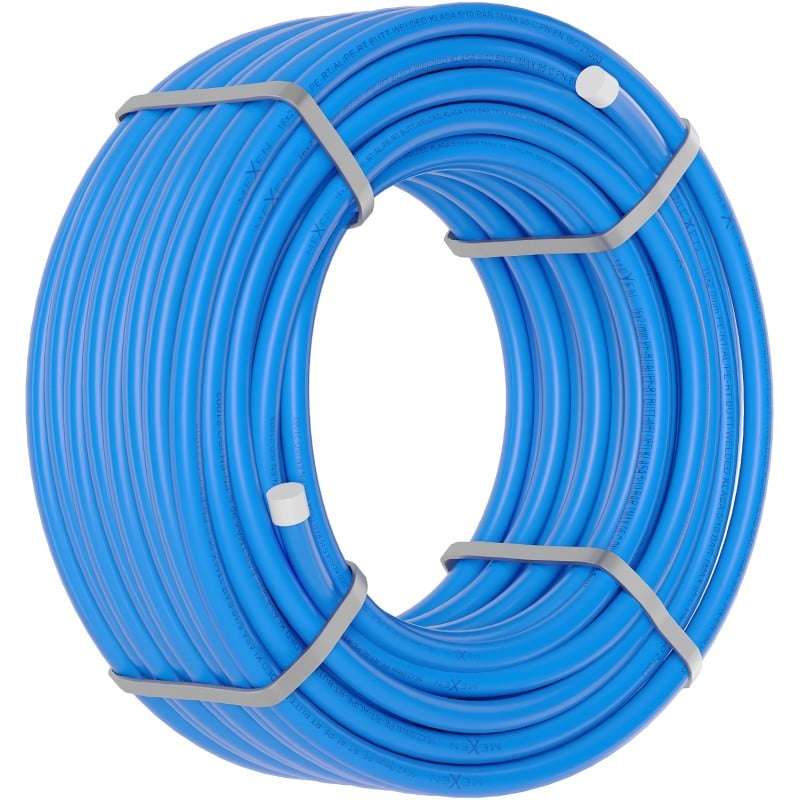

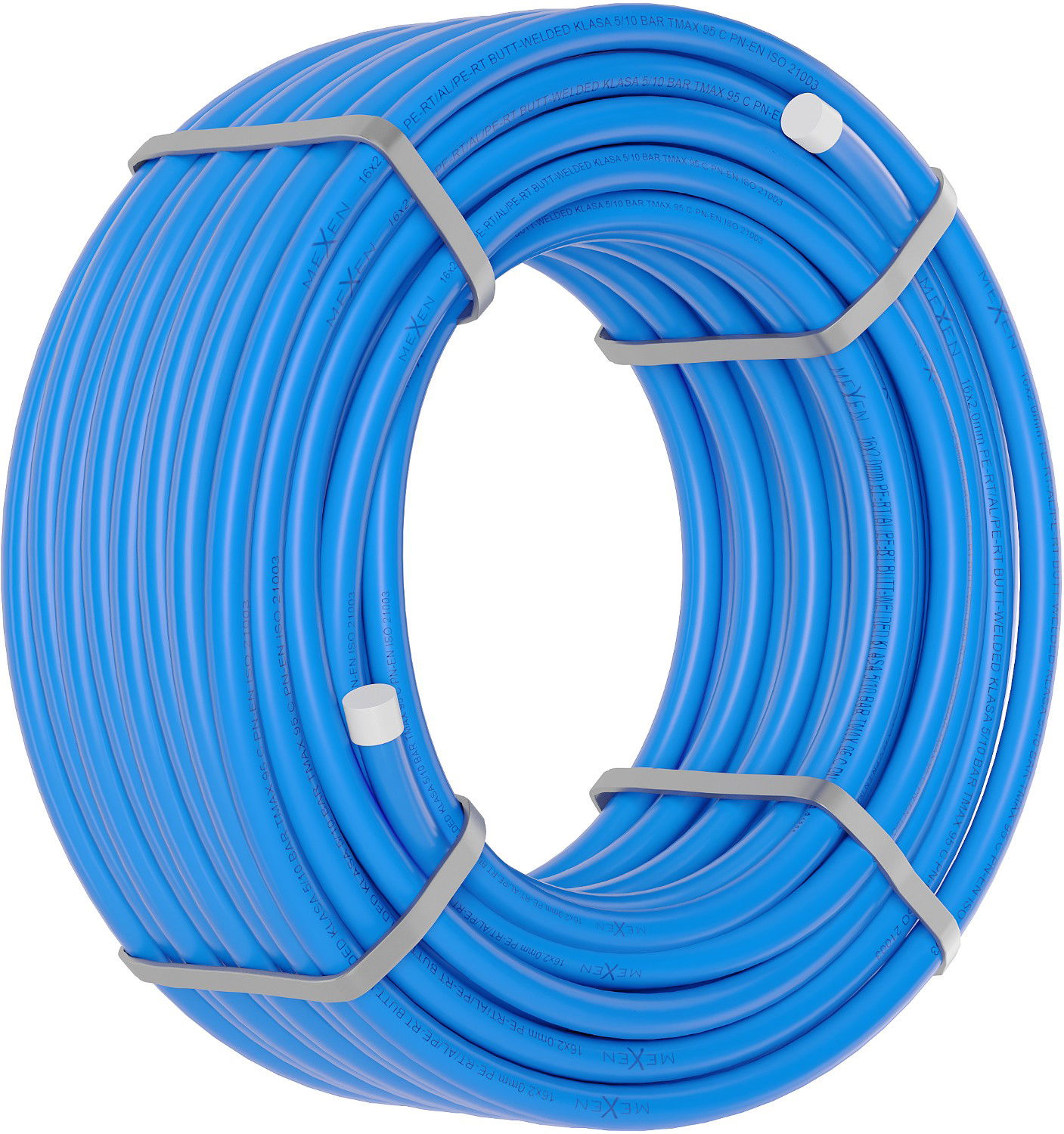

Mexen AL-O pipe PE-RT/AL/PE-RT 32 x 3 mm, 50 m - W97107-2632-50

Dni Stolarza EN

Dni Stolarza EN

(0)
Questions
(0)

Mexen AL-O pipe PE-RT/AL/PE-RT 32 x 3 mm, 50 m - W97107-2632-50

Mexen AL-O pipe PE-RT/AL/PE-RT 32 x 3 mm, 50 m - W97107-2632-50
search
  • Mexen AL-O pipe PE-RT/AL/PE-RT 32 x 3 mm, 50 m - W97107-2632-50
  • Mexen AL-O pipe PE-RT/AL/PE-RT 32 x 3 mm, 50 m - W97107-2632-50
Mexen AL-O pipe PE-RT/AL/PE-RT 32 x 3 mm, 50 m - W97107-2632-50
Mexen AL-O pipe PE-RT/AL/PE-RT 32 x 3 mm, 50 m - W97107-2632-50 Mexen AL-O pipe PE-RT/AL/PE-RT 32 x 3 mm, 50 m - W97107-2632-50
100% Anti-Diffusion 100% Anti-Diffusion
Versatile application Versatile application
Resistance to high temperature Resistance to high temperature
Brand:
Mexen
Series:
AL-O
Ean:
5905315927675
Index:
W97107-2632-50
Type:
Pipe
Length:
50 m
Diameter:
32 mm
Length - 50 m - ()
50 m
100 m
200 m
600 m
Diameter - 32 mm - ()
16 mm
20 mm
25 mm
32 mm

Mexen AL-O pipe PE-RT/AL/PE-RT 32 x 3 mm, 50 m - W97107-2632-50

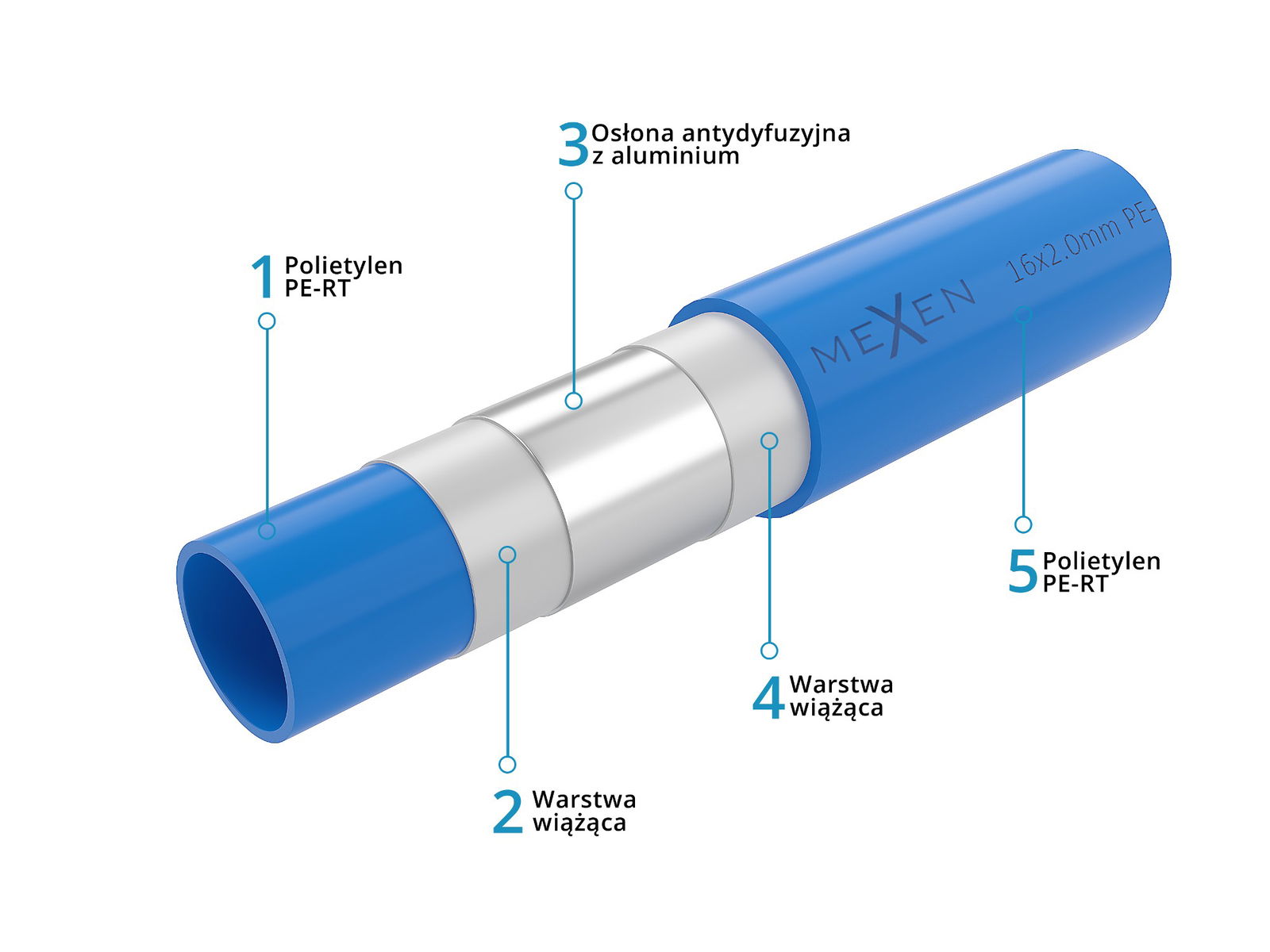

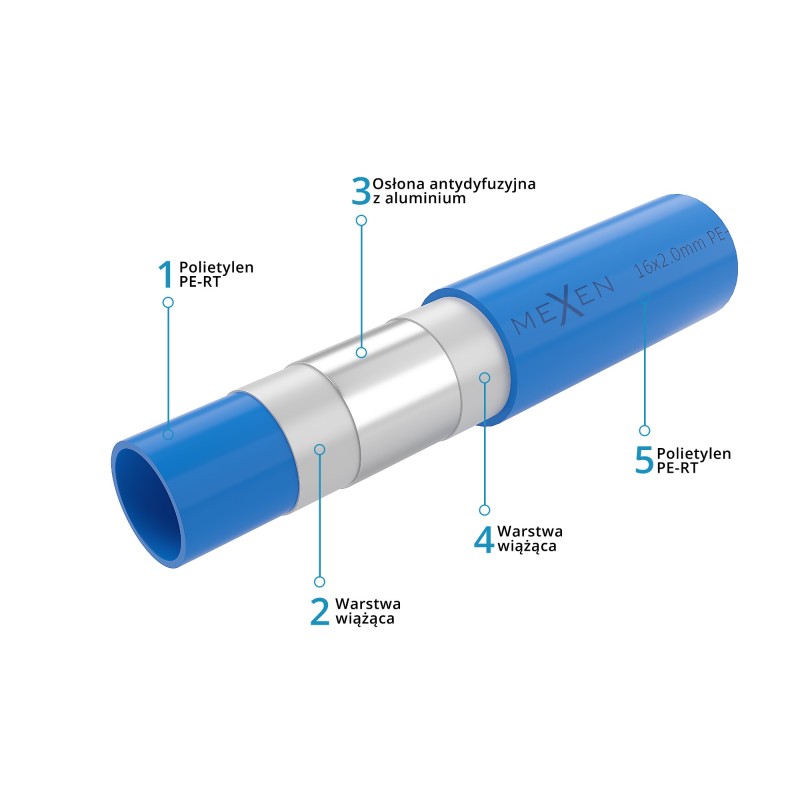

Technical data:

Length: 50 m

Outer diameter: 32 mm

Wall thickness: 3 mm

Intermediate layer thickness: 0.3 mm

Outer layer: Polyethylene with increased thermal resistance

Inner layer: Polyethylene with increased thermal resistance

Maximum operating pressure at 20°C: 10 bar

Resistance to gas penetration and corrosion: 100% anti-diffusion

Linear expansion coefficient: 0.024mm/(m⋅K)

Thermal conductivity: 0.43 W/(m²K)

Reaction to fire: Class E

Minimum manual bending radius: 160 mm

Minimum bending radius using spring: 112 mm

Application:

- central heating

- underfloor heating

- cold and hot domestic water

Innovative solutions used in this product

100% Anti-Diffusion

The pipe features a special layer that blocks the penetration of oxygen into the interior of the installation. This prevents corrosion of metal components in the heating system, such as radiators or heat exchangers. Such a pipe is particularly recommended for central heating and underfloor heating installations.

Versatile application

The product is used in water supply installations for transporting cold and hot drinking water, as well as in central heating systems. They are also used in industrial installations for transporting chemically aggressive liquids and in air conditioning systems.

Resistance to high temperature

The product is characterised by extraordinary resistance to high temperatures, not deforming even with prolonged exposure to hot water. The material is also resistant to damage and cracks caused by sudden temperature changes.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it does not adversely affect human health or the natural environment in any way. nr B.BK.60110.1252.2024 valid until 31.03.2028

Series
AL-O
Length
50 m
Diameter
32 mm
Type
Pipe
Safety information
Download
Warranty conditions
Download
PZH Certificate
Download
Manufacturer
See
