Mexen CF11 Flat Panel Radiator 300 x 600 mm, Side Connection, 273 W, White - W411F-030-060-00

The Mexen Flat CF11 300 x 600 mm panel radiator is ideal for those valuing functionality and aesthetics. With a width of 600 mm and a height of 300 mm, this compact radiator fits perfectly into smaller spaces while offering impressive heating power up to 273 W at 75/65/20 °C. Made of durable steel and painted in white RAL 9016, it provides excellent thermal properties and a modern appearance. The maximum working pressure is 10 bar, and the radiator is suitable for operating at temperatures up to 110 °C. It features side connections and is easy to install with the complete accessory set.

Technical Specifications:

Height (Y): 300 mm

Width (X): 600 mm

Depth: 59 mm

Connection Distance: 25 cm

Distance Between Vertical Water Channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating Temperature: max 110 °C

Maximum Working Pressure: 10 bar

Maximum Test Pressure: 13 bar

Heating Power:

- 55/45/20 °C 147 W

- 75/65/20 °C 273 W

- 90/70/20 °C 341 W

Connections:

- 4xG ½″ side

High-quality, durable coating - DIN 99500

Features a side cover and removable top cover

Includes: hangers, installation kit, sealing plugs, and air vent

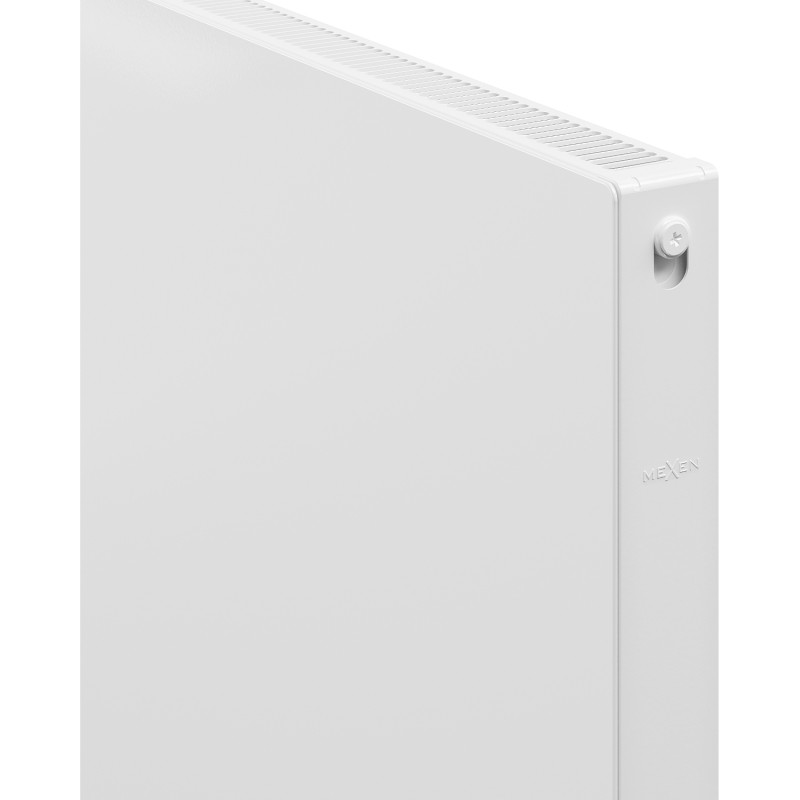

The pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CF11
Width
600 mm
Height
300 mm
Depth
59 mm
Type
Plate / Panel
Heating power
273 W
Color
White
Material
Steel
Type
11
Installation Orientation
Universal
Connection spacing
25 cm
Connection
Side
Orientation
Horizontal
