Mexen CF11 Flat panel radiator 300 x 700 mm, side connection, 318 W, white - W411F-030-070-00
The Mexen Flat CF11 is a compact panel radiator with dimensions of 300 x 700 mm, ideal for spaces requiring efficient heating. Its white steel construction (RAL 9016) features a maximum working temperature of 110 °C and a working pressure of 10 bar. With side connections and heating power up to 397 W, the radiator provides optimal warmth in various conditions. The high-quality paint coating and removable top cover enhance the durability and aesthetics of the device. The set includes mounting accessories and a vent.

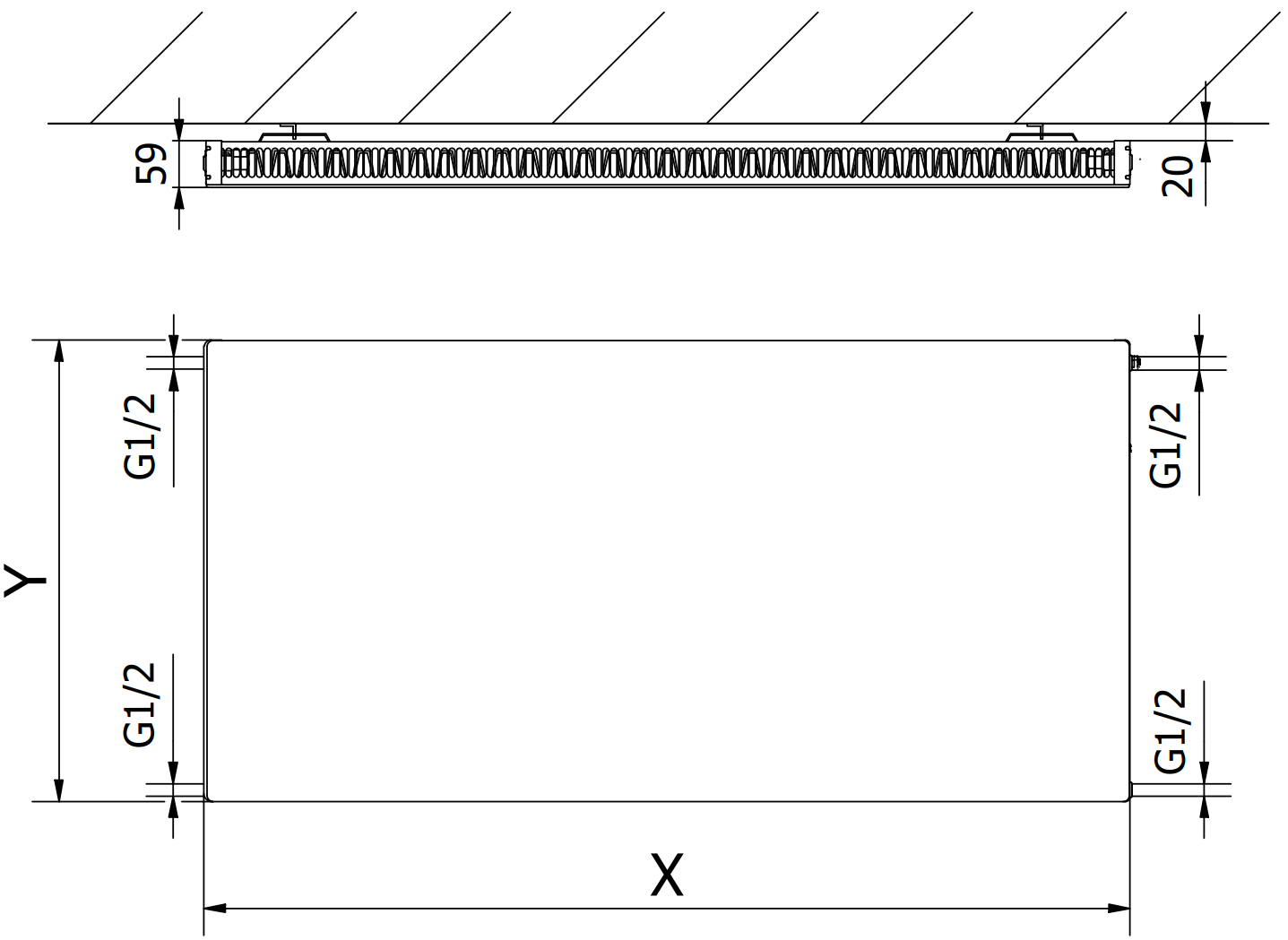

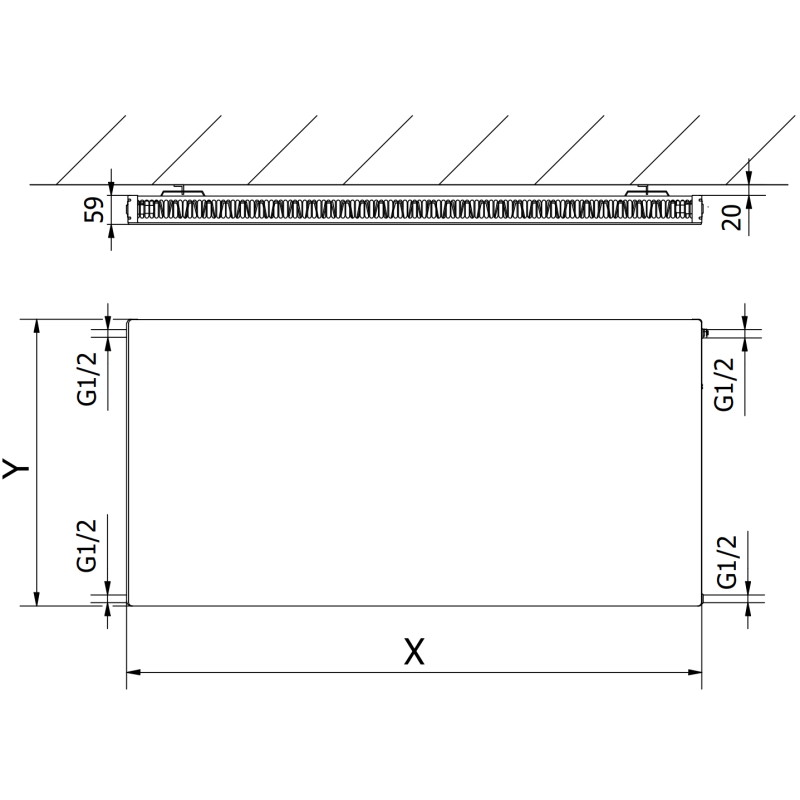

Technical data:
Height (Y): 300 mm
Width (X): 700 mm
Depth: 59 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Working temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 171 W
- 75/65/20 °C 318 W
- 90/70/20 °C 397 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Includes: brackets, mounting kit, sealing plugs, and vent

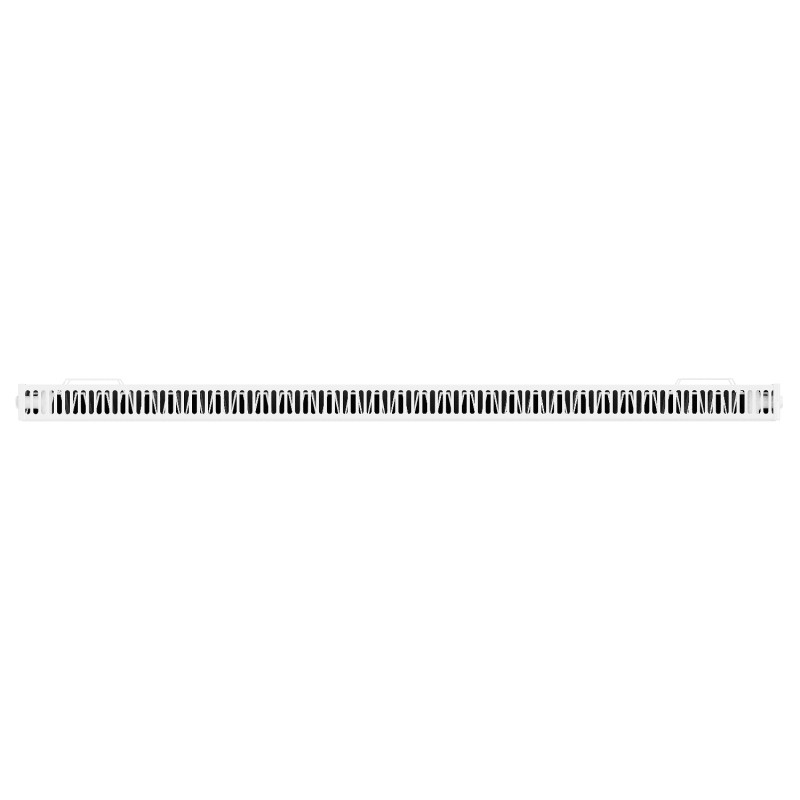

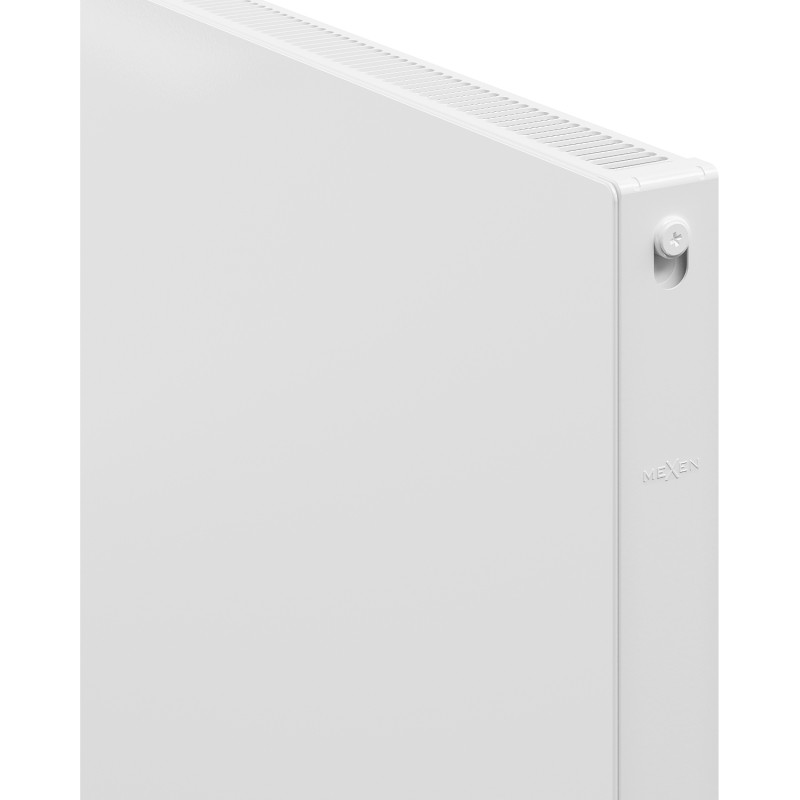

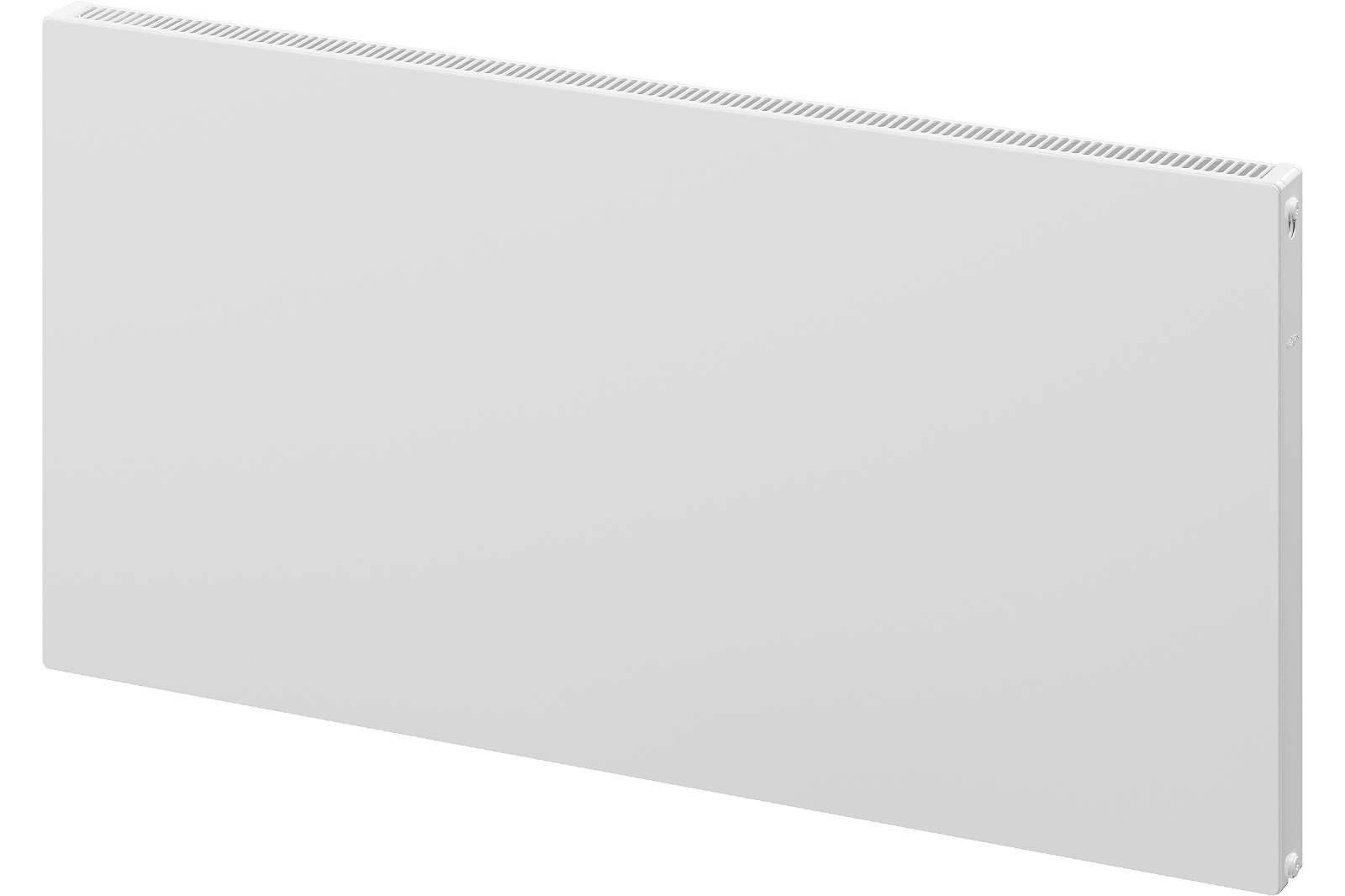

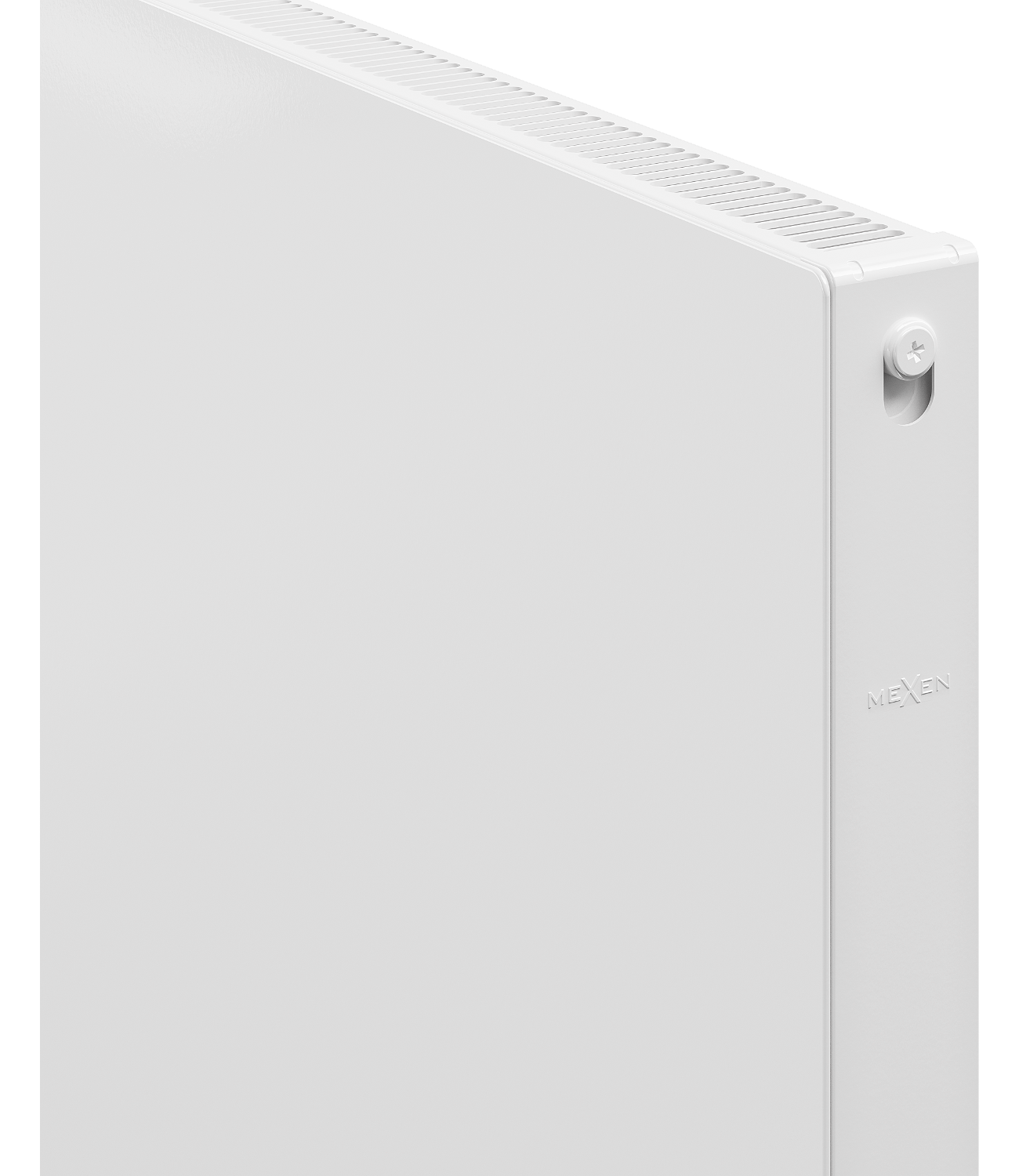

Photos show the radiator size 600 x 1200 mm.
