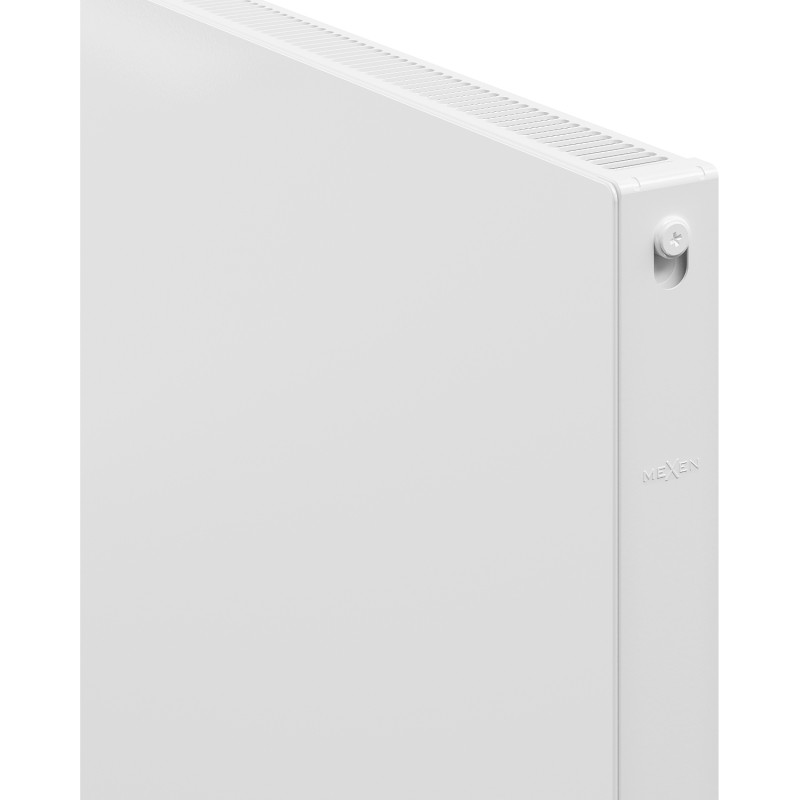

Mexen CF11 Flat panel radiator 300 x 1200 mm, side connection, 546 W, white - W411F-030-120-00
Mexen Flat CF11 is an excellent choice for those looking for an efficient heating system. The panel radiator measuring 300 x 1200 mm with a side connection provides an impressive power of 546 W at a temperature of 75/65/20 °C. Made from durable steel, it offers a high-quality paint finish compliant with DIN 99500. With a white RAL 9016 finish, it fits into any interior. It has 4 side G ½” connections and comes with a mounting kit and air vent for easy installation. The maximum operating temperature is 110 °C, and the working pressure reaches 10 bar, ensuring reliability and safety of use.

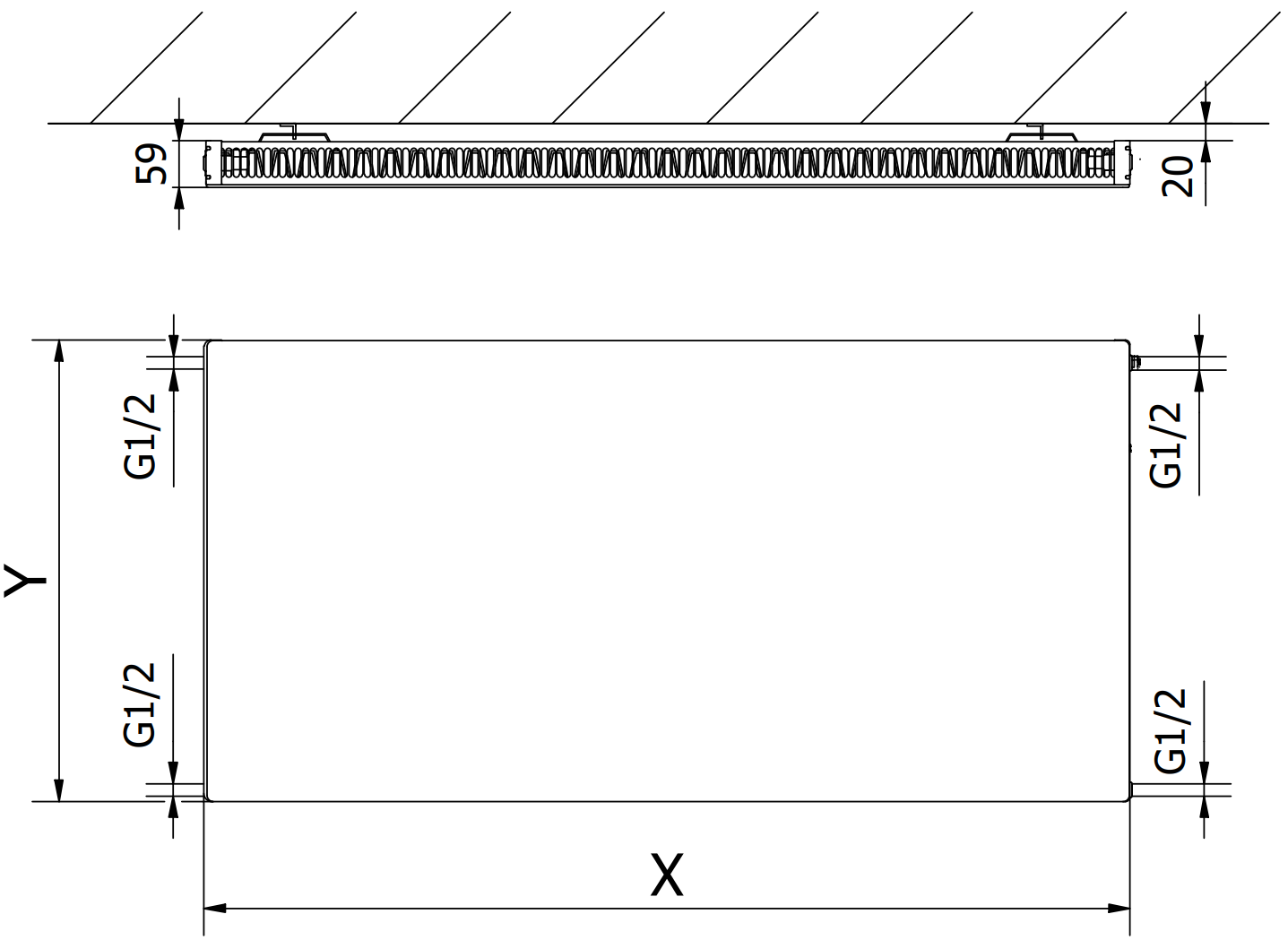

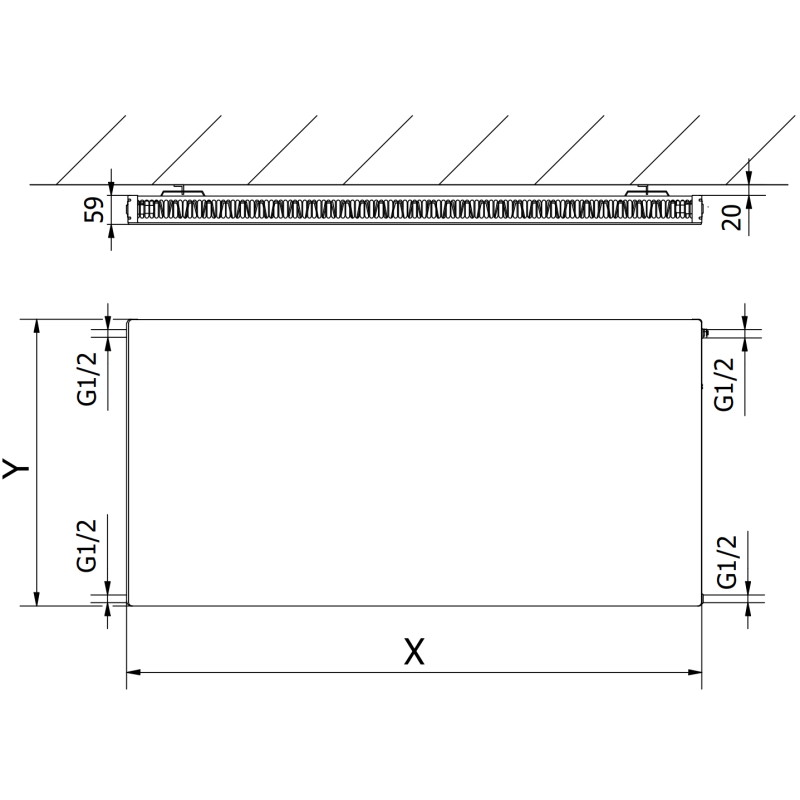

Technical data:
Height (Y): 300 mm
Width (X): 1200 mm
Depth: 59 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating capacity:
- 55/45/20 °C 293 W
- 75/65/20 °C 546 W
- 90/70/20 °C 681 W
Connections:
- 4xG ½” side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Includes: brackets, mounting kit, sealing plugs, and air vent

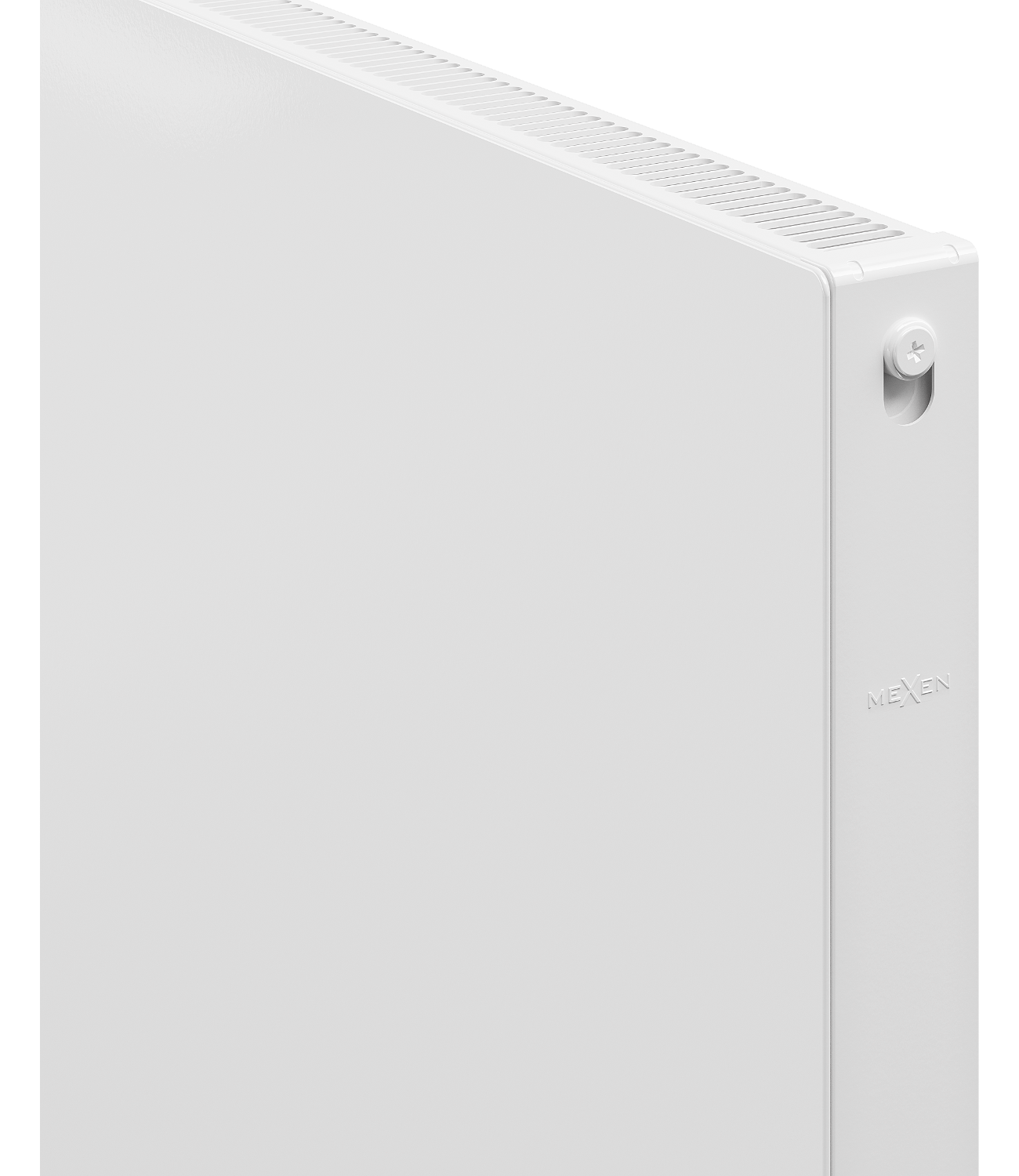

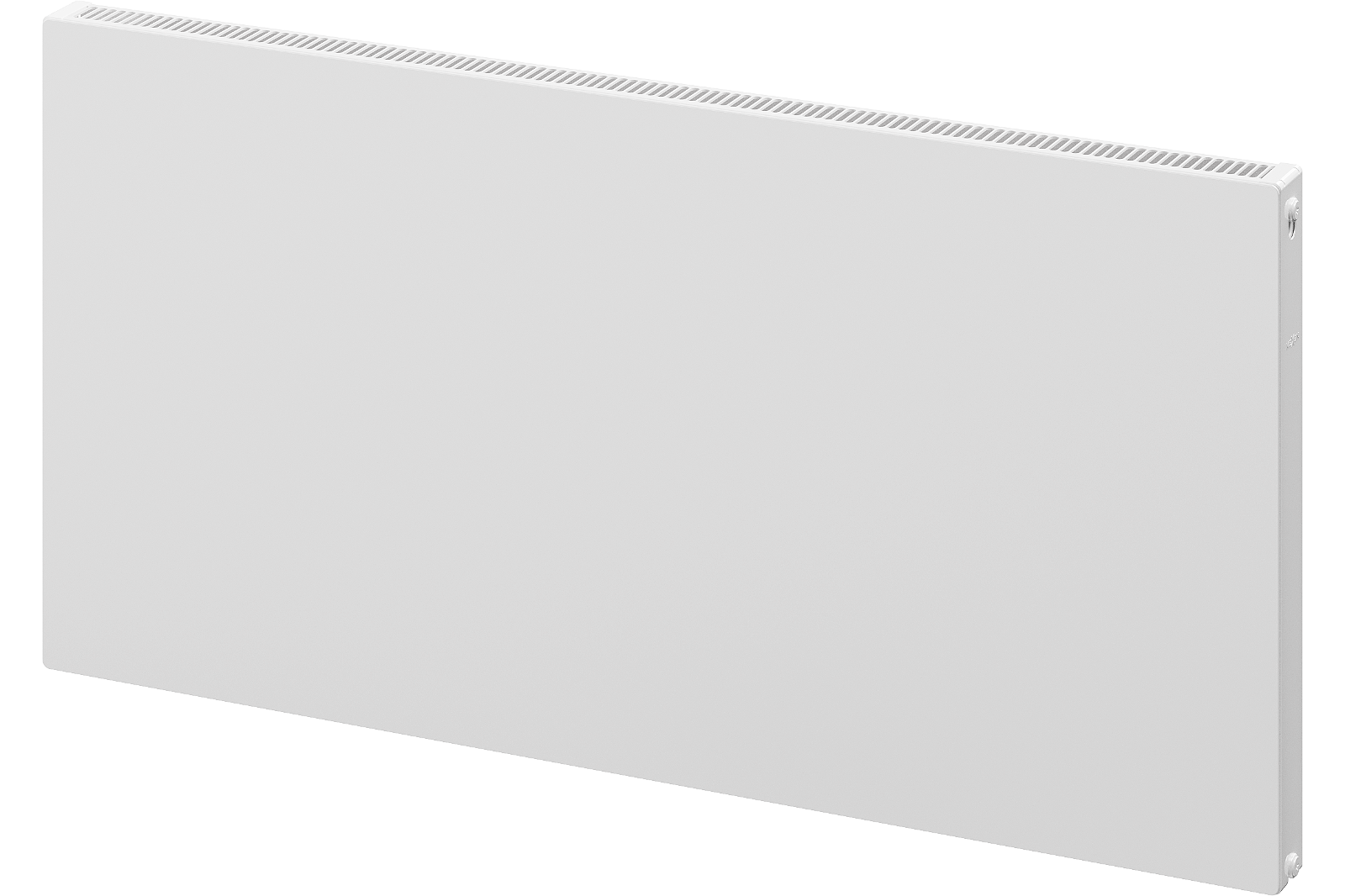

Photos show the radiator in size 600 x 1200 mm.
