Mexen CF11 Flat panel radiator 300 x 900 mm, side connection, 409 W, white - W411F-030-090-00
Mexen Flat CF11 is a modern panel radiator measuring 300 x 900 mm, ideal for efficient room heating. The heating power reaches up to 511 W at 90/70/20 °C, ensuring quick and even heat distribution. Made of steel with a white RAL 9016 coating, it is both functional and stylish. The maximum operating temperature is 110 °C, and the working pressure is 10 bars, ensuring safety and durability. The set includes brackets, an installation kit, and an air vent.
Technical data:
Height (Y): 300 mm
Width (X): 900 mm
Depth: 59 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 220 W
- 75/65/20 °C 409 W
- 90/70/20 °C 511 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Complete with: brackets, installation kit, sealing plugs, and air vent

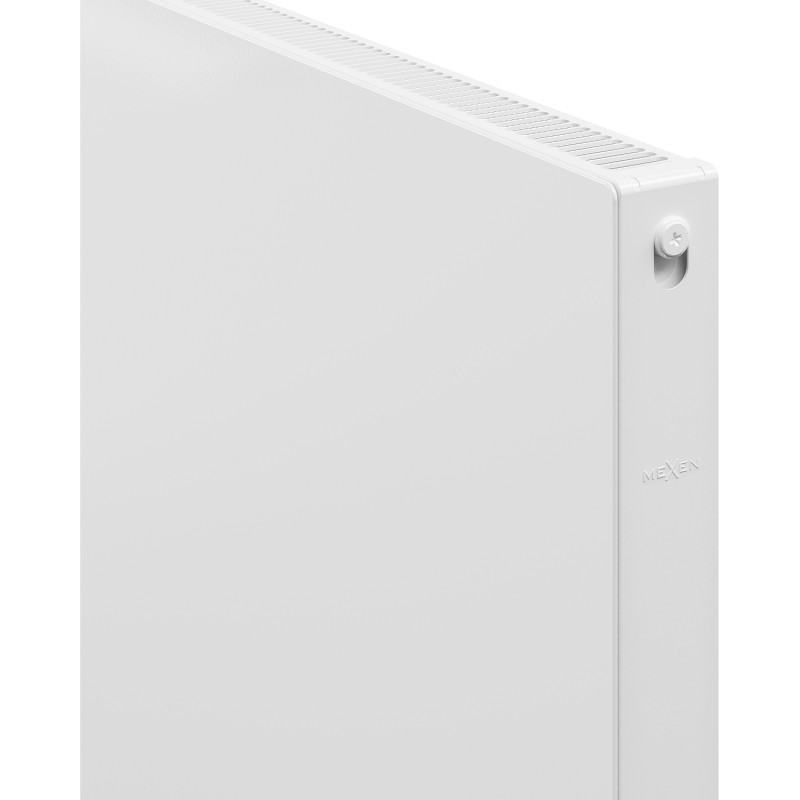

Images show the radiator in size 600 x 1200 mm.
