Mexen CF11 Flat panel radiator 600 x 900 mm, side connection, 705 W, white - W411F-060-090-00

The Mexen Flat CF11 is a modern panel radiator measuring 600 x 900 mm. It provides high heating power up to 705 W at a temperature of 75/65/20 °C, making it ideal for heating larger rooms. The radiator is white (RAL 9016) and made of steel, ensuring its durability. Its maximum operating temperature is 110 °C, and the maximum working pressure is 10 bar. It is equipped with four side G ½" connections, facilitating installation. The package includes brackets, a mounting kit, and sealing plugs. Its aesthetic appearance is enhanced by the side cover and removable top cover.

Technical data:

Height (Y): 600 mm

Width (X): 900 mm

Depth: 59 mm

Connection distance: 55 cm

Distance between vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 373 W

- 75/65/20 °C 705 W

- 90/70/20 °C 884 W

Connections:

- 4xG ½" side

High-quality, durable lacquer coating - DIN 99500

Comes with side cover and removable top cover

Includes: brackets, mounting kit, sealing plugs, and air vent

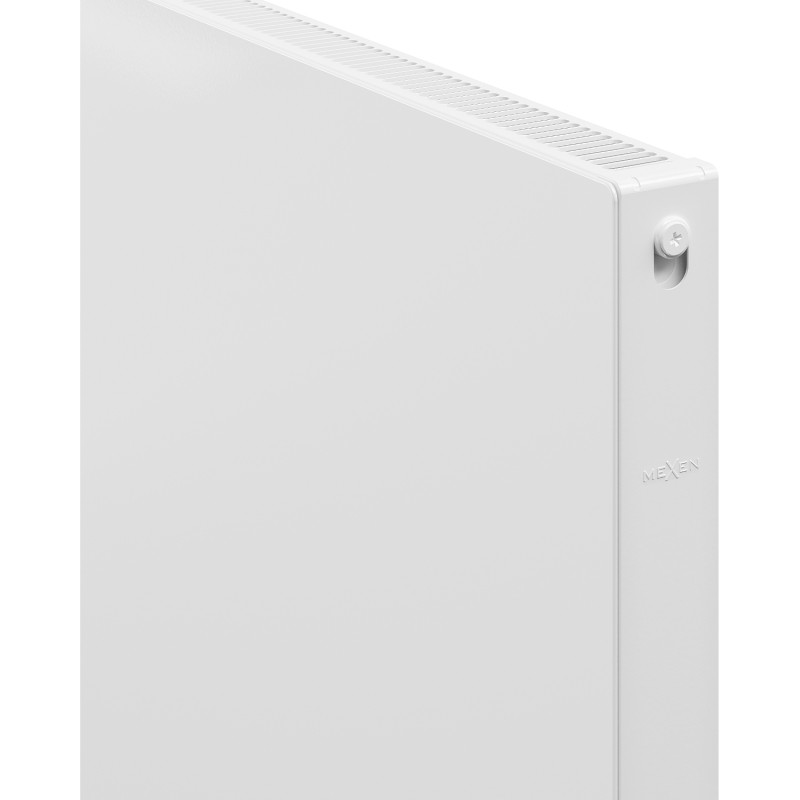

Images show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CF11
Width
900 mm
Height
600 mm
Depth
59 mm
Type
Plate / Panel
Heating power
705 W
Color
White
Material
Steel
Type
11
Installation Orientation
Universal
Connection spacing
55 cm
Connection
Side
Orientation
Horizontal
