Mexen CF11 Flat panel radiator 300 x 1400 mm, side connection, 637 W, white - W411F-030-140-00
The Mexen Flat CF11 panel radiator is a modern heating solution that combines style with functionality. With compact dimensions of 300 x 1400 mm and side connection, it fits perfectly into any interior. The white RAL 9016 color adds elegance, and the steel construction ensures durability. Heating power reaching 637 W at 75/65/20°C guarantees efficient heating. The product is equipped with hangers, installation kit, and air vent. Excellent paint quality in accordance with DIN 99500 standard, maximum operating temperature of 110°C, and operating pressure of 10 bar make it a reliable choice.
Technical data:
Height (Y): 300 mm
Width (X): 1400 mm
Depth: 59 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110°C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20°C 342 W
- 75/65/20°C 637 W
- 90/70/20°C 795 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features side cover and removable top cover
Includes: hangers, installation kit, blanking plugs, and air vent

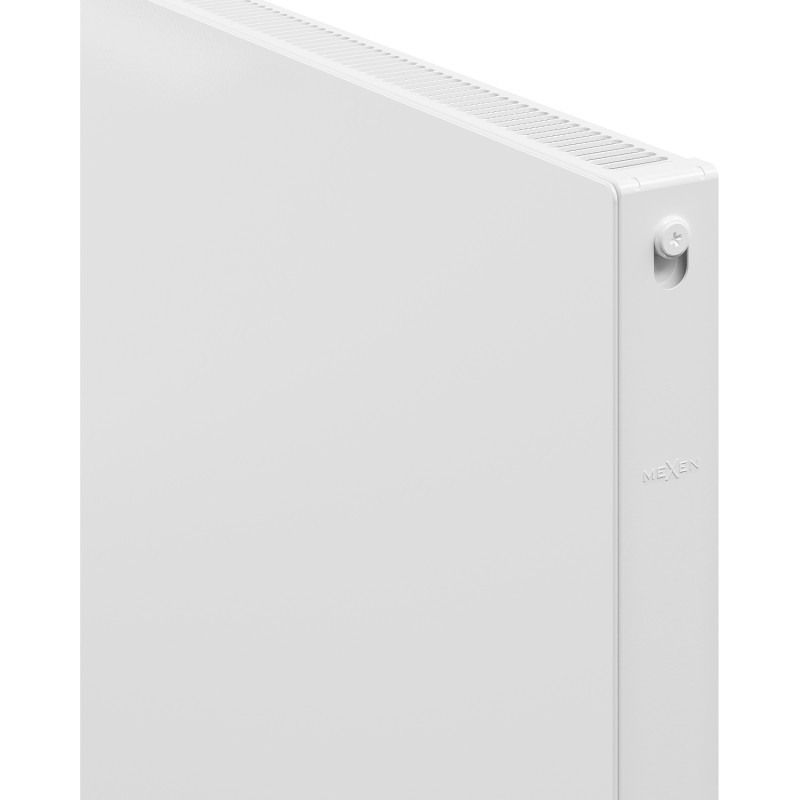

Photos show the radiator in size 600 x 1200 mm.
