Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00

Brodziki EN

Brodziki EN

(0)
Questions
(0)

Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00

Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00
search
  • Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00
  • Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00
  • Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00
  • Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00
  • Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00
  • Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00
Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00
Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00 Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00 Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00 Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00 Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00 Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00
Steel Steel
High thermal efficiency High thermal efficiency
Paint Coating: DIN 99500 Paint Coating: DIN 99500
Brand:
Mexen
Series:
CF11
Ean:
5905315803535
Index:
W411F-050-140-00
Height:
500 mm
Color:
White
Width:
1400 mm
Heating power:
955 W
Width - 1400 mm - ()
400 mm
500 mm
600 mm
700 mm
800 mm
900 mm
1000 mm
1100 mm
1200 mm
1300 mm
1400 mm
1500 mm
1600 mm
1800 mm
2000 mm
Height - 500 mm - ()
300 mm
400 mm
500 mm
600 mm
900 mm
Color - White - ()

Mexen CF11 Flat panel radiator 500 x 1400 mm, side connection, 955 W, white - W411F-050-140-00

Mexen Flat CF11 is a reliable panel radiator measuring 500 x 1400 mm with side connection, offering heating power up to 955 W. Made of high-quality steel, it ensures long-lasting performance and durability with a maximum working pressure of 10 bar and operating temperature up to 110°C. The white color RAL 9016 radiator perfectly complements any interior, and its compact dimensions (depth 59 mm) along with included mounting accessories make installation easy and quick. The package includes brackets, an installation kit, sealing plugs, and an air vent. It is an ideal solution for those looking for an effective and aesthetic heating method.

Technical data:

Height (Y): 500 mm

Width (X): 1400 mm

Depth: 59 mm

Connection spacing: 45 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 509 W

- 75/65/20 °C 955 W

- 90/70/20 °C 1196 W

Connections:

- 4xG ½" side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Includes: brackets, installation kit, sealing plugs, and air vent

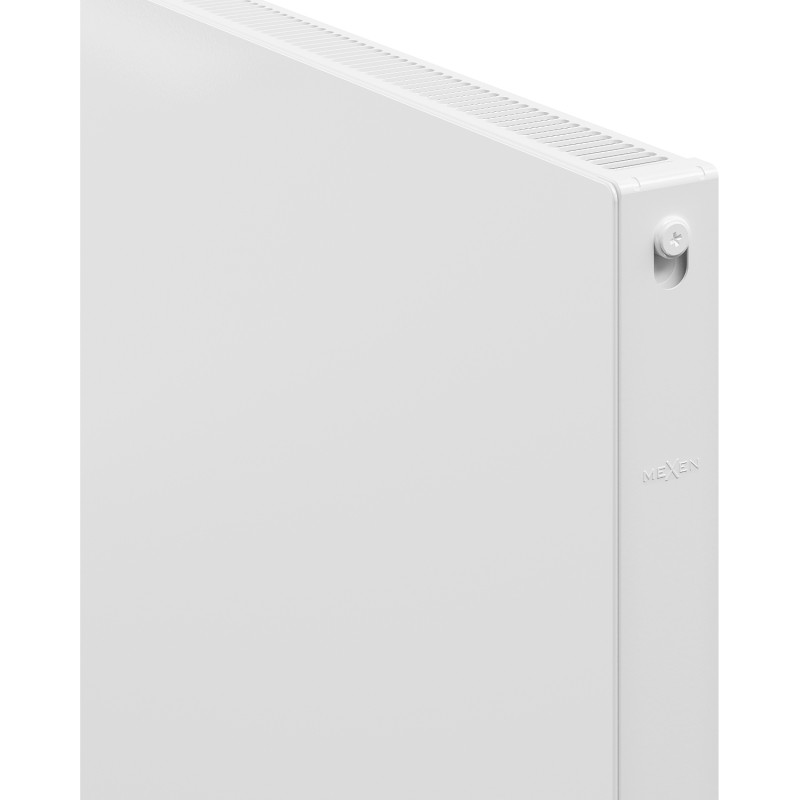

The pictures show a radiator of size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CF11
Width
1400 mm
Height
500 mm
Depth
59 mm
Type
Plate / Panel
Heating power
955 W
Color
White
Material
Steel
Type
11
Installation Orientation
Universal
Connection spacing
45 cm
Connection
Side
Orientation
Horizontal
