Mexen CF21 Flat panel radiator 600 x 1500 mm, side connection, 1814 W, white - W421F-060-150-00

The Mexen Flat CF21 600 x 1500 mm panel radiator is a versatile and efficient heating solution. With a power of 1814 W at 75/65/20 °C, it quickly heats up a room. Made of durable steel and painted according to DIN 99500 standards, it ensures long-lasting use. Its white color RAL 9016 perfectly matches modern interiors. It includes side and top protective elements and a complete installation set, making it easy to install. It withstands a maximum operating pressure of 10 bar, making it a safe choice.

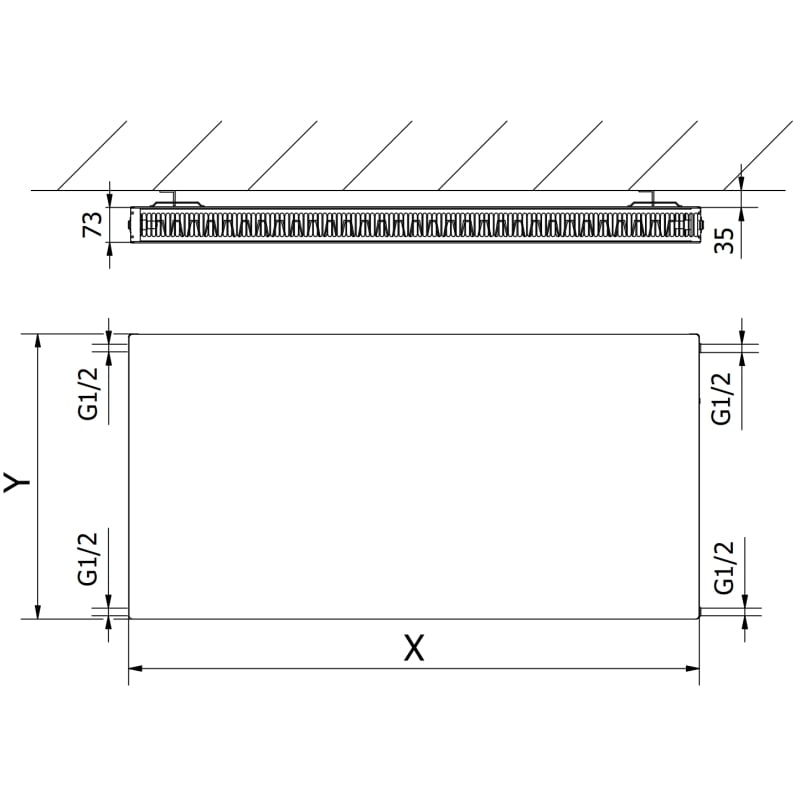

Technical data:

Height (Y): 600 mm

Width (X): 1500 mm

Depth: 73 mm

Connection spacing: 55 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 948 W

- 75/65/20 °C 1814 W

- 90/70/20 °C 2287 W

Connections:

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features side cover and detachable top cover

Includes suspensions, installation kit, sealing plugs, and air vent

The photos show the radiator in the size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CF21
Width
1500 mm
Height
600 mm
Depth
73 mm
Type
Plate / Panel
Heating power
1814 W
Color
White
Material
Steel
Type
21
Installation Orientation
Universal
Connection spacing
55 cm
Connection
Side
Orientation
Horizontal
