Mexen CF22 Flat panel radiator 500 x 1100 mm, side connection, 1501 W, white - W422F-050-110-00
Mexen Flat CF22 is a modern panel radiator with dimensions of 500 x 1100 mm, combining style and functionality. With a high heating power of up to 1501 W at a temperature of 75/65/20 °C, it quickly heats up rooms. Made of durable steel, it is in an aesthetic white color RAL 9016. It features a max operating temperature of 110 °C and a working pressure of 10 bar. Equipped with side connections and a complete mounting set, it meets the expectations of the most demanding users.
Technical data:

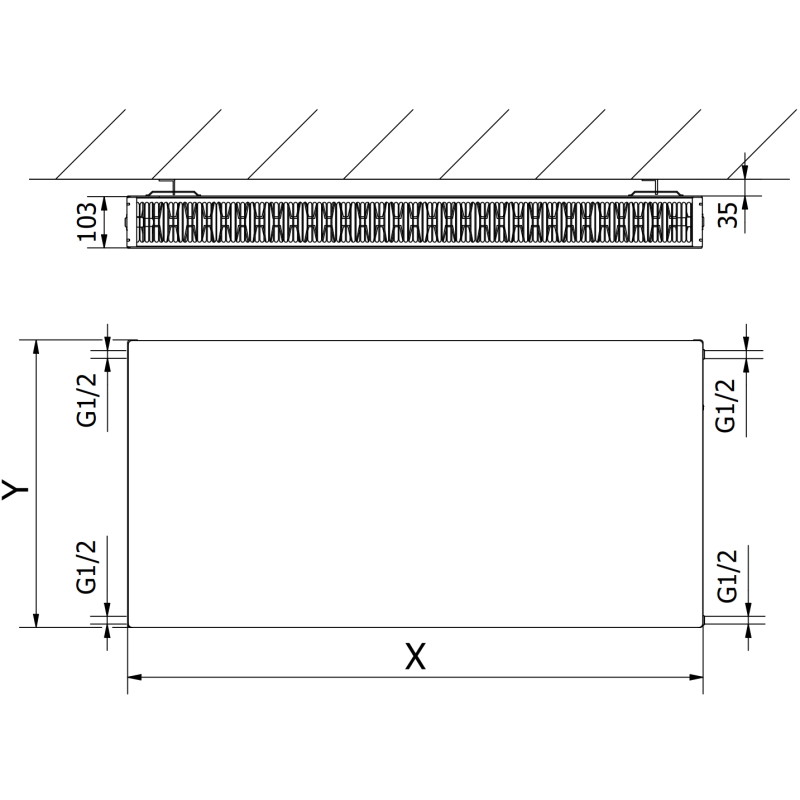

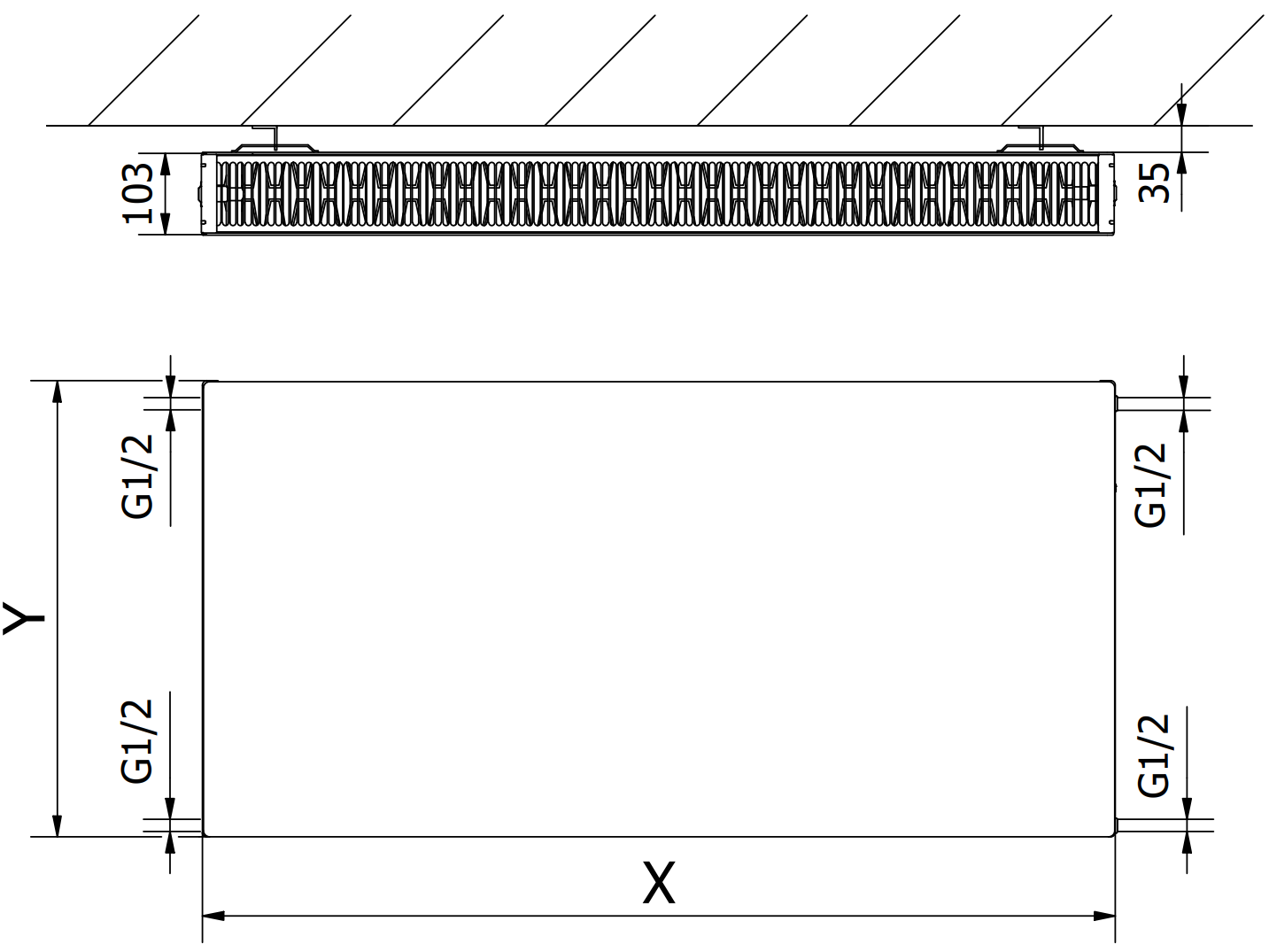

Height (Y): 500 mm
Width (X): 1100 mm
Depth: 103 mm
Connection spacing: 45 cm

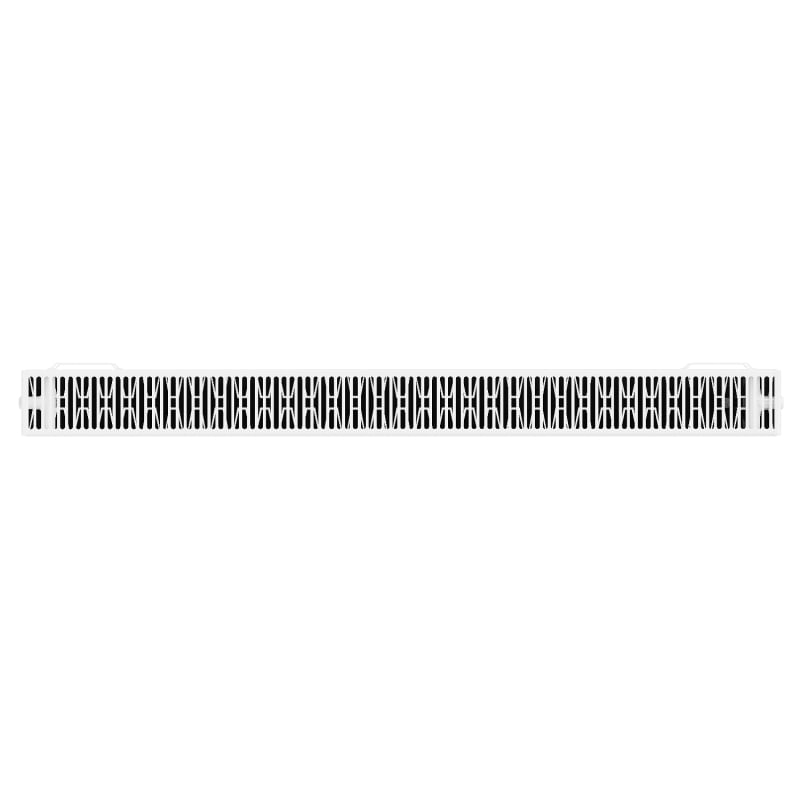

Spacing of vertical water channels: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 786 W
- 75/65/20 °C 1501 W
- 90/70/20 °C 1891 W
Connections:
- 4xG ½″ side/
High-quality, durable paint coating - DIN 99500

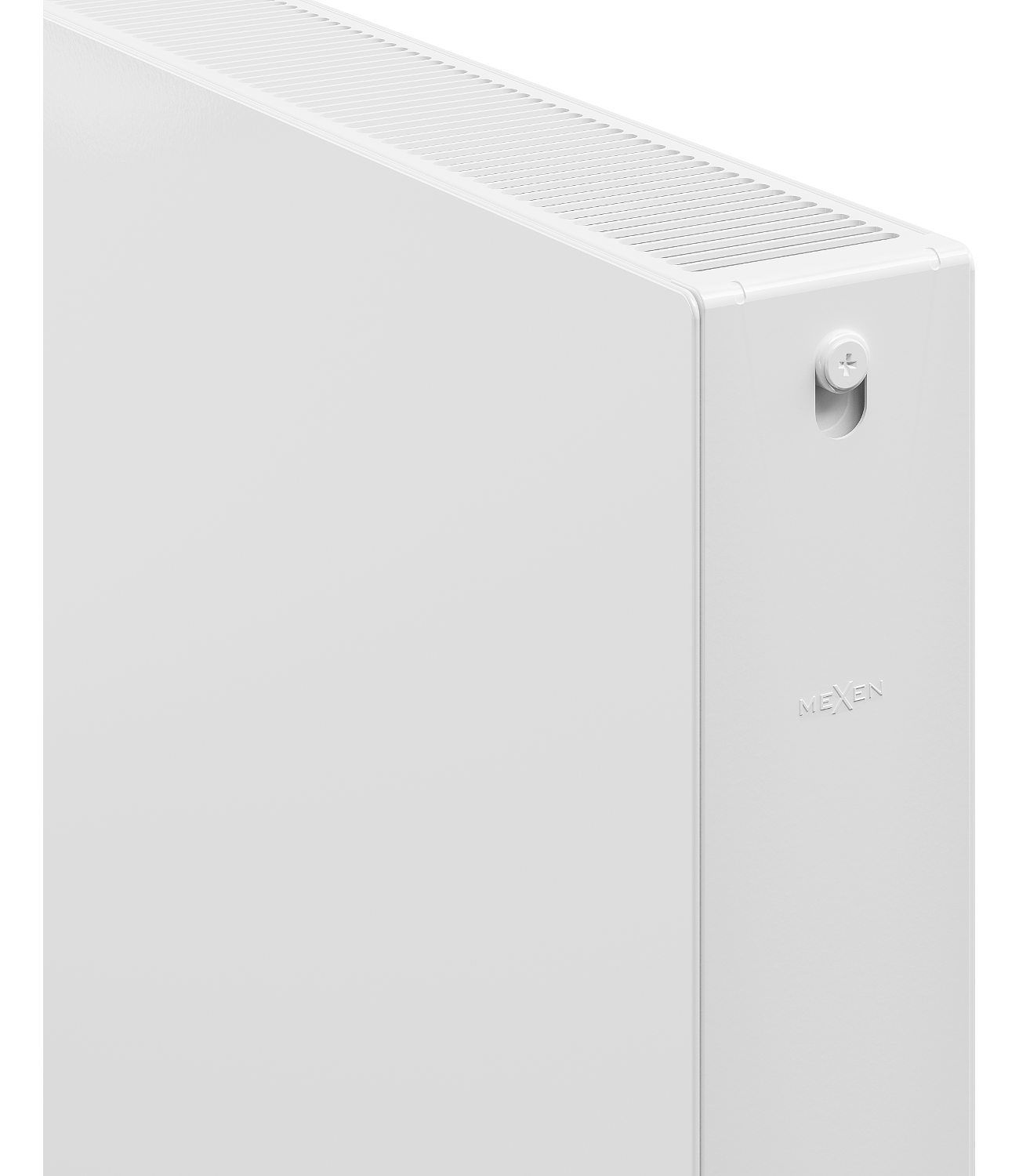

Features a side cover and removable top cover
Includes: hangers, installation set, sealing plugs, and air vent

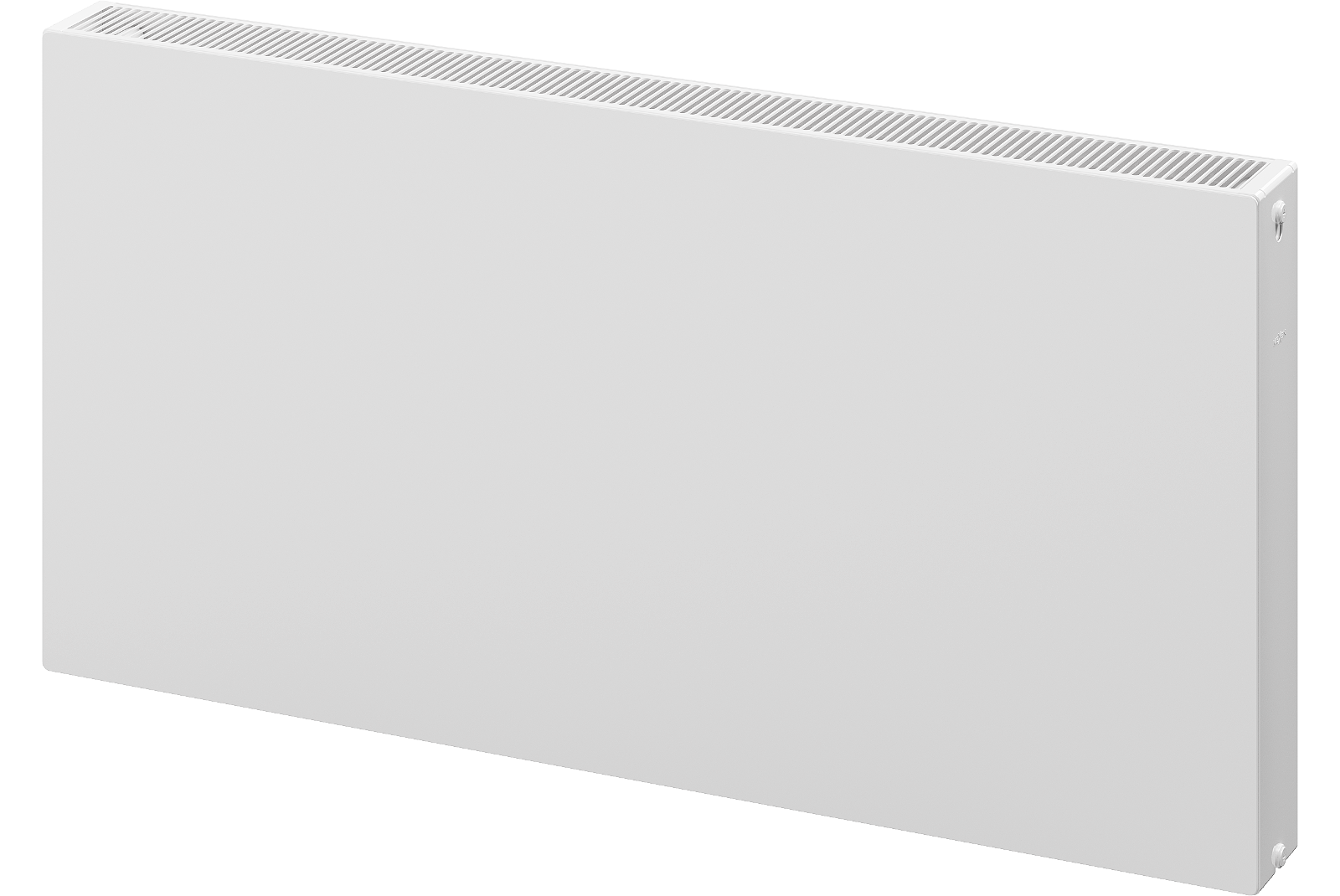

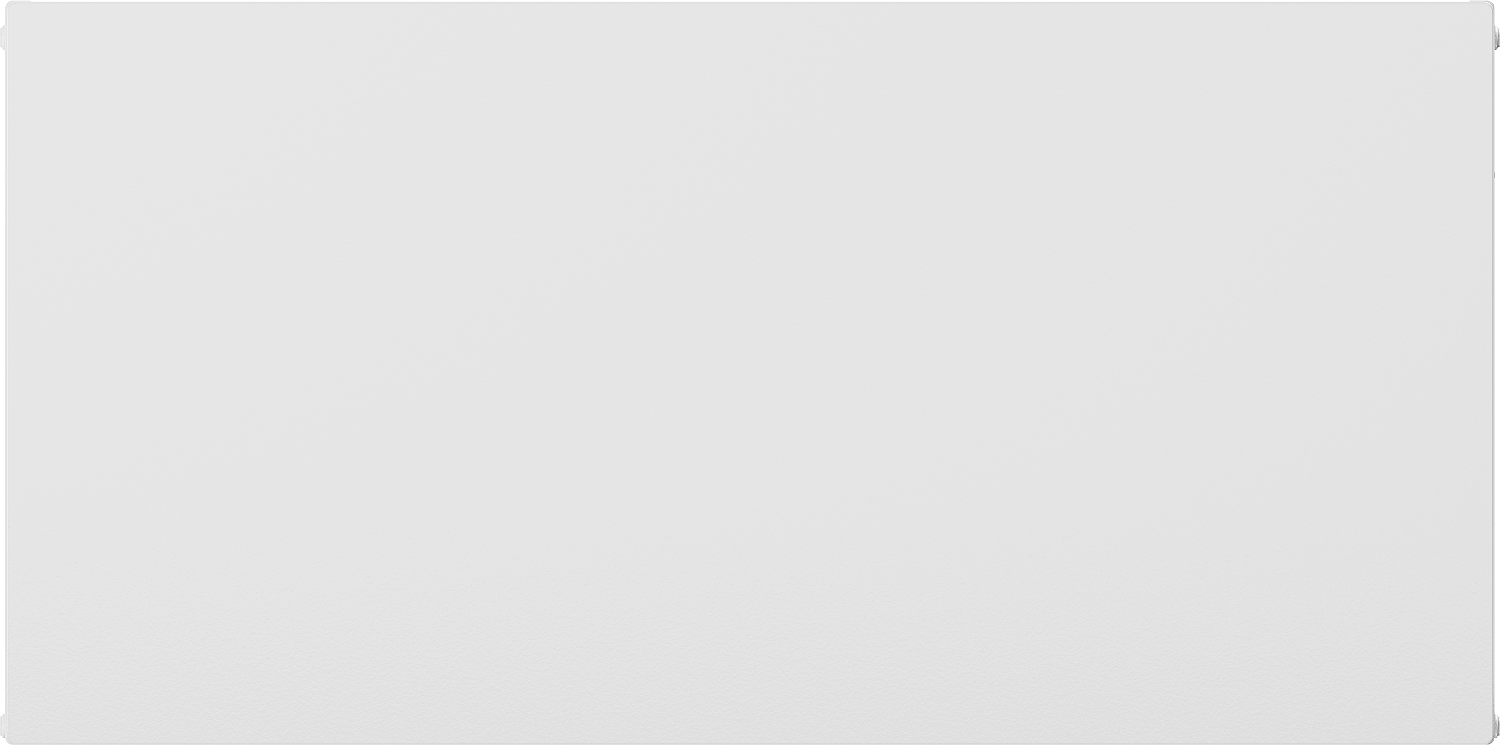

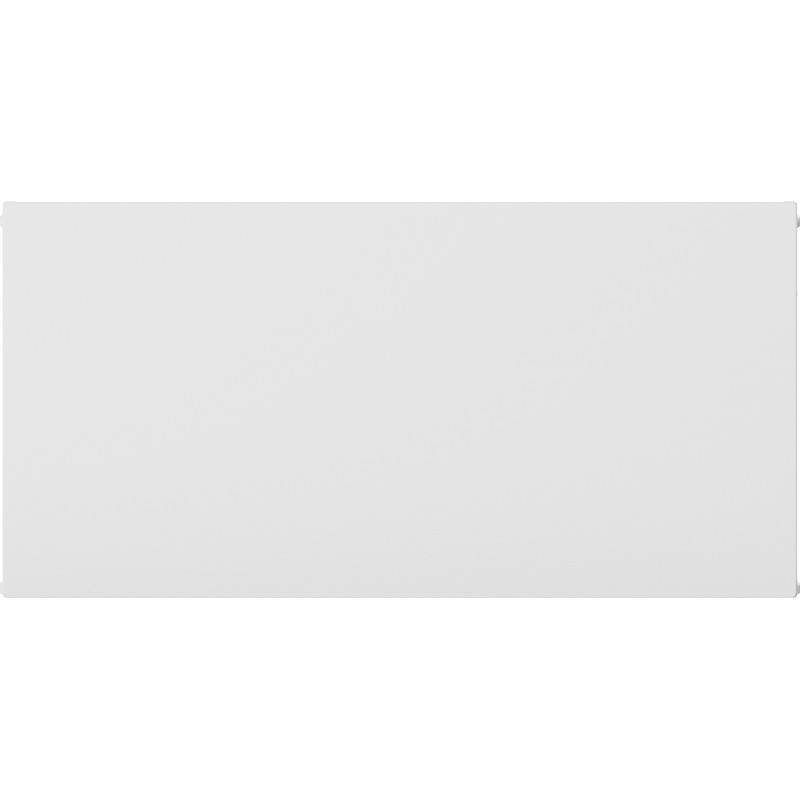

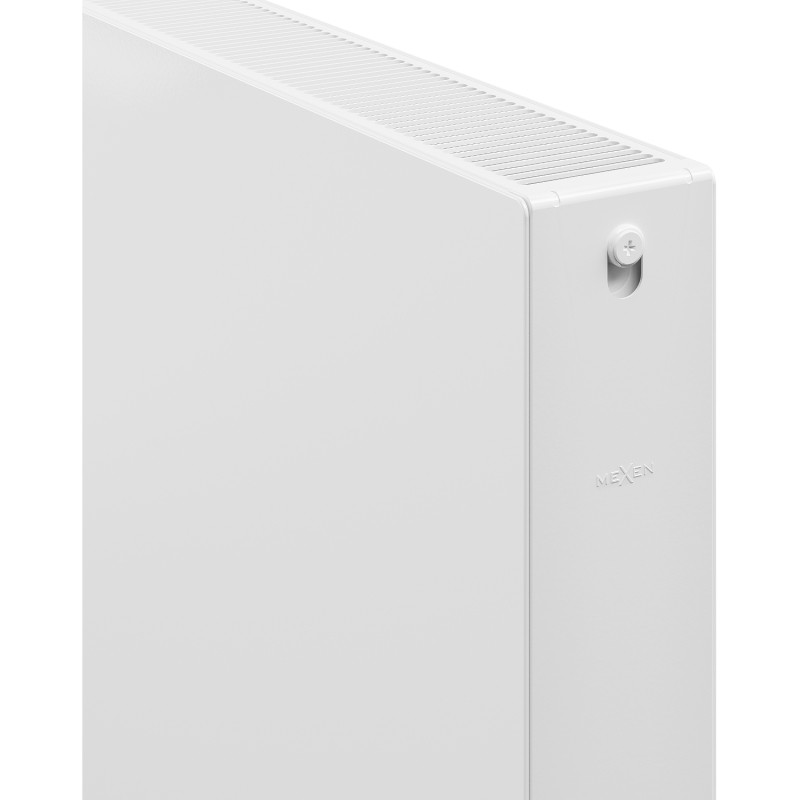

Photos show the radiator in size 600 x 1200 mm.
