Mexen CF22 Flat panel radiator 500 x 700 mm, side connection, 955 W, anthracite - W422F-050-070-66
Mexen Flat CF22 is an elegant flat panel radiator measuring 500 x 700 mm with a side connection, offering heating power up to 955 W. Made of high-quality steel in anthracite color, it provides durability and a modern look. With operating temperatures up to 110 °C and maximum working pressure of 10 bar, it is an ideal choice for various interiors. The set includes hangers, installation kit, sealing plugs, and air vent. The product is distinguished by a durable paint coating in accordance with DIN 99500 and a removable top cover.
Technical data:
Height (Y): 500 mm
Width (X): 700 mm
Depth: 103 mm
Connection spacing: 45 cm
Spacing of vertical water channels: 33.3 mm
Color: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 500 W
- 75/65/20 °C 955 W
- 90/70/20 °C 1203 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features side cover and removable top cover
Includes: hangers, installation kit, sealing plugs, and air vent

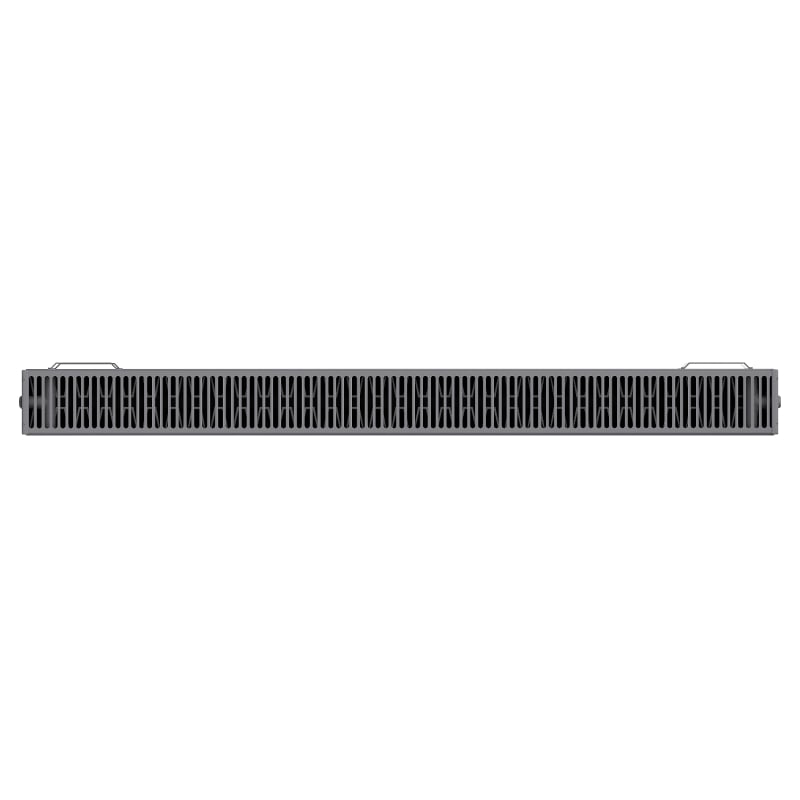

The photos show the radiator in size 600 x 1200 mm.
