Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50

  • Mexen in Black
Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50
search
  • Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50
  • Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50
  • Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50
Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50
Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50 Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50 Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G00
Ean:
5905315237248
Index:
W903-900-909-50
Colour:
Gold
Connection diameter:
G 1/2"
Type:
Axial
Series:
G00
Colour - Gold - ()

Mexen G00 axial thermostatic set with cover S, gold - W903-900-909-50

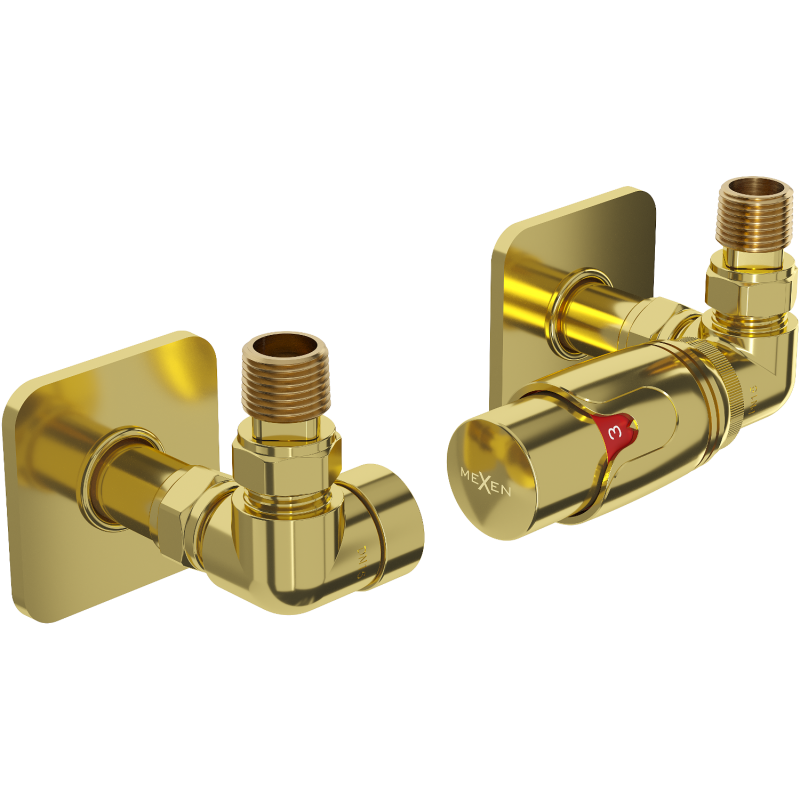

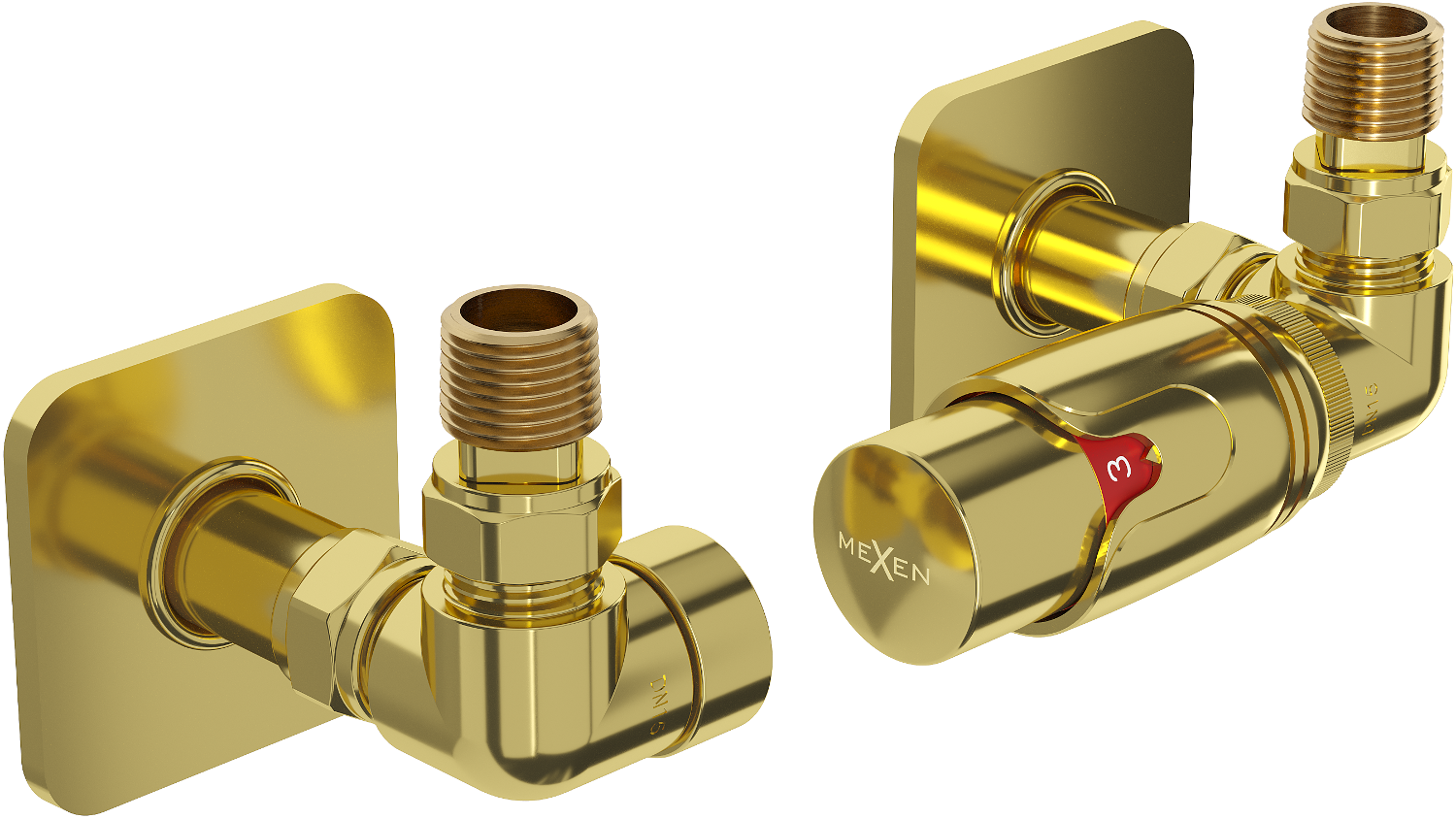

The Mexen G00 axial thermostatic set with cover S, gold provides excellent performance and an elegant appearance. Made of high-quality brass, it guarantees durability and resistance to high temperatures up to 120°C and working pressure up to 10 bar. The set includes a supply and shut-off radiator valve, allowing for precise temperature regulation in the range of 0-29°C. The gold colour and stainless steel used in the cover ensure an aesthetic and modern look, perfectly complementing any interior.

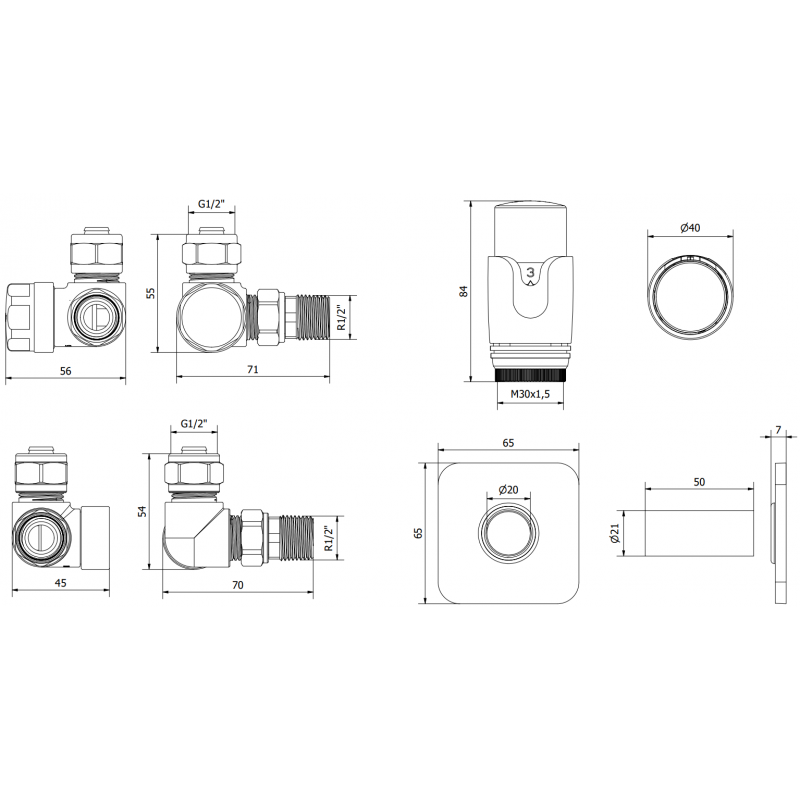

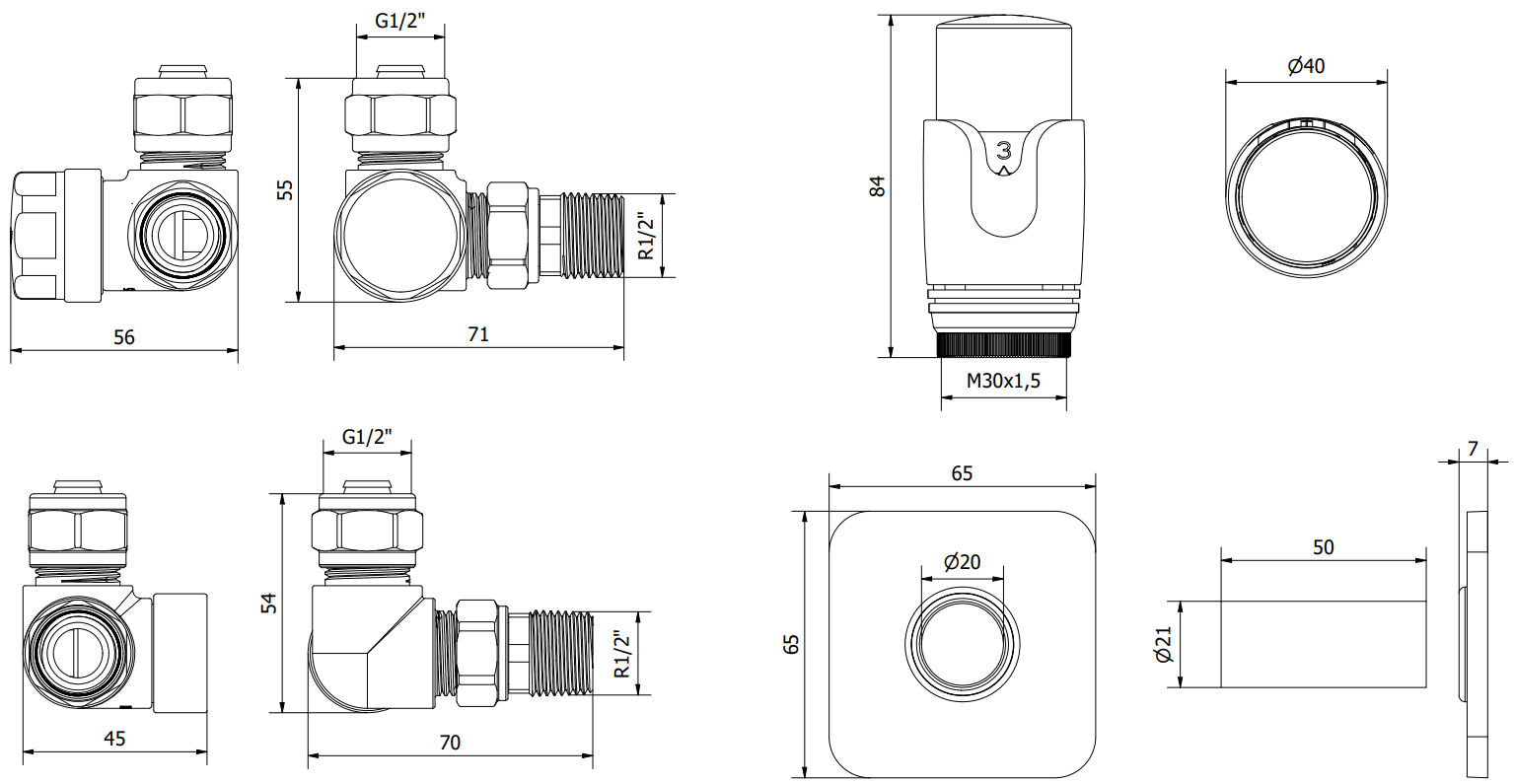

Technical specifications:

Valve material: Brass

Valve colour: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: Gold

Escutcheon material: Stainless steel

Escutcheon width: 65 mm

Escutcheon height: 7 mm

Internal hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

The cover consists of two single escutcheons and a sleeve

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Axial
Colour
Gold
Connection diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See
