Mexen G03 DN50 Dual-Pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-938-01

Black Week EN

Black Week EN

(0)
Questions
(0)

Mexen G03 DN50 Dual-Pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-938-01

  • Mexen in Black
Mexen G03 DN50 Dual-Pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-938-01
search
  • Mexen G03 DN50 Dual-Pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-938-01
  • Mexen G03 DN50 Dual-Pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-938-01
Mexen G03 DN50 Dual-Pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-938-01
Mexen G03 DN50 Dual-Pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-938-01 Mexen G03 DN50 Dual-Pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-938-01
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G03
Ean:
5905315237668
Index:
W911-016-938-01
Connection diameter:
G 1/2"
Type:
Angular
Colour:
Nickel
Series:
G03

Mexen G03 DN50 Dual-Pipe Thermostatic Set, Angled 1/2"x16 mm, Nickel - W911-016-938-01

The Mexen G03 DN50 dual-pipe thermostatic set angled 1/2"x16 mm, nickel is an excellent choice for precise temperature control. Made of high-quality brass and nickel-plated, it guarantees durability and a modern look. The product features a maximum working temperature of up to 120°C and an operating pressure of up to 10 bar. It includes a heating valve for supply and shut-off and provides frost protection. Its regulation scale is 0-5, and a significant temperature adjustment range from 0 to 29°C ensures optimal control.

Technical Specifications:

Valve Material: Brass

Valve Colour: Nickel

Connector Diameter: G 1/2" and pex 16x2 mm

Working Temperature: max 120 °C

Maximum Operating Pressure: 10 bar

Heating valve for supplying and shutting off

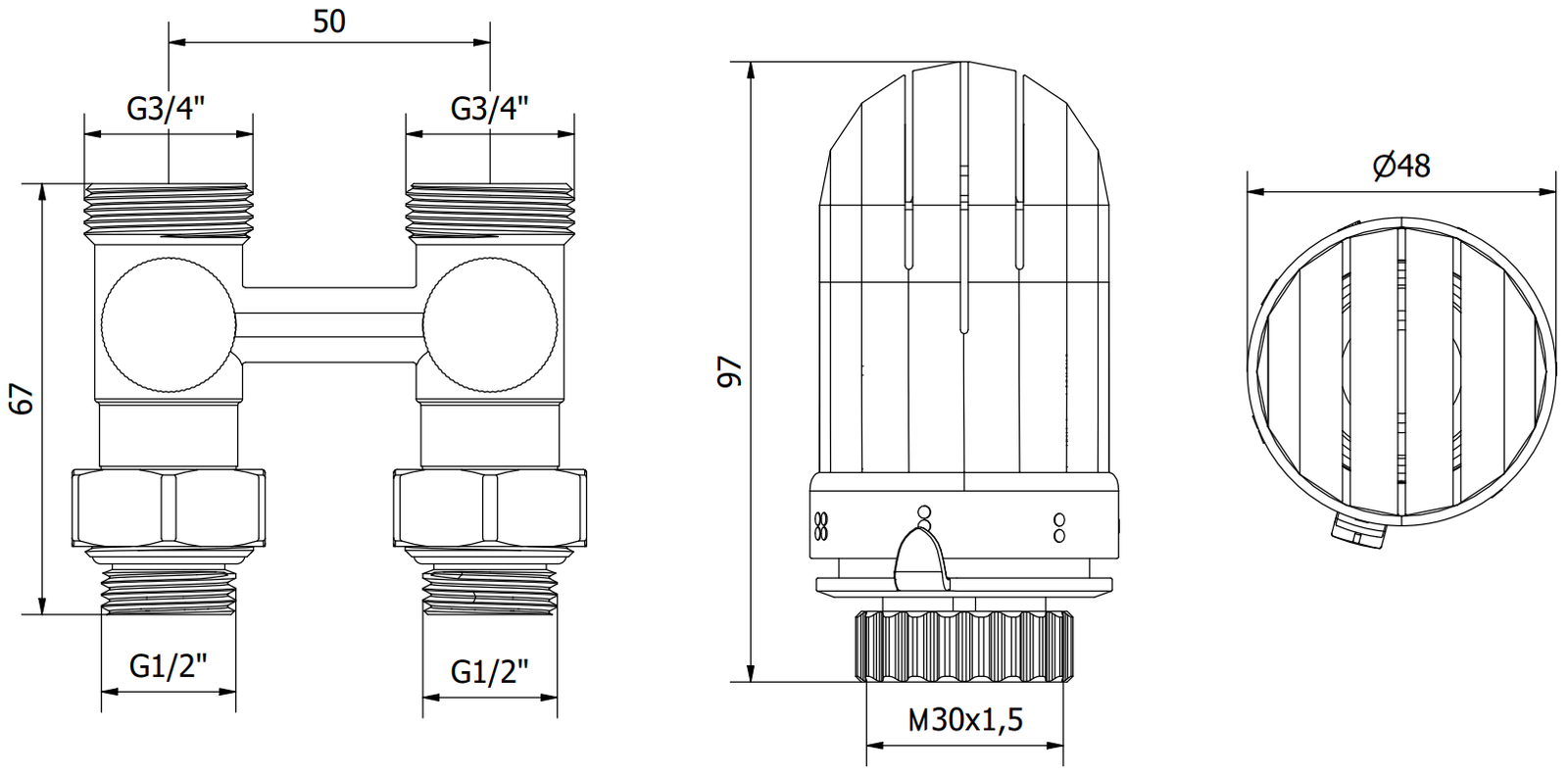

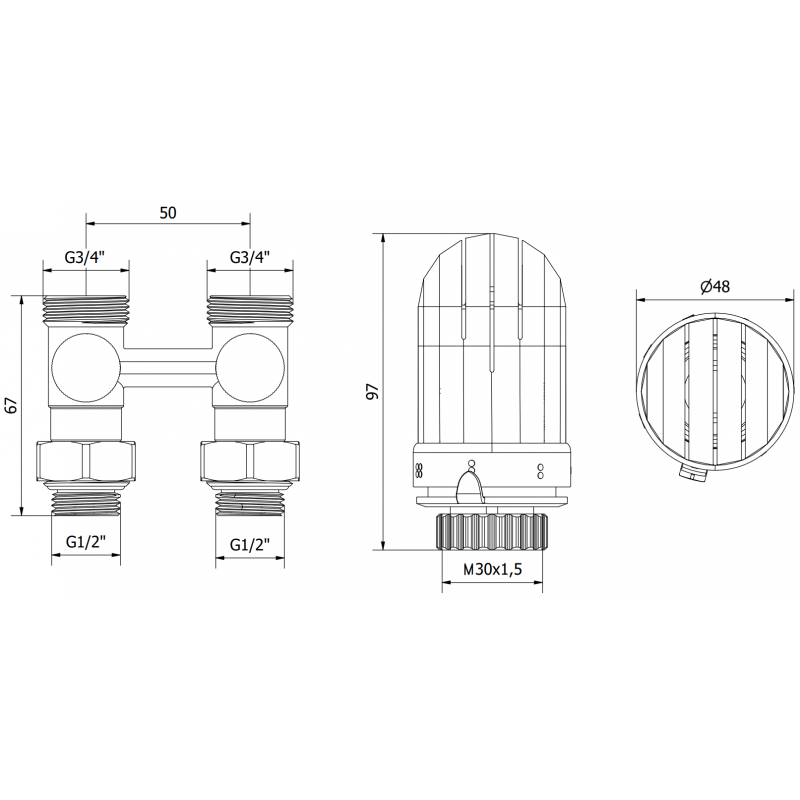

Bottom connection with 50 mm spacing

Head Thread: M30 x 1.5 mm

Head Colour: White

Regulation Scale: 0-5

Temperature Adjustment Range: 0-29 °C

Ambient Temperature: max 50 °C

Frost Protection 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G03
Type
Angular
Colour
Nickel
Connection diameter
G 1/2"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
