Mexen G03 twin-pipe thermostatic set DN50, angled 1/2"x3/4", nickel - W911-012-938-01

Mexen G03 is a twin-pipe thermostatic set DN50 with an angled shape, made of brass and finished in nickel colour. It offers convenient G 1/2" and G 3/4" connections and excellent temperature regulation with a range of 0-29°C and a scale of 0-5. Additionally, it features a head thread M30 x 1.5 mm and frost protection at 5°C. Ideal for installations with a maximum working pressure of 10 bar and an operating temperature of up to 120°C.

Technical data:

Valve material: Brass

Valve colour: Nickel

Valve connection diameter: G 1/2" and G 3/4"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

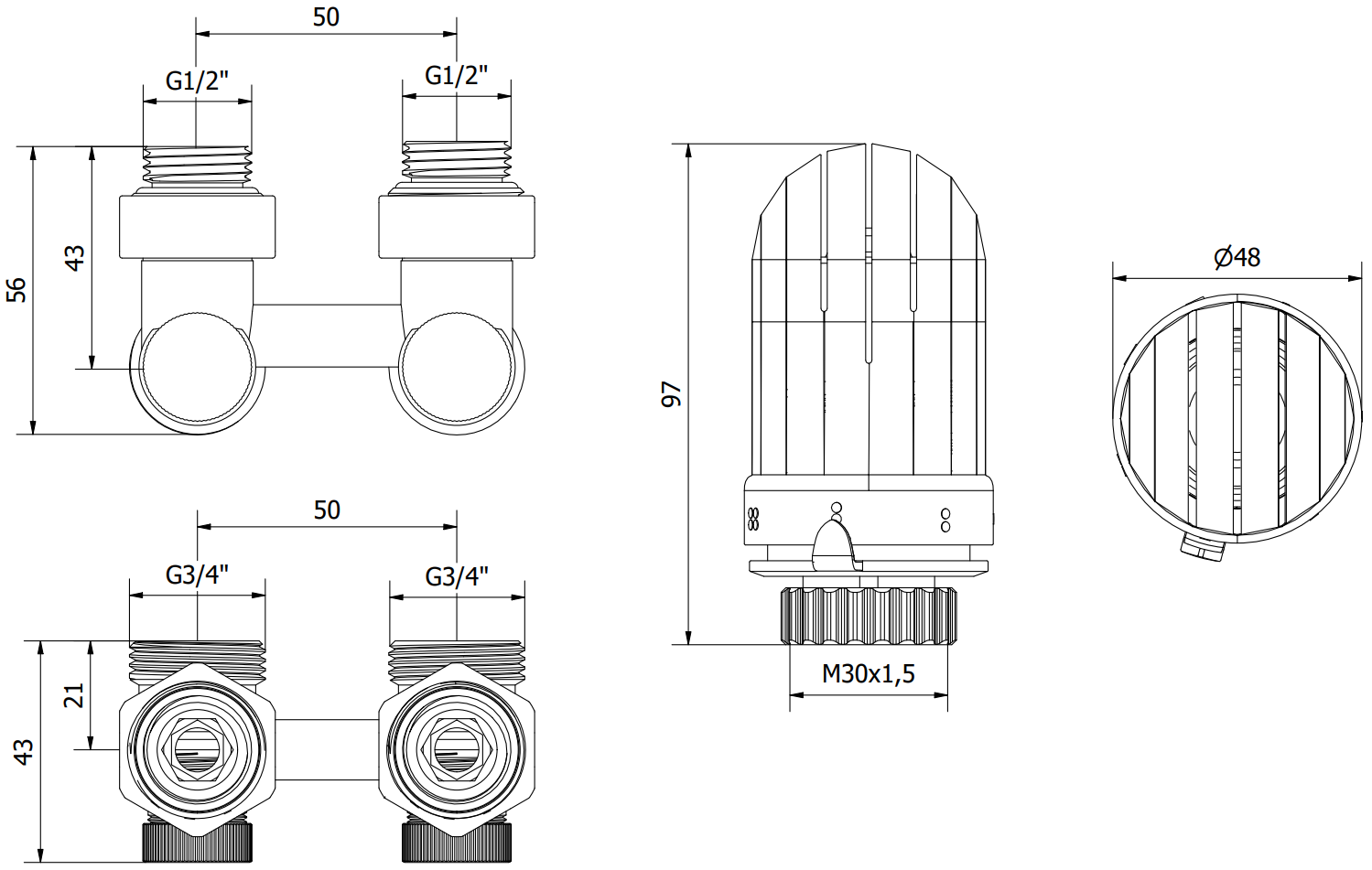

Bottom connection with a 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is suitable for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G03
Type
Angular
Colour
Nickel
Connection diameter
G 1/2" , G 3/4"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
