Mexen G03 straight thermostatic set, nickel - W914-012-938-01

Mexen G03 straight thermostatic set, nickel - W914-012-938-01
search
  • Mexen G03 straight thermostatic set, nickel - W914-012-938-01
  • Mexen G03 straight thermostatic set, nickel - W914-012-938-01
Mexen G03 straight thermostatic set, nickel - W914-012-938-01
Mexen G03 straight thermostatic set, nickel - W914-012-938-01 Mexen G03 straight thermostatic set, nickel - W914-012-938-01
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Series:
G03
Ean:
5905315237187
Index:
W914-012-938-01
Type:
Straight
Series:
G03
Color:
Nickel
Connection diameter:
G 1/2"

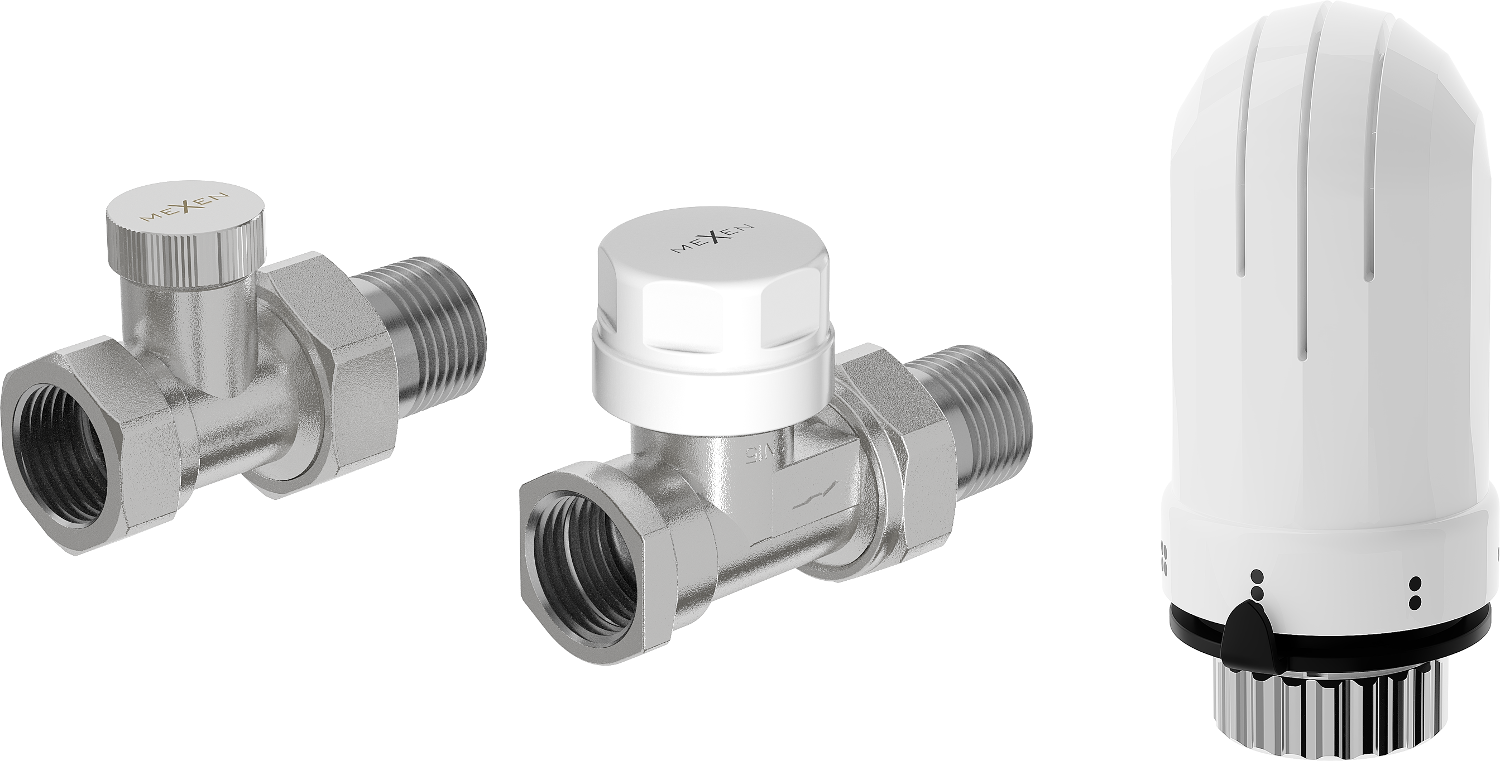

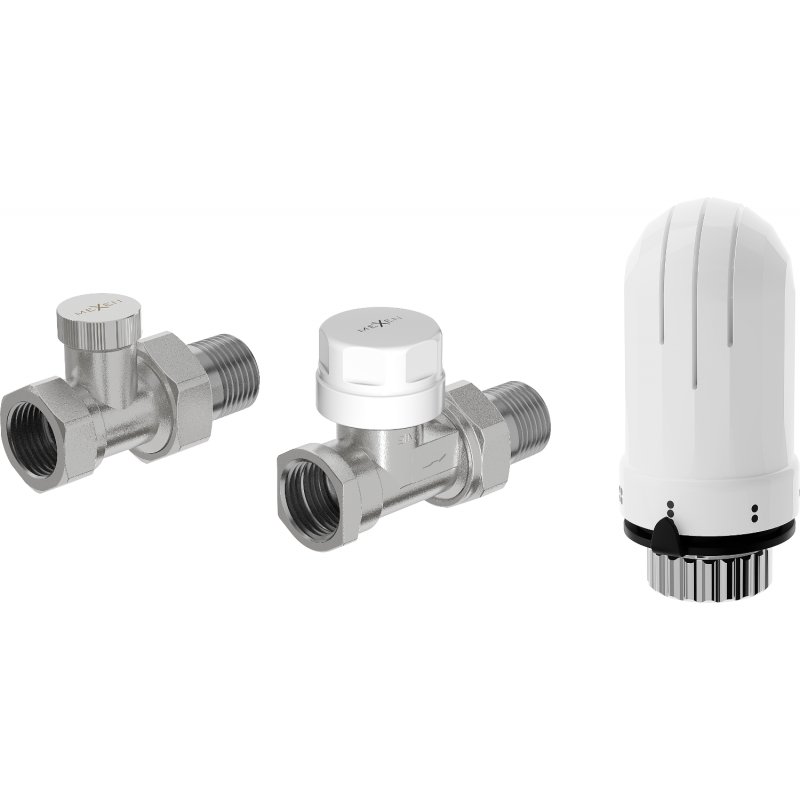

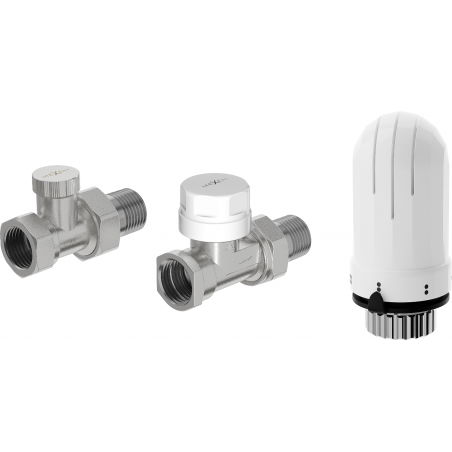

Mexen G03 straight thermostatic set, nickel - W914-012-938-01

The Mexen G03 straight thermostatic set, nickel, is a high-quality product made of brass, ensuring durability and reliability. The nickel color and white head add elegance. The set supports an operating temperature of up to 120°C and an operating pressure of up to 10 bar, ensuring safety and efficiency. It includes supply and cut-off valves, allowing for easy installation and efficient temperature regulation in the range of 0-29°C. An ideal choice for modern heating systems.

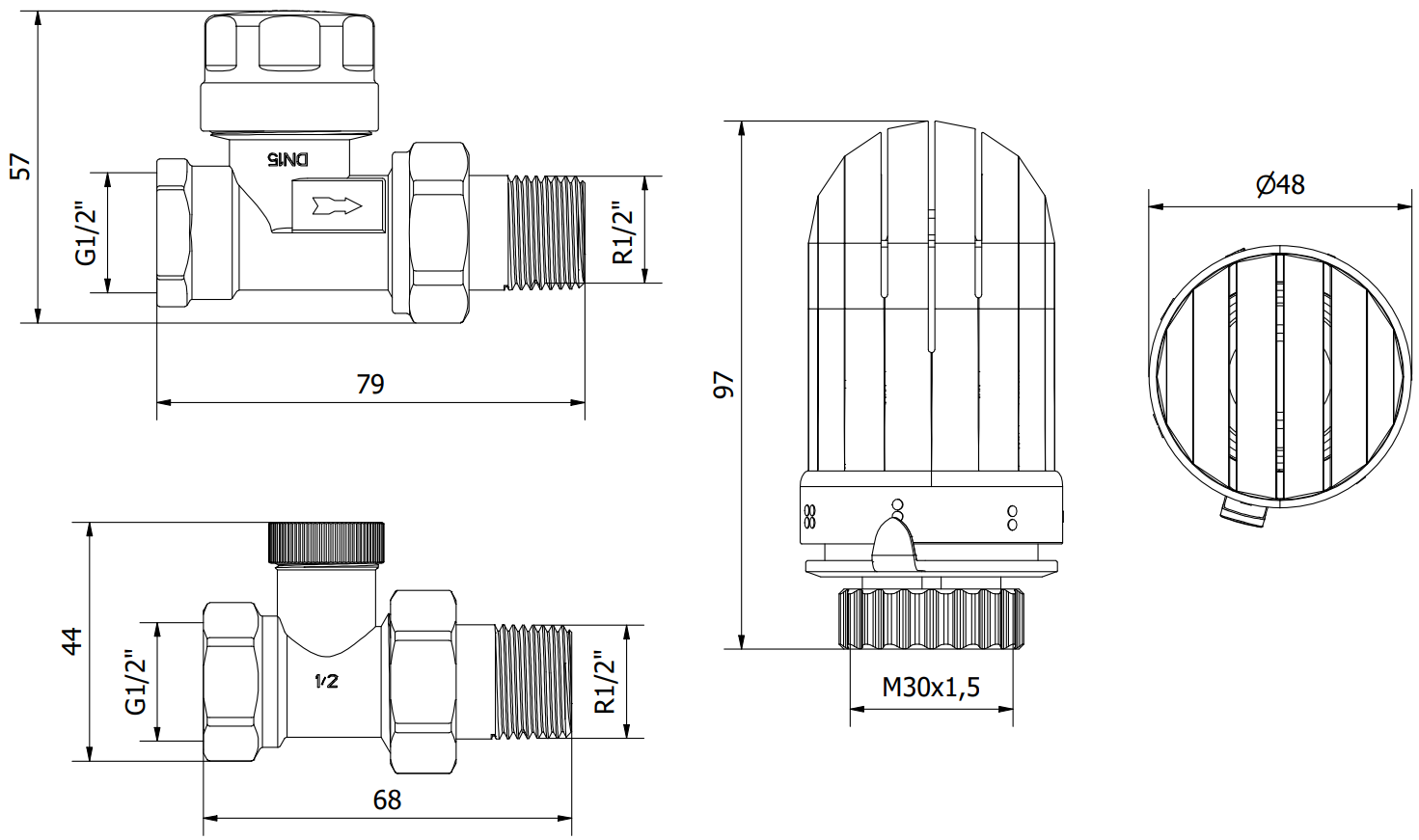

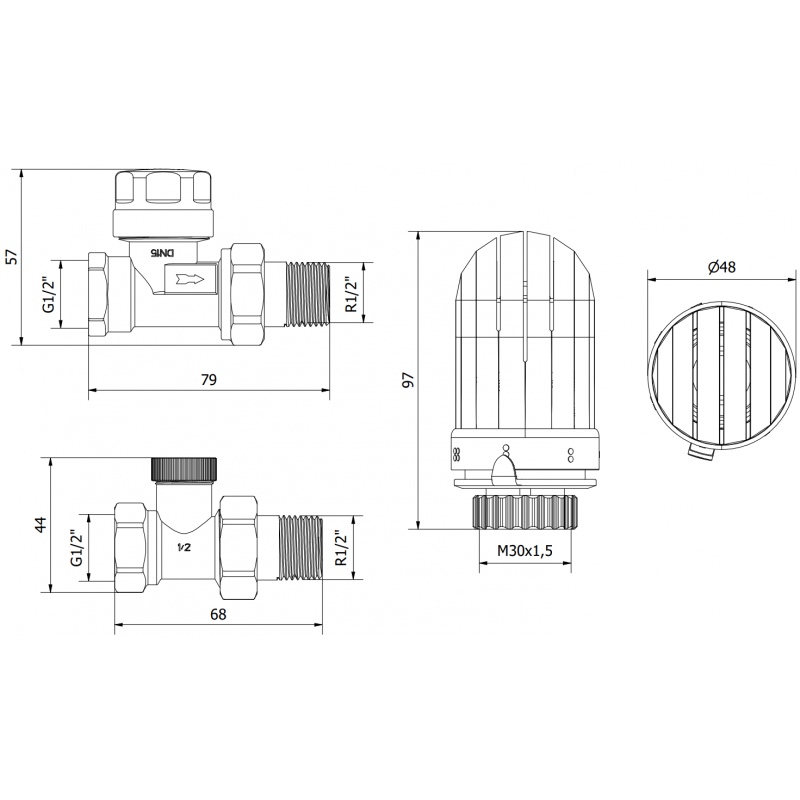

Technical data:

Valve material: Brass

Valve color: Nickel

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

The set includes a supply and cut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G03
Type
Straight
Color
Nickel
Connection diameter
G 1/2"
Cover
No
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
Manufacturer
See

Haven't found the answer?

Write to us

See more questions
The product has no opinion yet. Leave your opinion!
