Mexen G03 DN50 Two-pipe Thermostatic Set, Straight 1/2"x16 mm, Nickel - W912-016-938-01

  • Mexen in Black
Mexen G03 DN50 Two-pipe Thermostatic Set, Straight 1/2"x16 mm, Nickel - W912-016-938-01
search
  • Mexen G03 DN50 Two-pipe Thermostatic Set, Straight 1/2"x16 mm, Nickel - W912-016-938-01
  • Mexen G03 DN50 Two-pipe Thermostatic Set, Straight 1/2"x16 mm, Nickel - W912-016-938-01
Mexen G03 DN50 Two-pipe Thermostatic Set, Straight 1/2"x16 mm, Nickel - W912-016-938-01
Mexen G03 DN50 Two-pipe Thermostatic Set, Straight 1/2"x16 mm, Nickel - W912-016-938-01 Mexen G03 DN50 Two-pipe Thermostatic Set, Straight 1/2"x16 mm, Nickel - W912-016-938-01
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G03
Ean:
5905315238092
Index:
W912-016-938-01
Connection diameter:
G 1/2"
Type:
Straight
Colour:
Nickel
Series:
G03

Mexen G03 DN50 Two-pipe Thermostatic Set, Straight 1/2"x16 mm, Nickel - W912-016-938-01

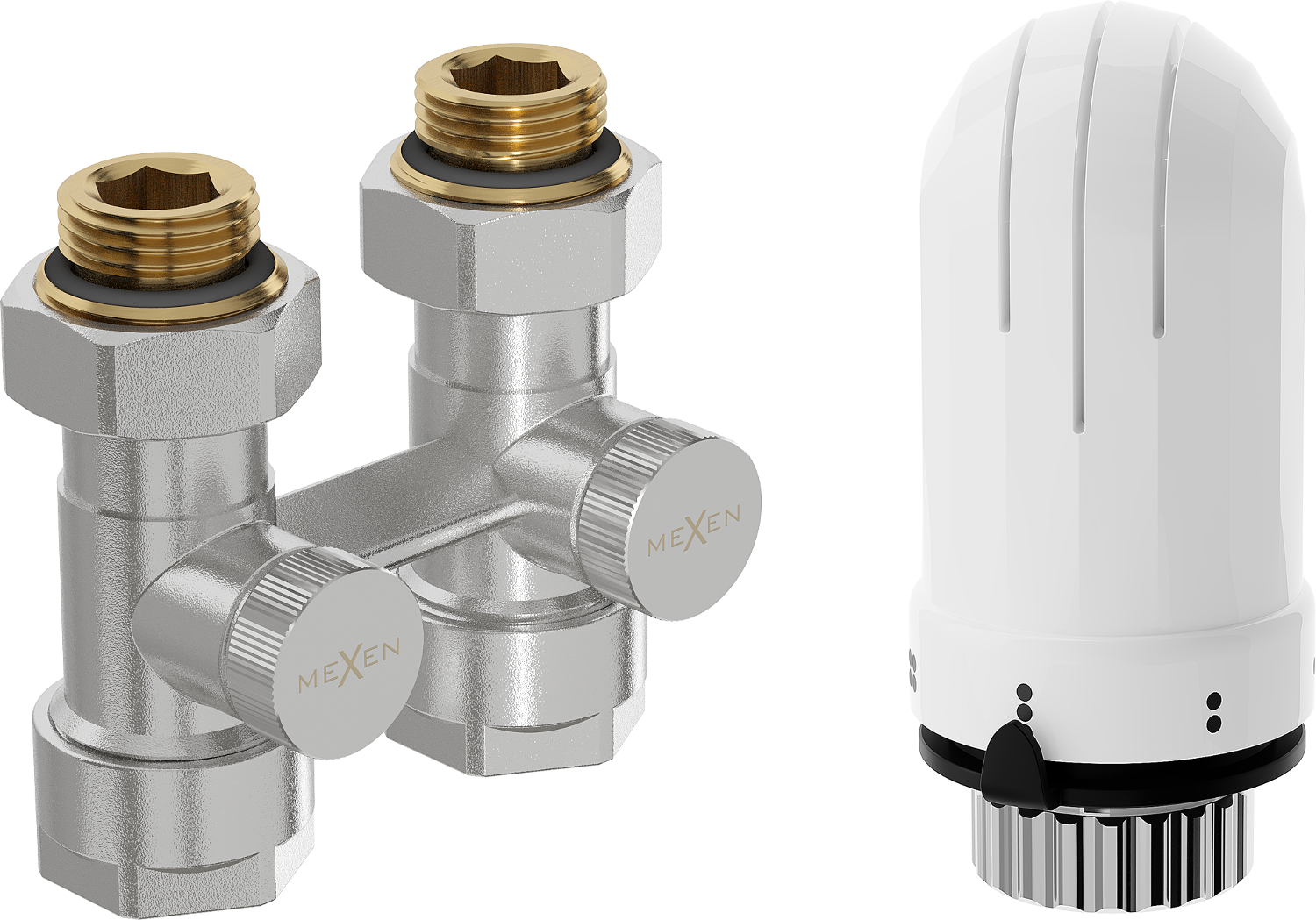

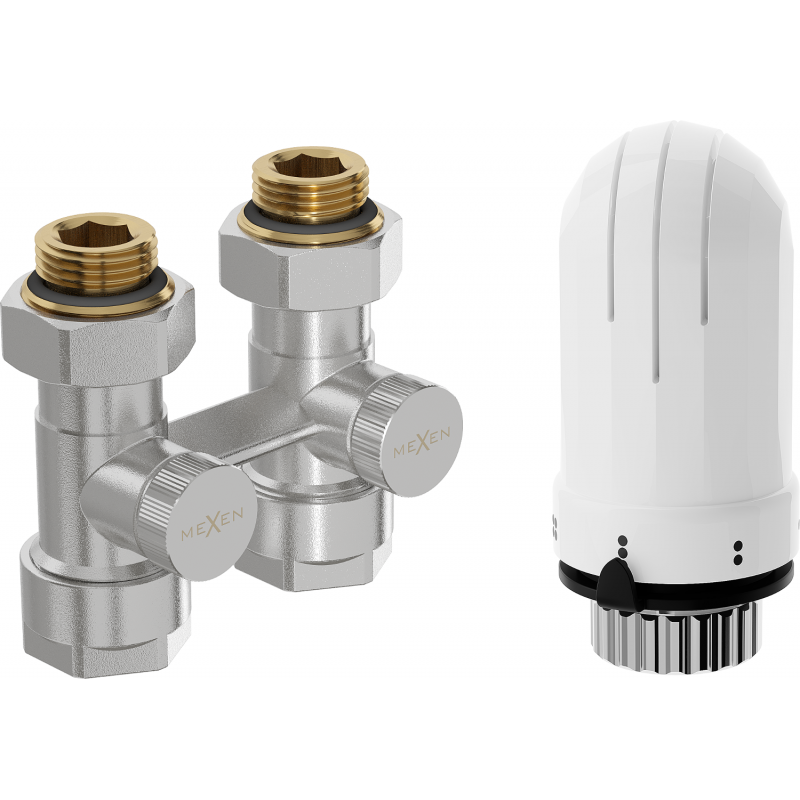

The Mexen G03 DN50 two-pipe thermostatic set offers exceptional performance due to the use of high-quality materials such as brass and a modern design in nickel colour. The product features a connection diameter of G 1/2" and pex 16x2 mm, maximum operating temperature of 120 °C, and working pressure up to 10 bar. The set includes a supply and cut-off radiator valve, with an adjustment scale from 0 to 5 and frost protection at a temperature of 5°C.

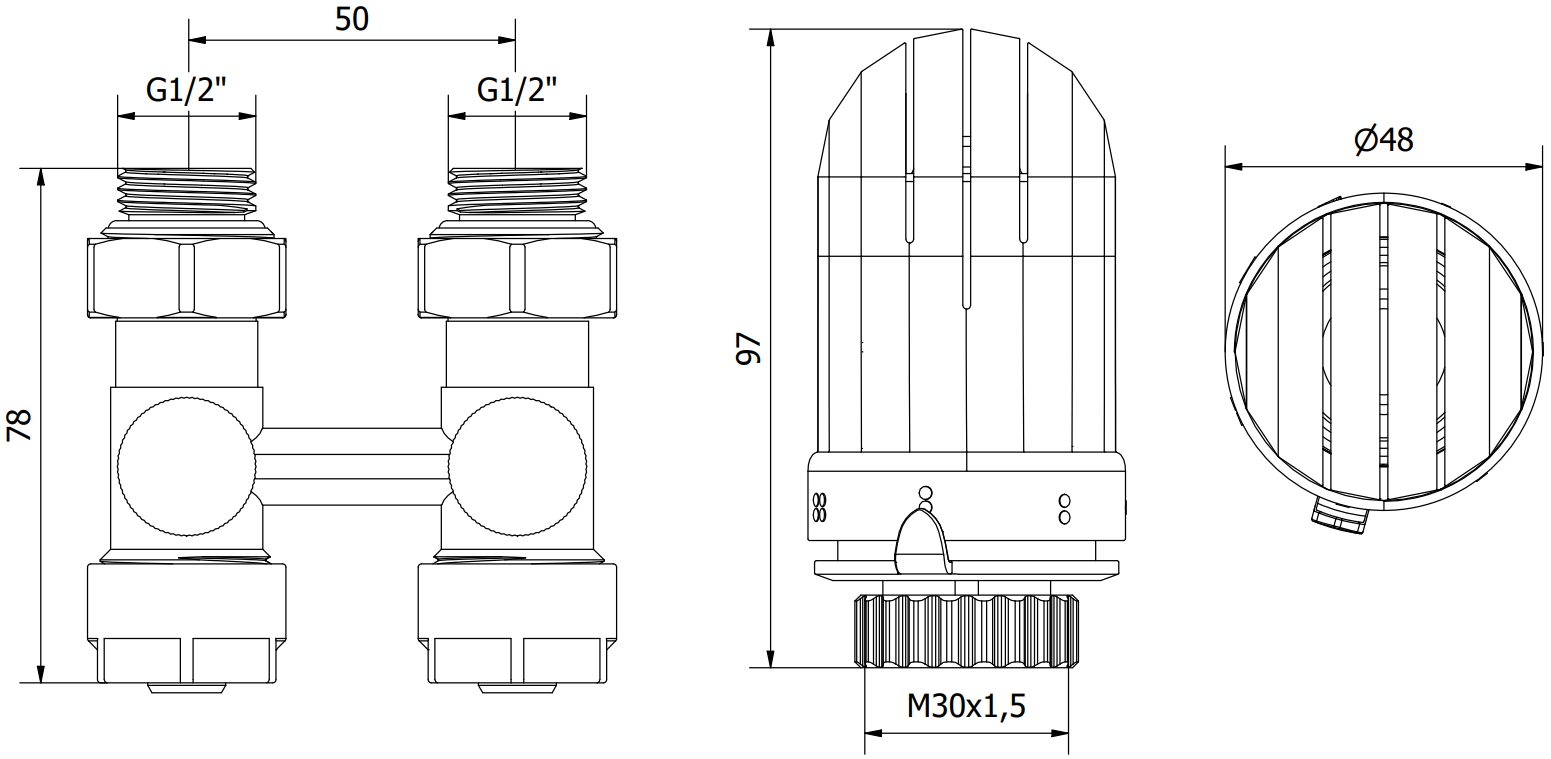

Technical specifications:

Valve material: Brass

Valve colour: Nickel

Connection diameter: G 1/2" and pex 16x2 mm

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and cut-off radiator valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection at 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G03
Type
Straight
Colour
Nickel
Connection diameter
G 1/2"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
