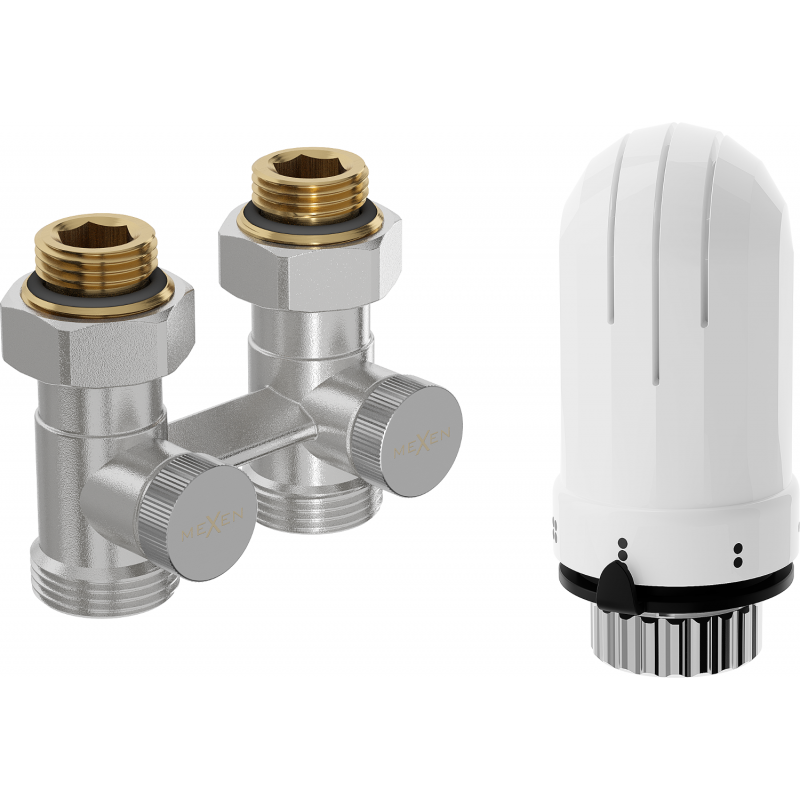

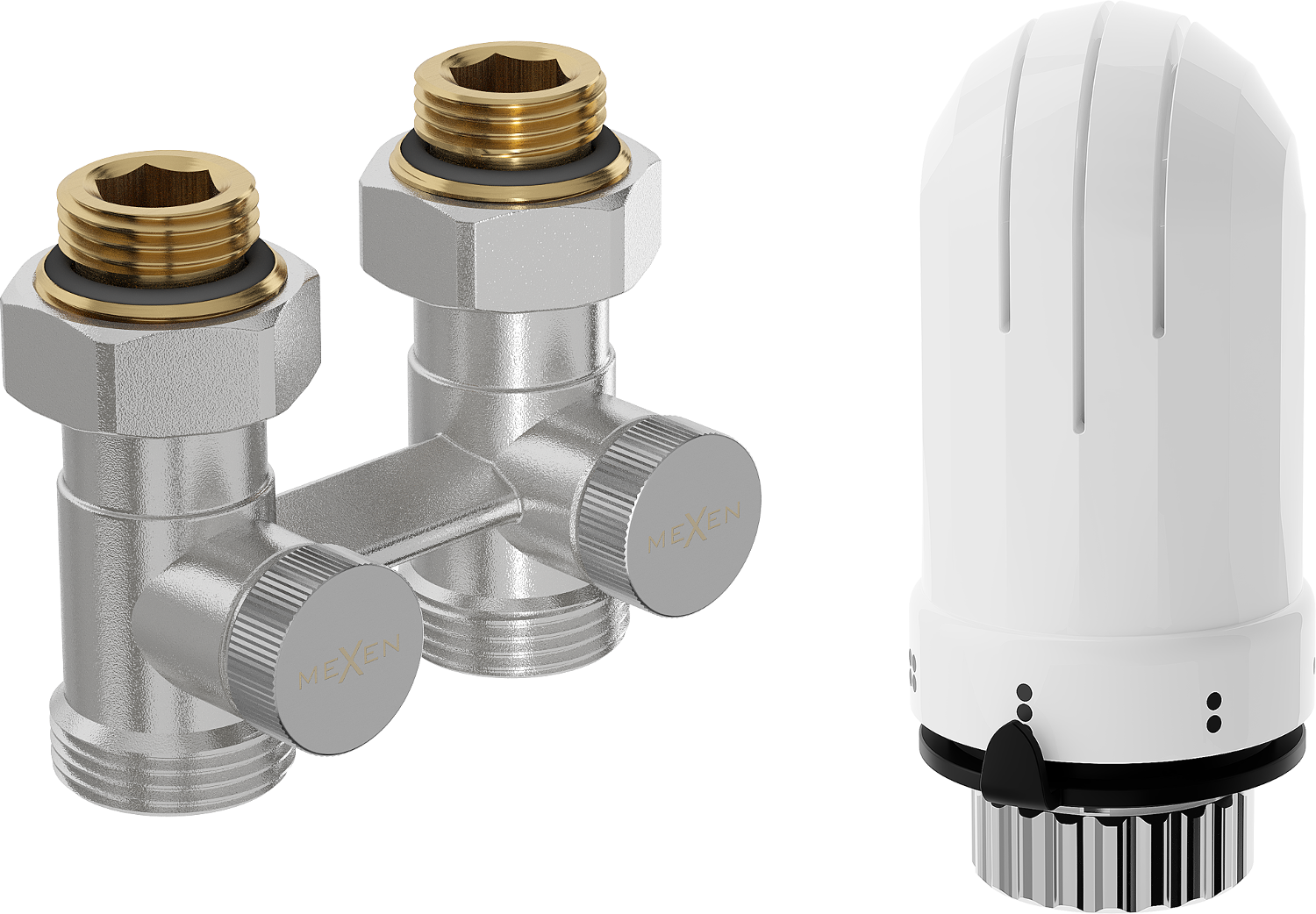

Mexen G03 DN50 two-pipe thermostatic set, straight 1/2"x3/4", nickel - W912-012-938-01
The Mexen G03 DN50 two-pipe thermostatic set, straight 1/2"x3/4", is a high-quality product made of brass, in nickel colour. It is characterised by high durability and resistance to high temperatures (maximum working temperature is 120°C) and high pressure (up to 10 bar). The set includes supply and shut-off valves as well as a head with white colour and adjustment scale 0-5. Thanks to frost protection (5°C) and a wide temperature adjustment range (0-29°C), it works excellently in various conditions.
Technical data:
Valve material: Brass
Valve colour: Nickel

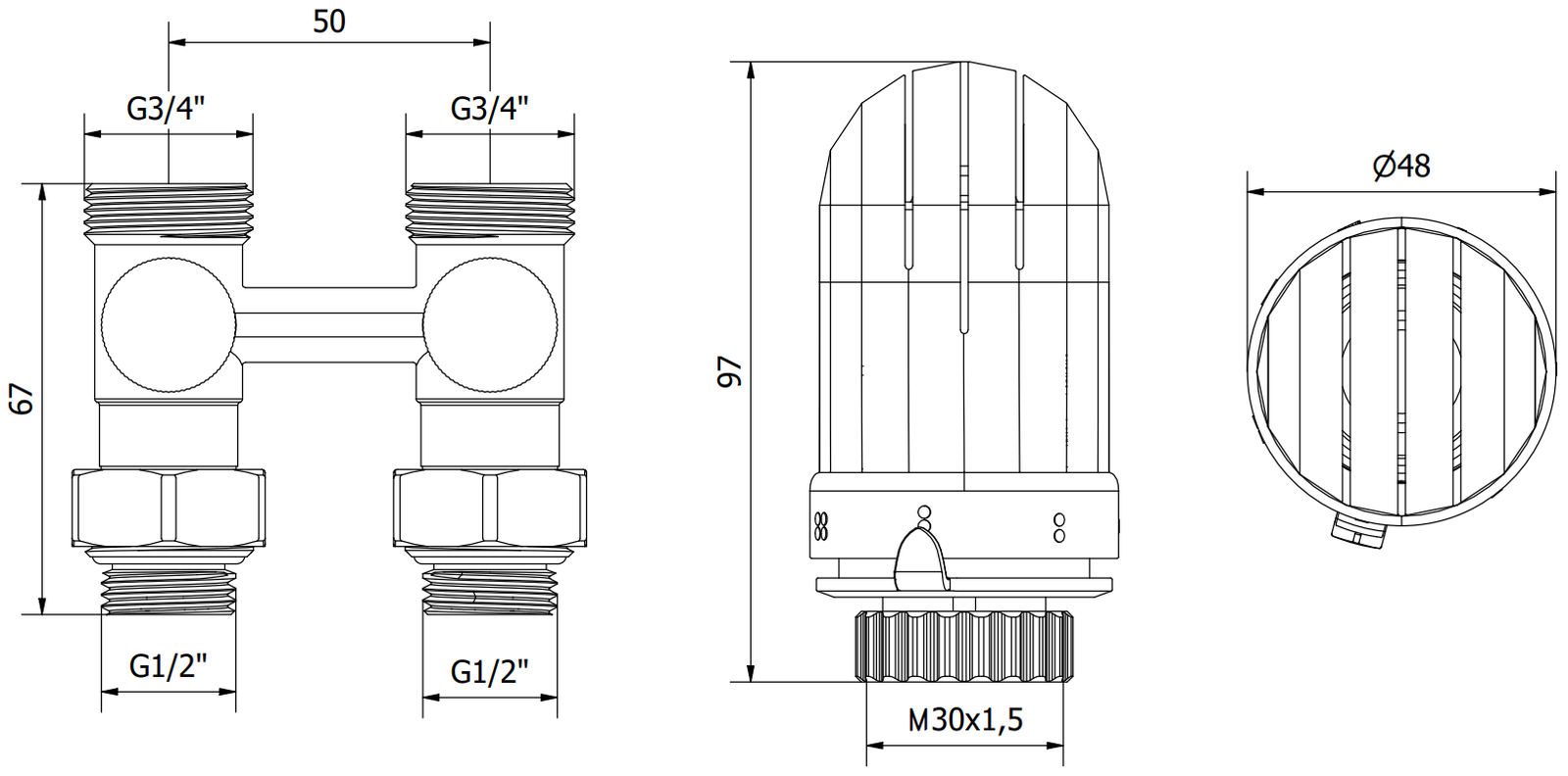

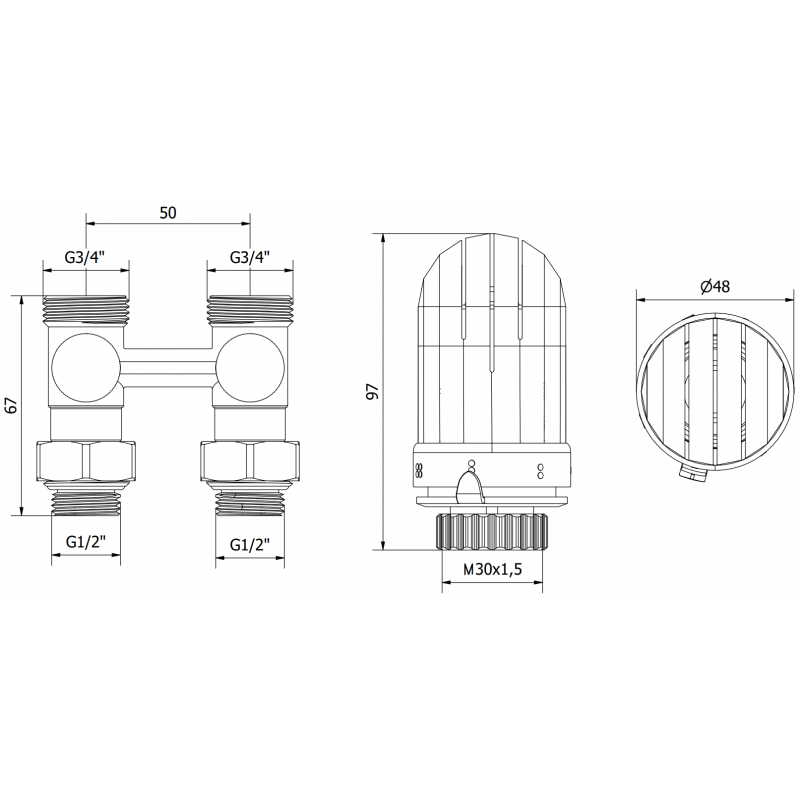

Valve connection diameter: G 1/2" and G 3/4"
Working temperature: max 120 °C
Maximum operating pressure: 10 bar
Supply and shut-off radiator valve
Bottom connection with 50 mm spacing
Head thread: M30 x 1.5 mm
Head colour: White
Adjustment scale: 0-5
Temperature adjustment range: 0-29 °C
Ambient temperature: max 50 °C
Frost protection 5°C
