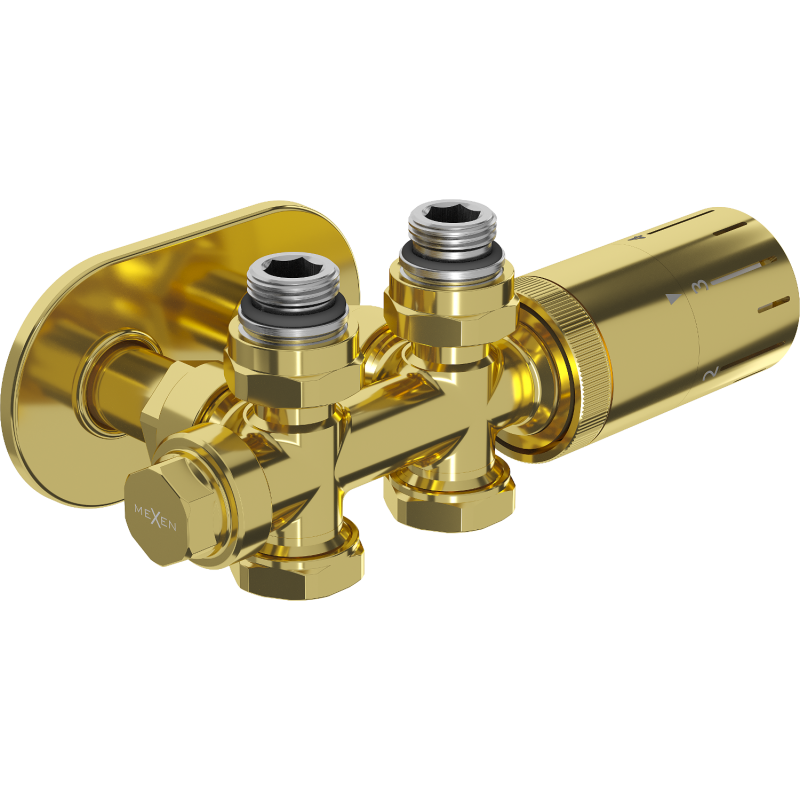

Mexen G05 thermostatic kit angled/straight with cover R, Duplex, DN50, gold - W908-958-905-50

The Mexen G05 thermostatic kit angled/straight with cover is the ideal solution for modern heating installations. Made of brass, it ensures durability and reliability. The gold colour adds elegance, and the universal connections (G 1/2'') make the kit suitable for various systems. The included steel cover enhances aesthetics, while the frost protection and a wide temperature adjustment range (0-29°C) guarantee user comfort.

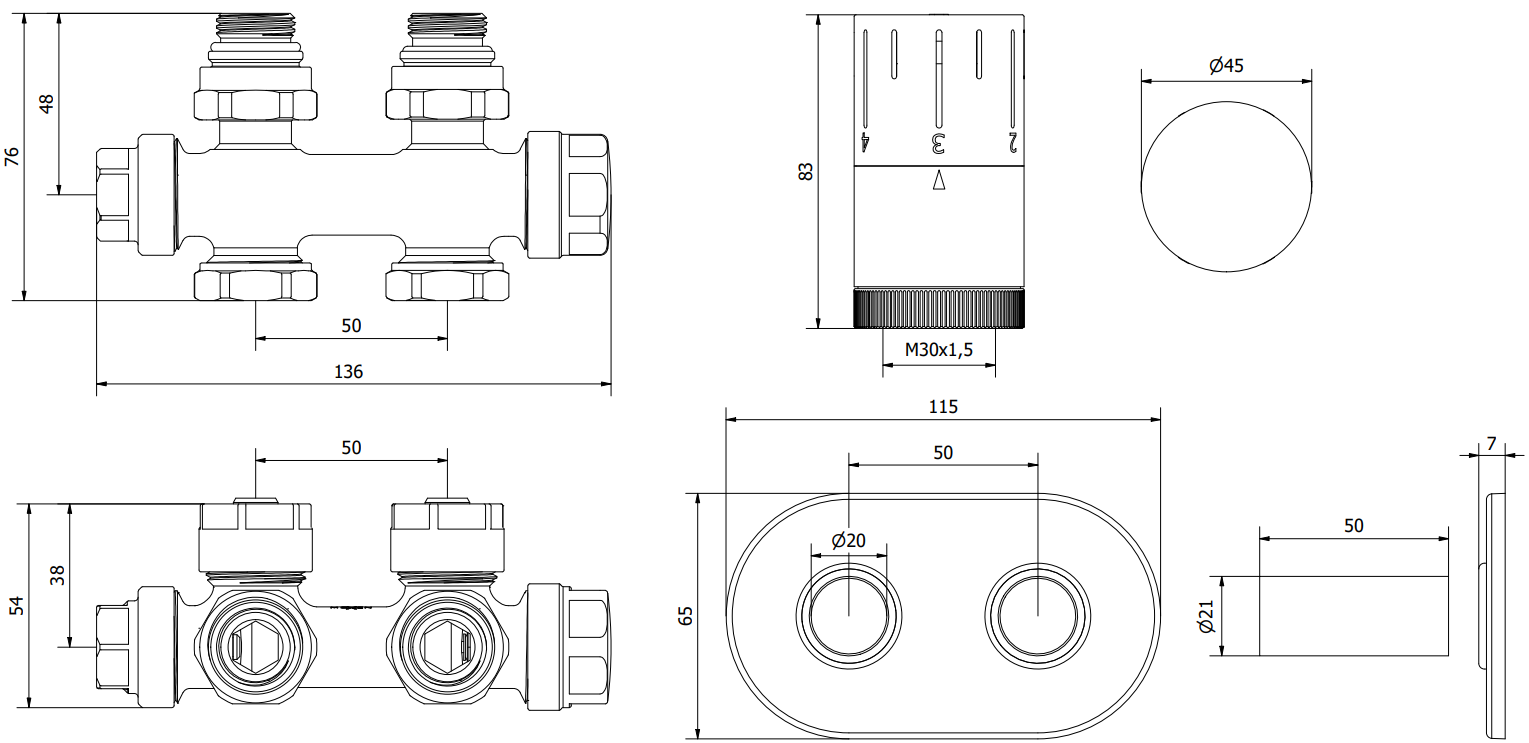

Technical data:

Valve material: Brass

Valve colour: Gold

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum operating pressure: 10 bar

Bottom connection spacing: 50 mm

Head thread: M30 x 1.5 mm

Head colour: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Option to connect the head on the left or right side of the valve

Cover colour: Gold

Cover material: Stainless steel

Cover width: 115 x 65 mm

Cover height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

Radiator connection hole spacing: 50 mm

The cover consists of a double rosette and two sleeves

Includes additional connectors for 16x2 mm multi-layer pipes and 15 mm copper pipe connectors

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Straight , Angle
Color
Gold
Inlet Diameter
G 1/2"
Cover
Yes
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
