Mexen G05 angled/straight thermostatic set with R cover, Duplex, DN50, white - W908-958-905-20

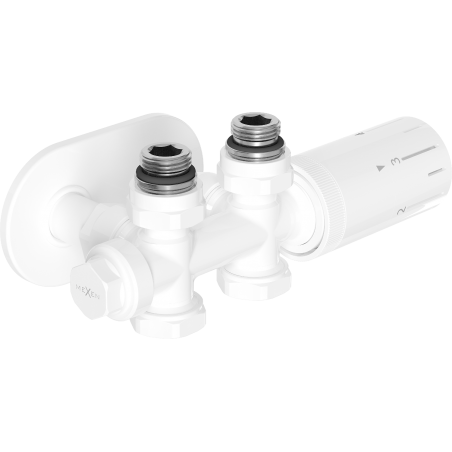

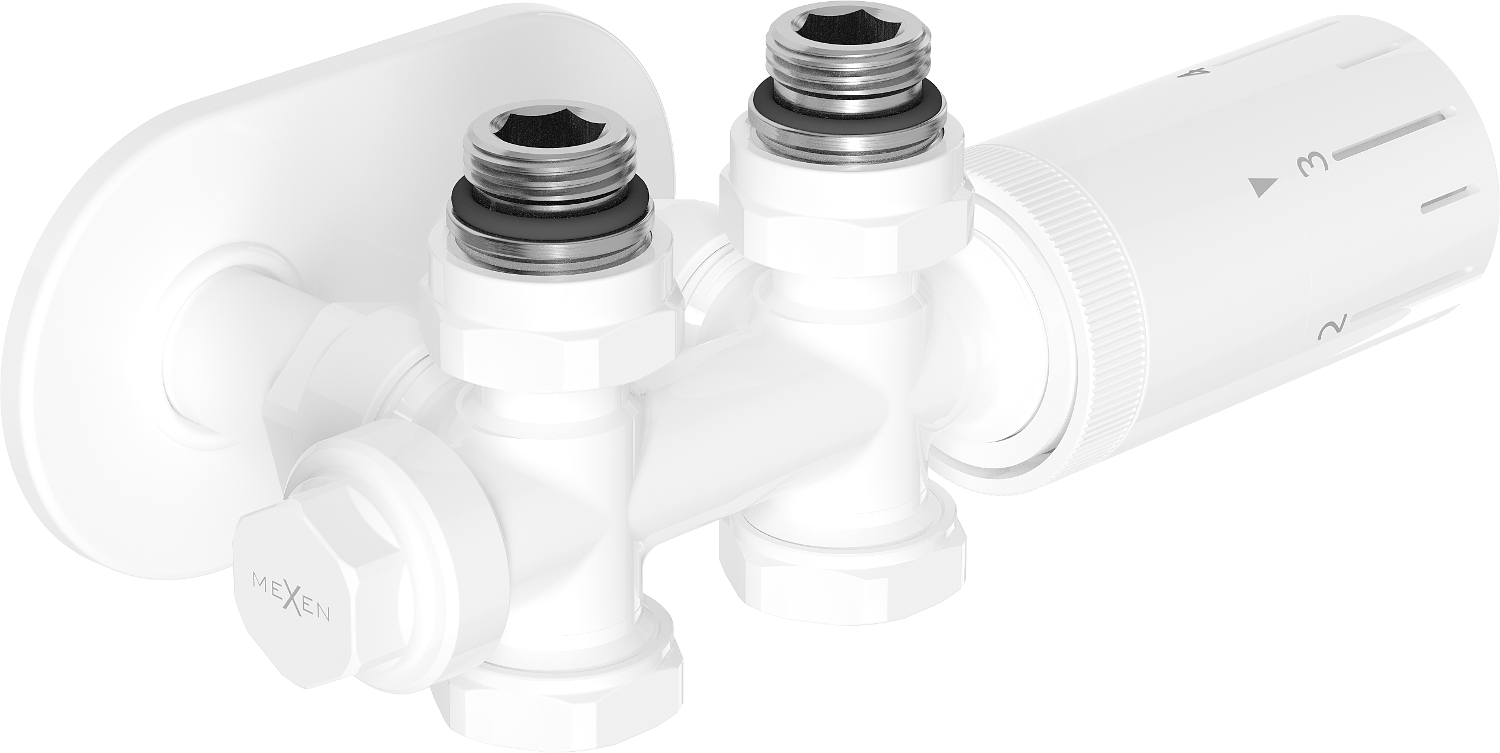

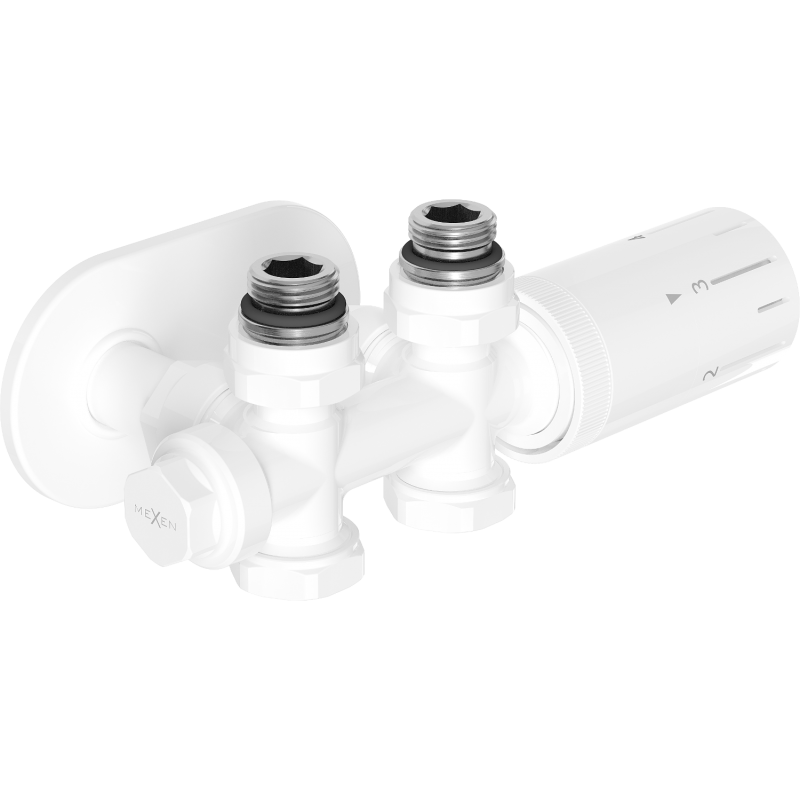

Mexen G05 angled/straight thermostatic set with R cover, Duplex, DN50, white, offers versatility with the ability to connect at an angle and straight. Made from high-quality brass and stainless steel, it guarantees durability and reliability. The white color and aesthetic cover blend perfectly with any interior. The thermostatic valve provides precise temperature control in the range of 0-29°C, with a maximum working pressure of 10 bar and frost protection. Ideal for modern heating installations.

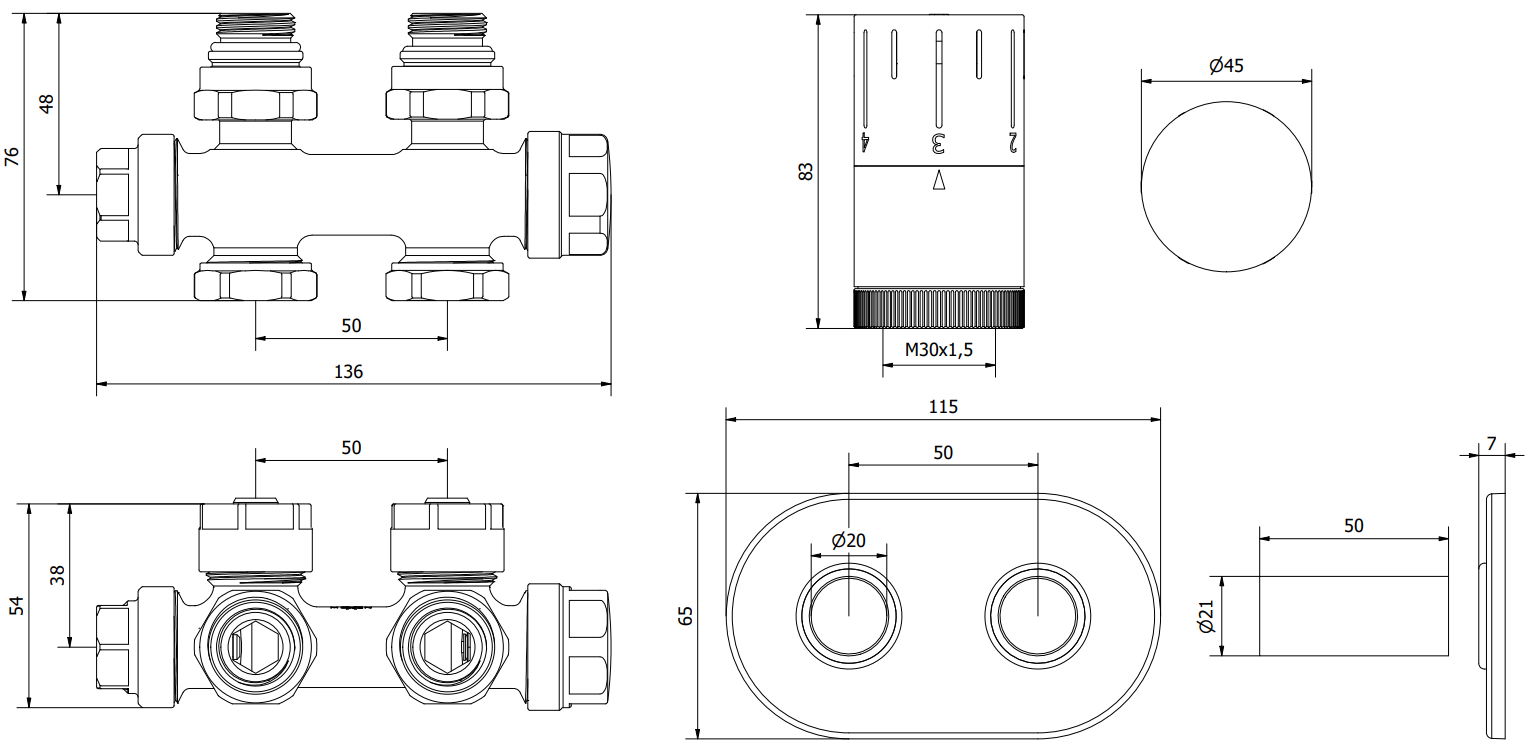

Technical data:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

Cover colour: White

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

Spacing of radiator connection holes: 50 mm

The cover consists of a double rosette and two sleeves

Includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

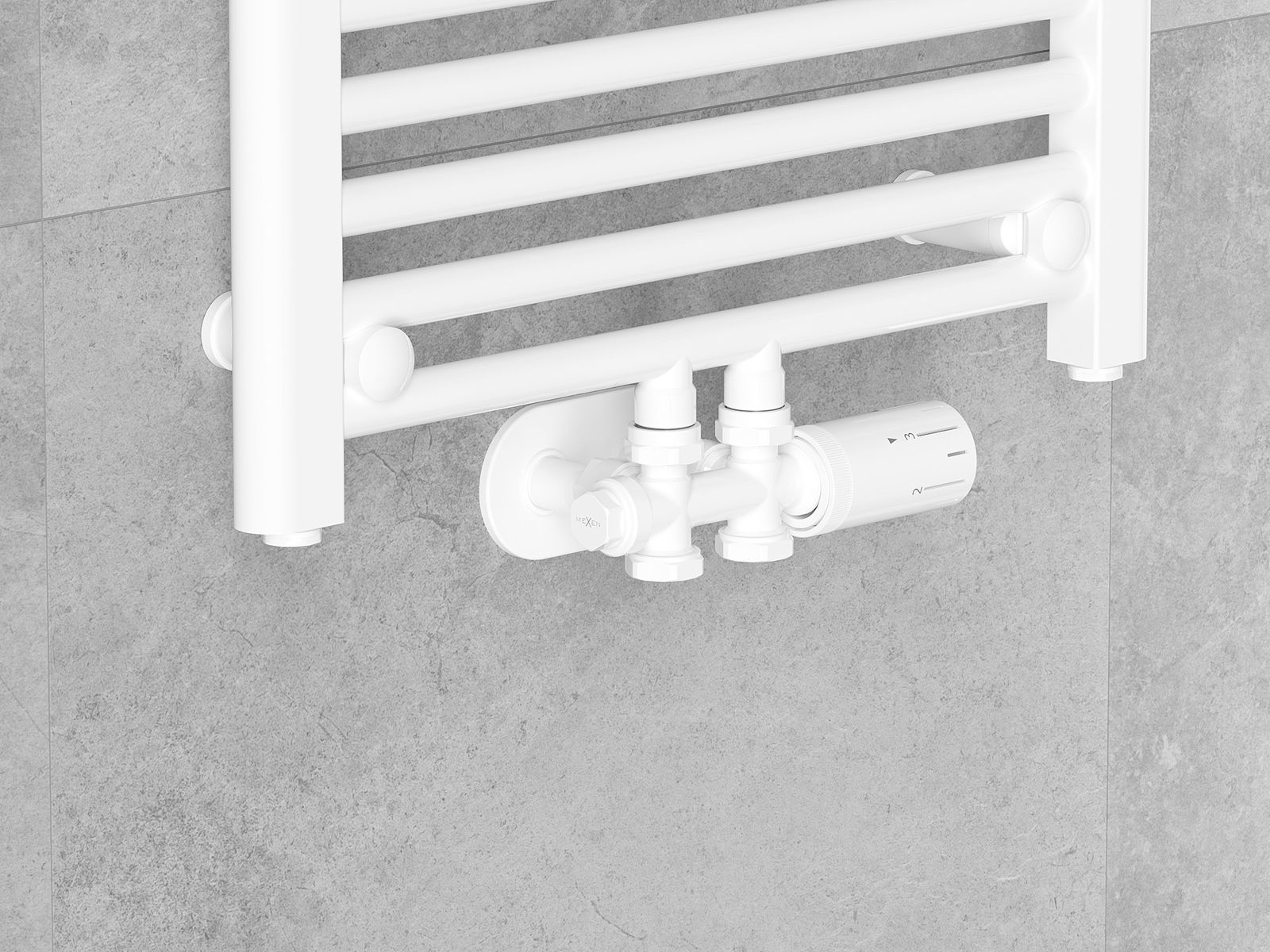

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Straight , Angle
Color
White
Inlet Diameter
G 1/2"
Cover
Yes
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
