Mexen G05 angled/straight thermostatic set with cover R, Duplex, DN50, black - W908-958-905-70
Mexen G05 angled/straight thermostatic set with cover R, Duplex, DN50, black - W908-958-905-70 Mexen G05 angled/straight thermostatic set with cover R, Duplex, DN50, black - W908-958-905-70 Mexen G05 angled/straight thermostatic set with cover R, Duplex, DN50, black - W908-958-905-70
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Series:
G05
Ean:
5905315237811
Index:
W908-958-905-70
Type:
Straight, Angle
Series:
G05
Color:
Black
Inlet Diameter:
G 1/2"
Color - Black - ()

Mexen G05 angled/straight thermostatic set with cover R, Duplex, DN50, black - W908-958-905-70

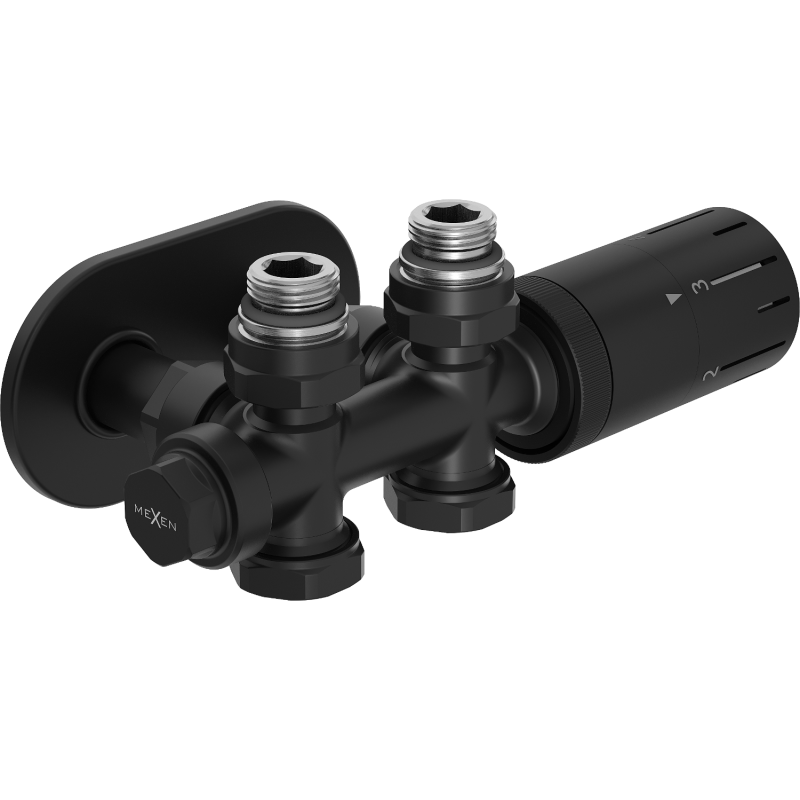

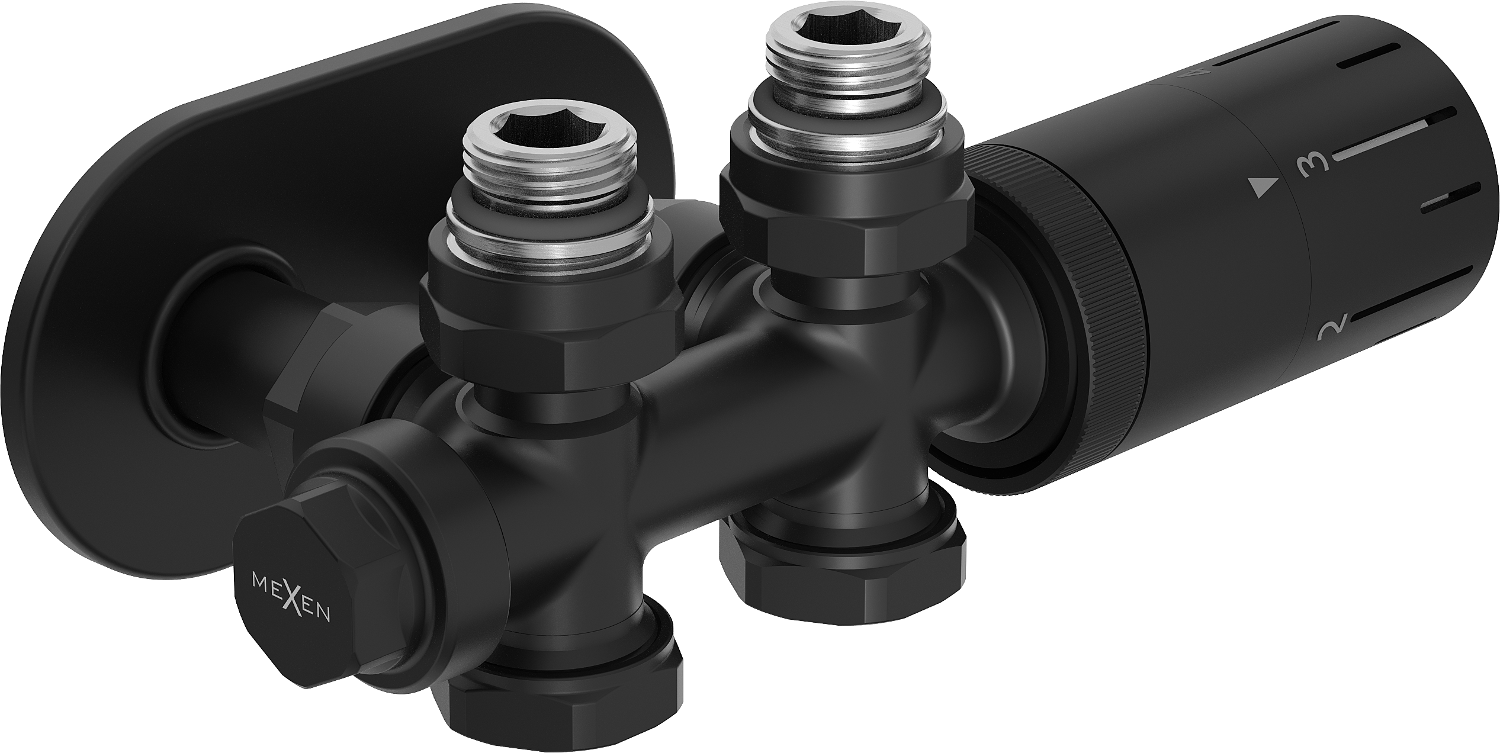

The Mexen G05 set is an angled/straight thermostatic valve with a black cover, made from solid brass. With a G 1/2" connection diameter and a wide temperature adjustment range (0-29 °C), it ensures precise control. It supports temperature operations up to 120 °C and a maximum operating pressure of 10 bar. The versatility of the set allows for flexible connections, and the elegant cover with a double escutcheon and sleeves enhances the aesthetics of the installation.

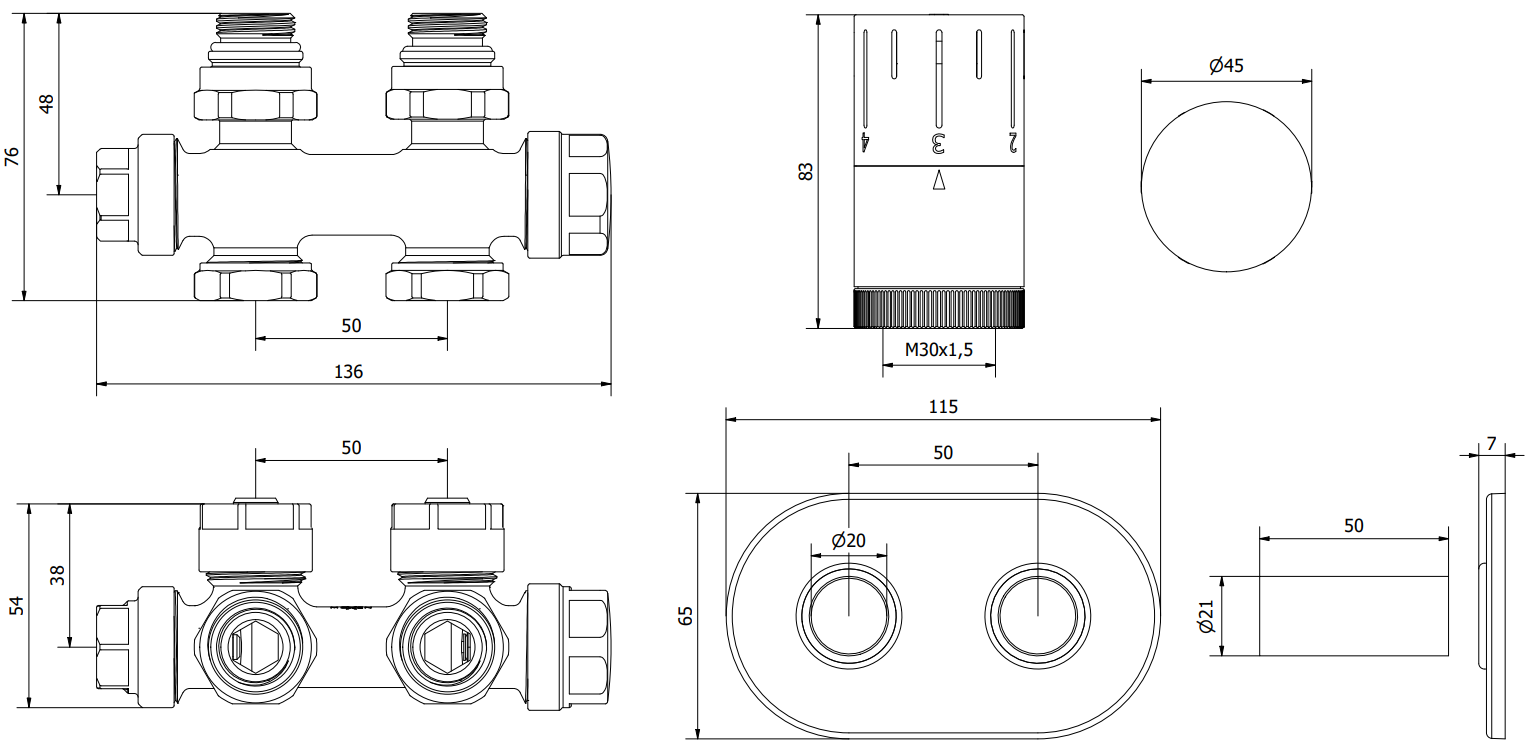

Technical specifications:

Valve material: Brass

Valve colour: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Cover colour: Black

Escutcheon material: Stainless steel

Escutcheon width: 115 x 65 mm

Escutcheon height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

Spacing of radiator connection holes: 50 mm

The cover consists of a double escutcheon and two sleeves

The set includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Straight , Angle
Color
Black
Inlet Diameter
G 1/2"
Cover
Yes
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
Manufacturer
See
