Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66

Brodziki EN

Brodziki EN

(0)
Questions
(0)

Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66

Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66
search
  • Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66
  • Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66
  • Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66
Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66
Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66 Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66 Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Series:
G05
Ean:
5905315237804
Index:
W908-958-905-66
Type:
Straight, Angle
Series:
G05
Color:
Anthracite
Inlet Diameter:
G 1/2"
Color - Anthracite - ()

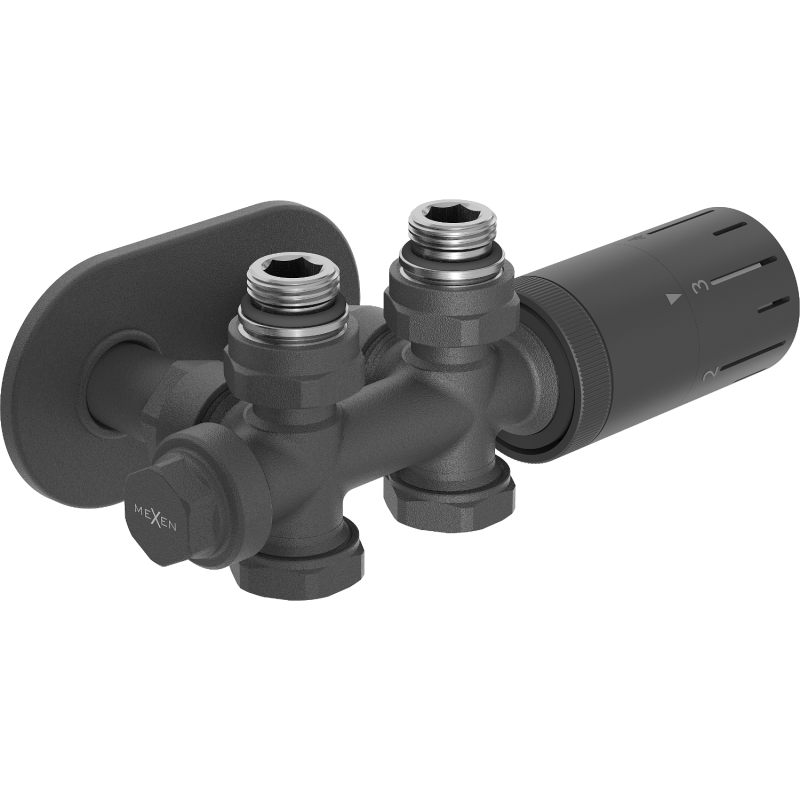

Mexen G05 thermostaic set angled/straight with R cover, Duplex, DN50, anthracite - W908-958-905-66

Mexen G05 thermostaic set angled/straight with R cover Duplex DN50 anthracite is an exceptional choice for anyone who values quality and style. Made of brass, the anthracite-coloured valve offers high resistance to temperatures up to 120 °C and working pressure up to 10 bar. The universal bottom connection with 50 mm spacing and the possibility of temperature regulation in the range of 0-29 °C make the set extremely functional. Additional advantages include the possibility of head connection on the left or right side and a cover with a double rosette.

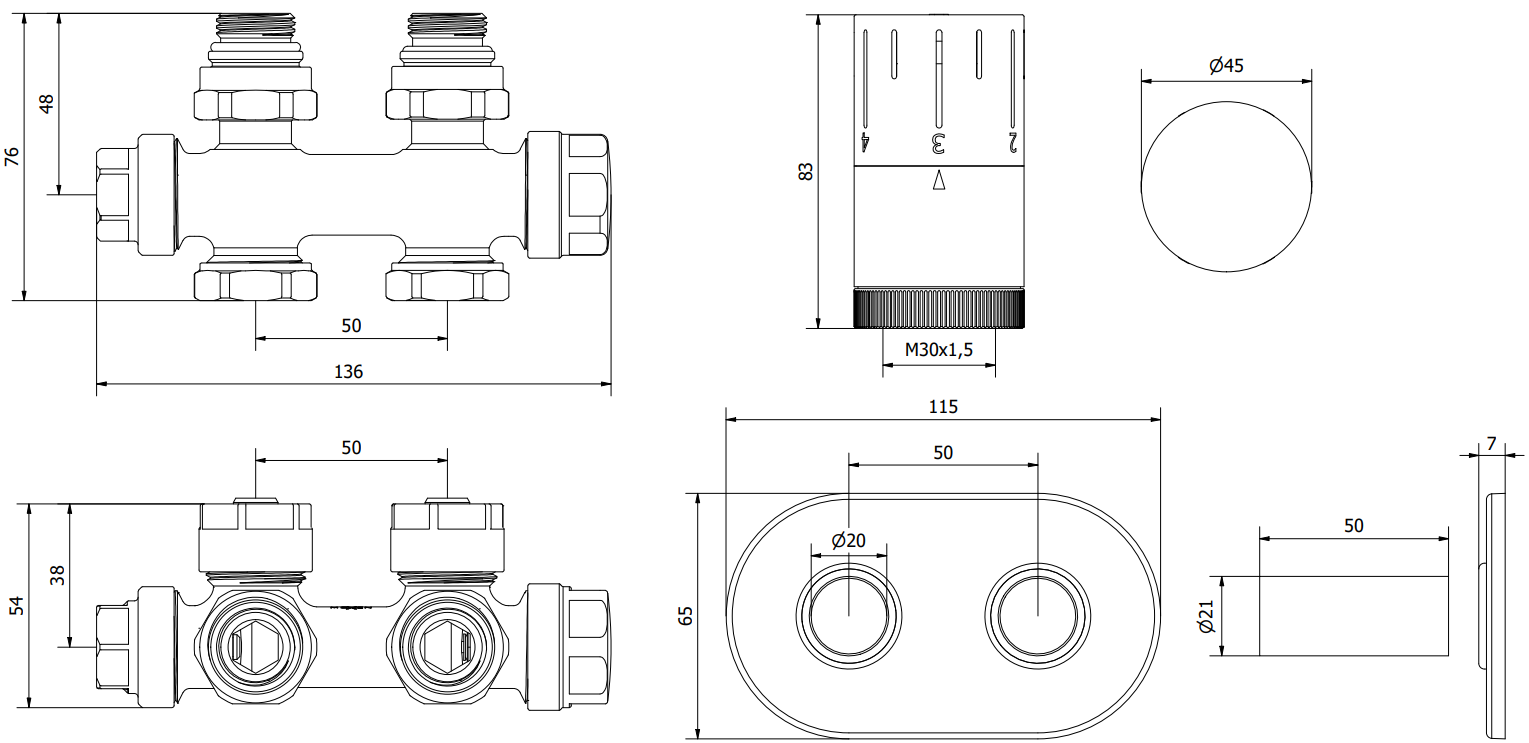

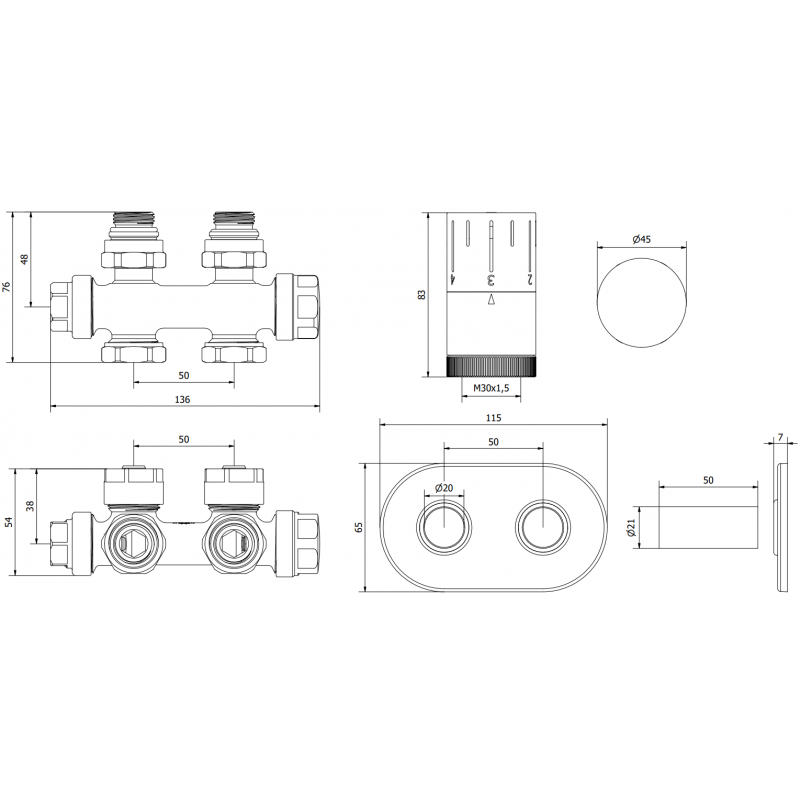

Technical data:

Valve material: Brass

Valve colour: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: Anthracite

Regulation scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility of head connection on the left or right side of the valve

Cover colour: Anthracite

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Internal diameter of bushings: 20 mm

Spacing for radiator connections: 50 mm

The cover consists of a double rosette and two bushings

Includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Universal supply and cut-off valve for angled and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Straight , Angle
Color
Anthracite
Inlet Diameter
G 1/2"
Cover
Yes
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
Manufacturer
See
