Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50

  • Mexen in Black
Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50
search
  • Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50
  • Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50
  • Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50
Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50
Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50 Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50 Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G05
Ean:
5905315237996
Index:
W907-958-910-50
Colour:
Gold
Connection diameter:
G 1/2"
Type:
Angular
Series:
G05
Colour - Gold - ()

Mexen G05 angled thermostatic set with S cover, Duplex, DN50, gold - W907-958-910-50

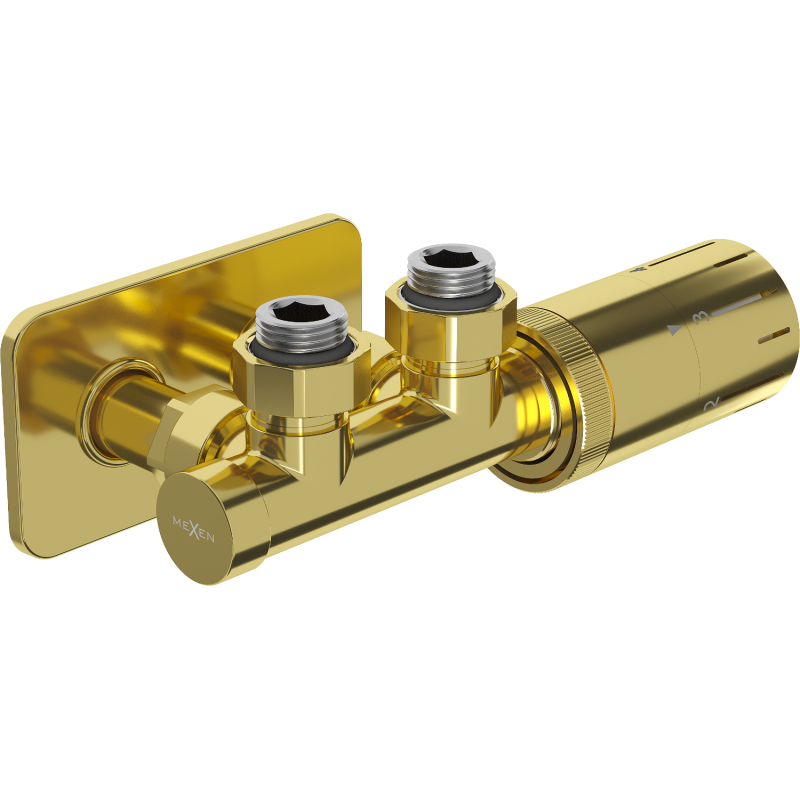

The Mexen G05 is an angled thermostatic set with an S cover, characterized by durability due to its brass and stainless steel construction. The gold color adds elegance, and the ability to adjust the temperature and connect the head to the left or right side of the valve enhances functionality. The valve operates at a maximum pressure of 10 bar and a temperature of up to 120°C. The bottom connection facilitates installation, and the frost protection and additional fittings provide versatile applications.

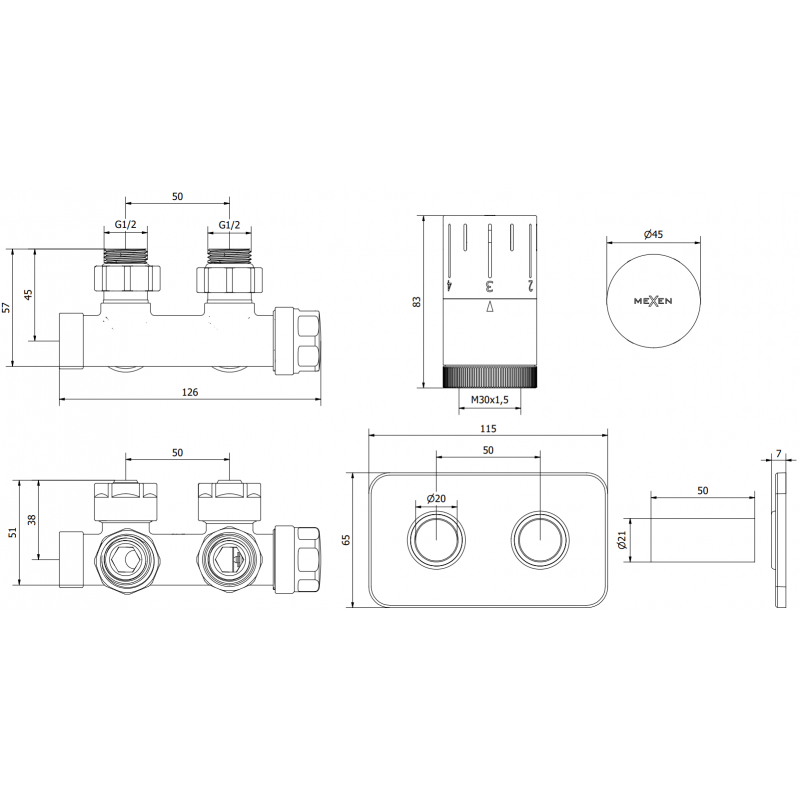

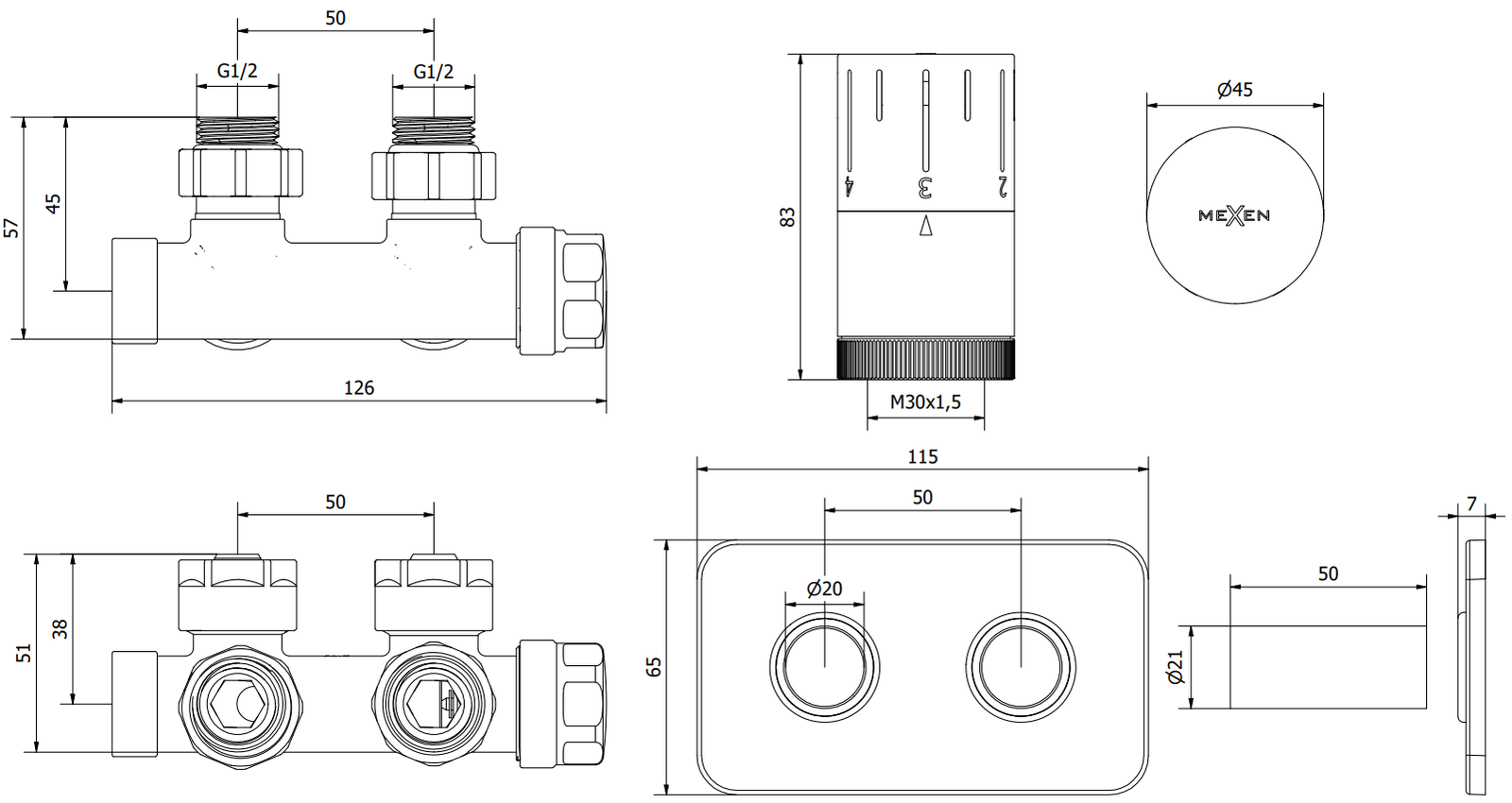

Technical data:

Valve material: Brass

Valve color: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head from the left or right side of the valve

Cover color: Gold

Cover material: Stainless steel

Cover width: 115 x 65 mm

Cover height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Sleeve inner diameter: 20 mm

Spacing of connections for radiators: 50 mm

The cover consists of a double flange and two sleeves

Includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

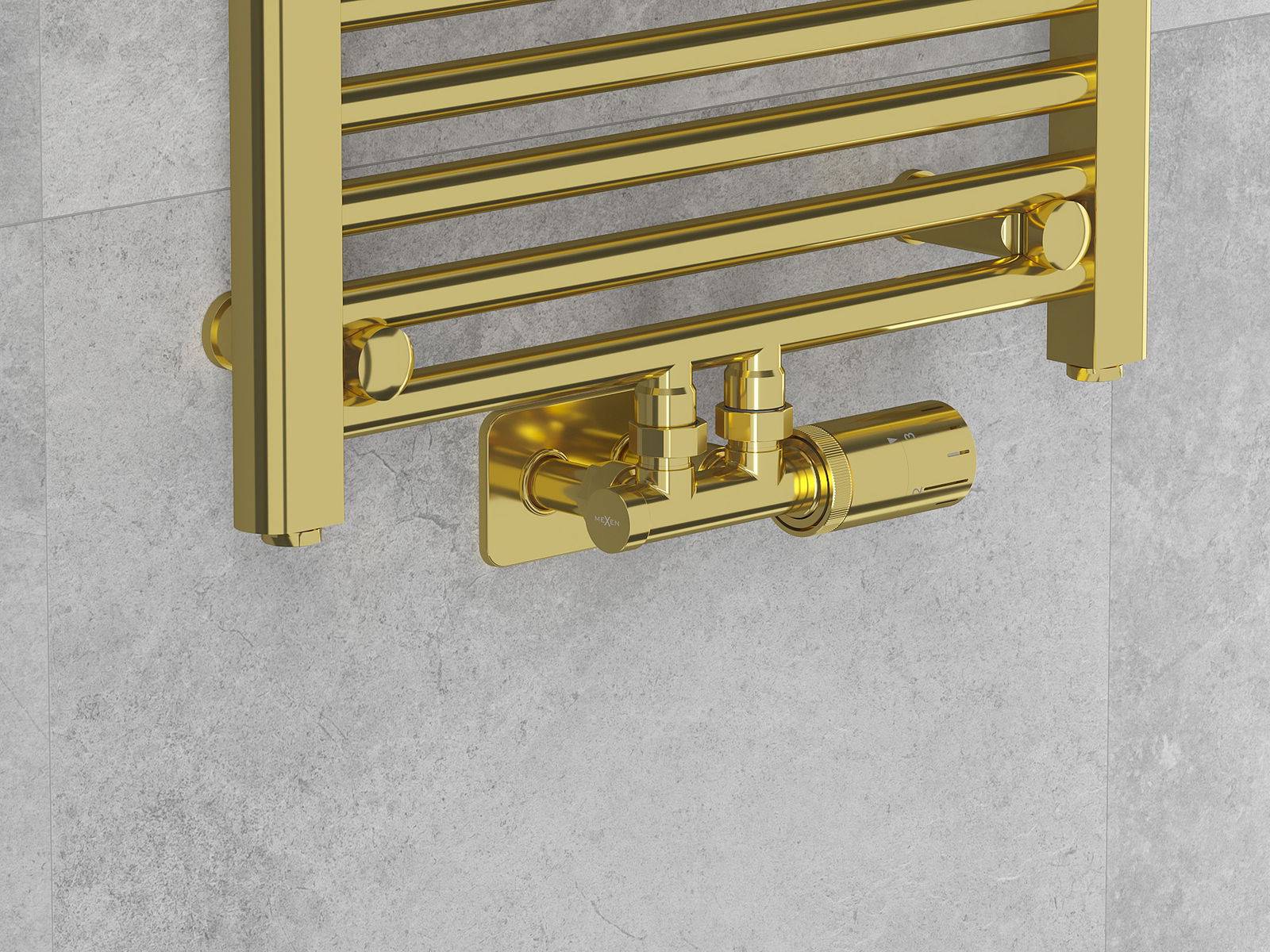

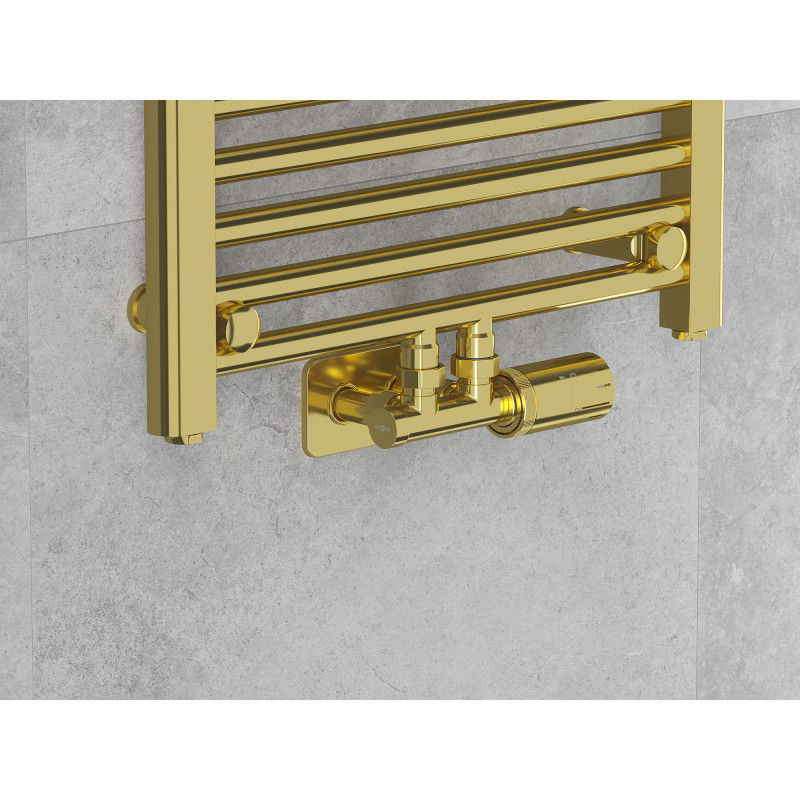

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G05
Type
Angular
Colour
Gold
Connection diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See
