Mexen G05 angled/straight thermostatic set, Duplex, DN50, gold - W908-958-50

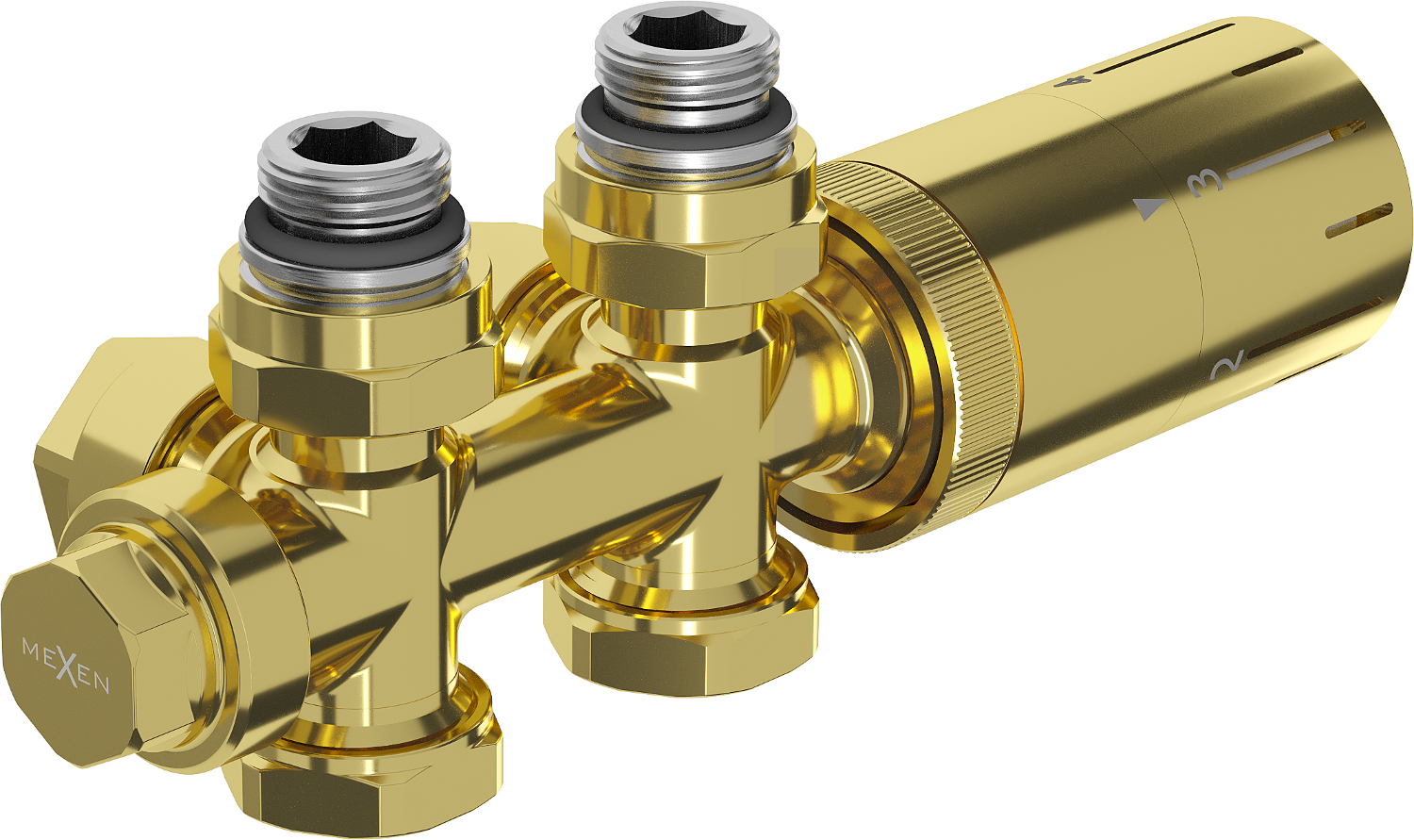

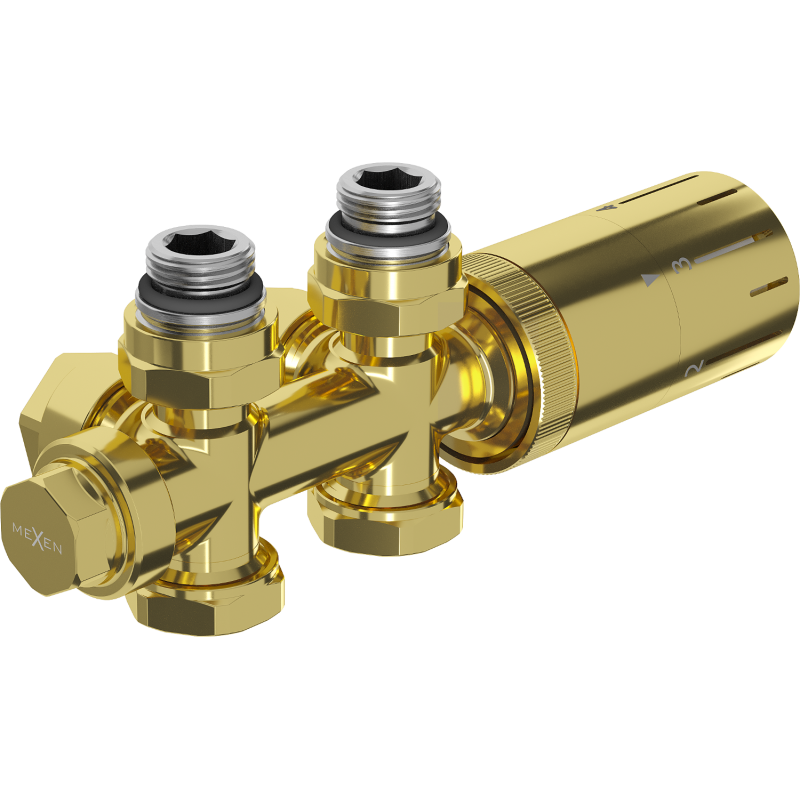

The Mexen G05 angled/straight thermostatic set is a versatile product made of brass in an elegant gold colour. Thanks to the possibility of both angled and straight mounting, and a universal supply and shut-off valve, the product is suitable for wall or floor installation. The maximum operating temperature is 120°C, and the working pressure is up to 10 bar. The set includes additional connectors for multilayer and copper pipes, ensuring easy and quick installation.

Technical data:

Valve material: Brass

Valve colour: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

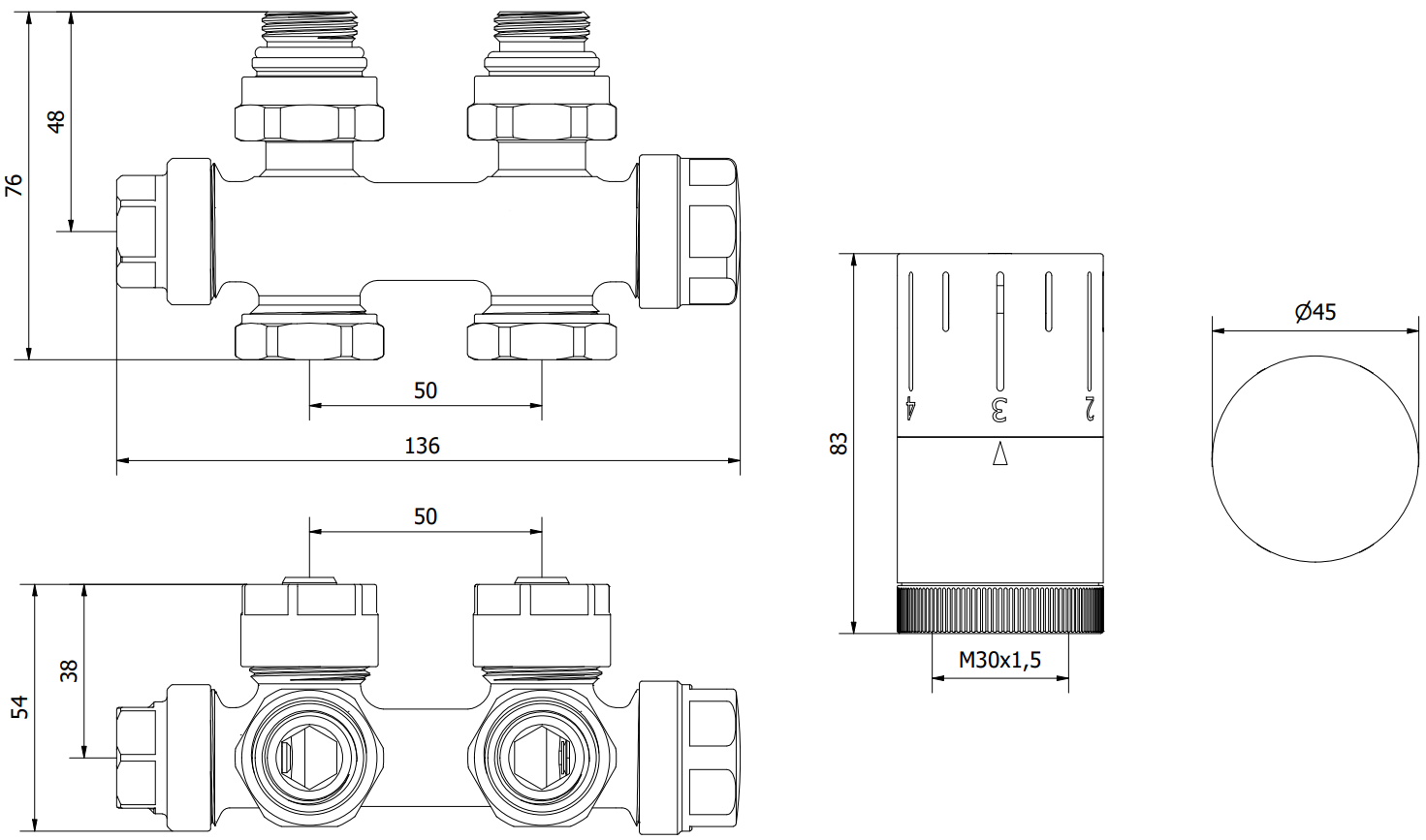

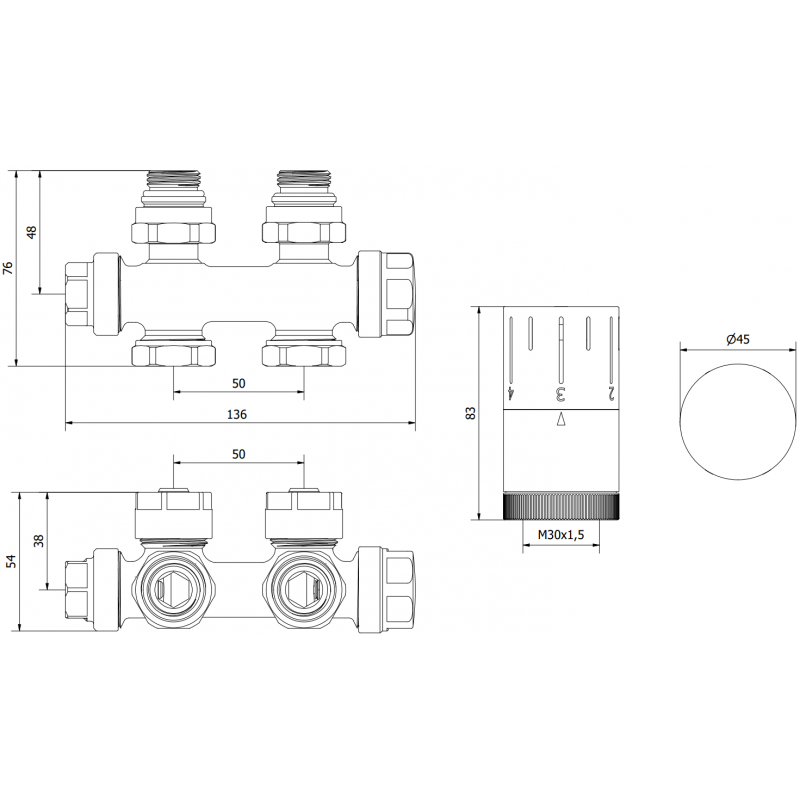

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

The set includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

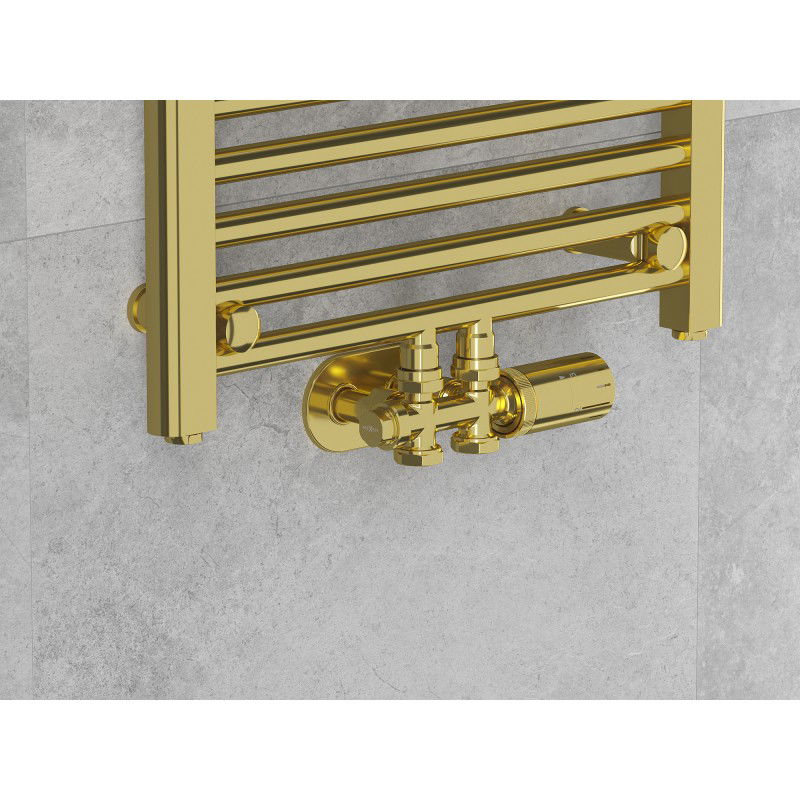

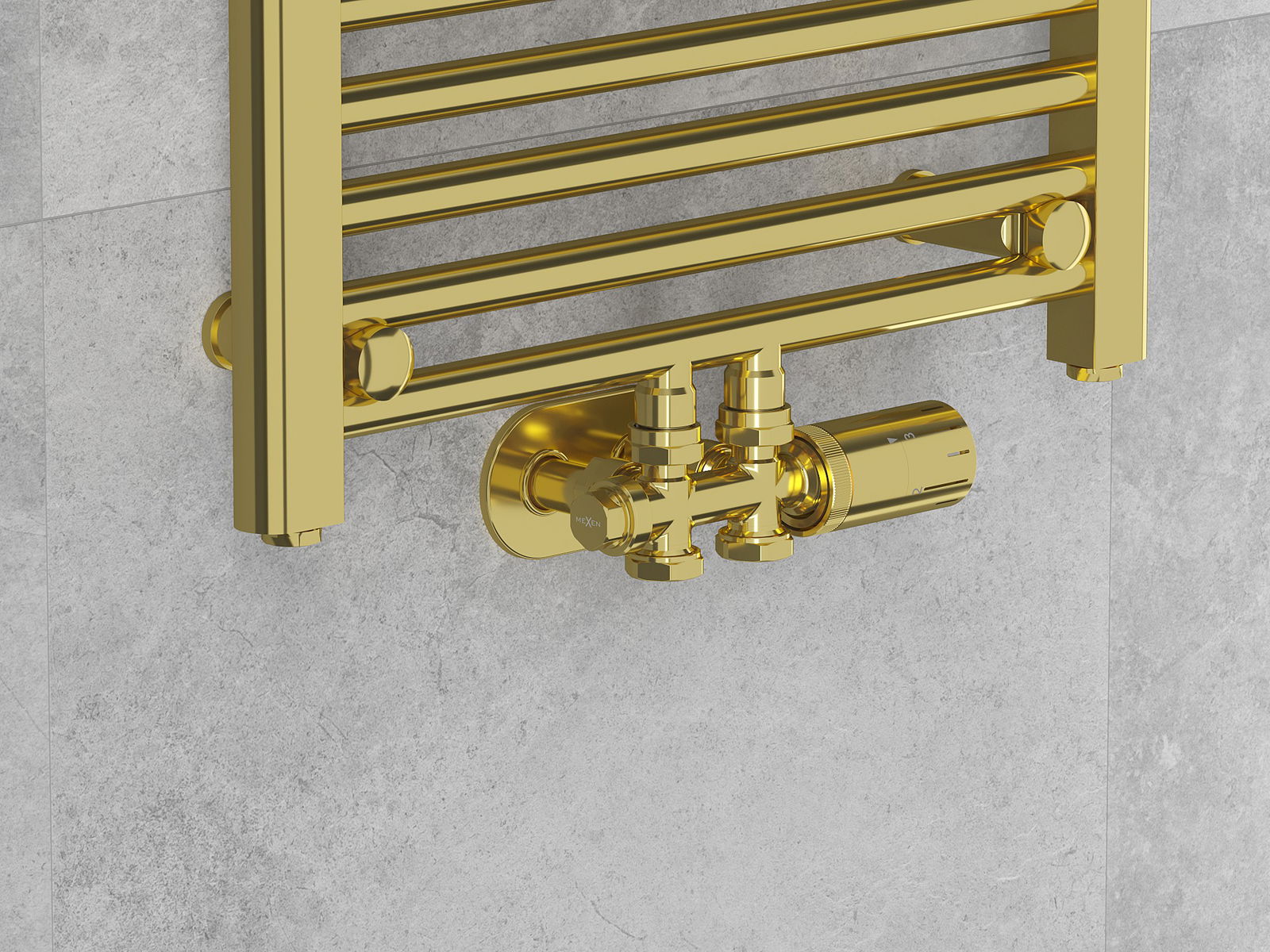

Universal supply and shut-off valve for angled and straight connections, whether the connection is in the wall or in the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Straight , Angle
Color
Gold
Inlet Diameter
G 1/2"
Cover
No
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
Manufacturer
See
