Mexen G05 thermostatic set angled/straight, Duplex, DN50, chrome - W908-958-01

Mexen G05 thermostatic set angled/straight, Duplex, DN50, chrome is an excellent choice for demanding users. Made of brass and finished in elegant chrome, it guarantees durability and an aesthetic look. The universal supply and cut-off valve is suitable for both angled and straight connections, regardless of location. It has an adjustment scale of 0-5 and a temperature adjustment range from 0 to 29°C, ensuring precise control. The set includes additional fittings for multilayer and copper pipes.

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

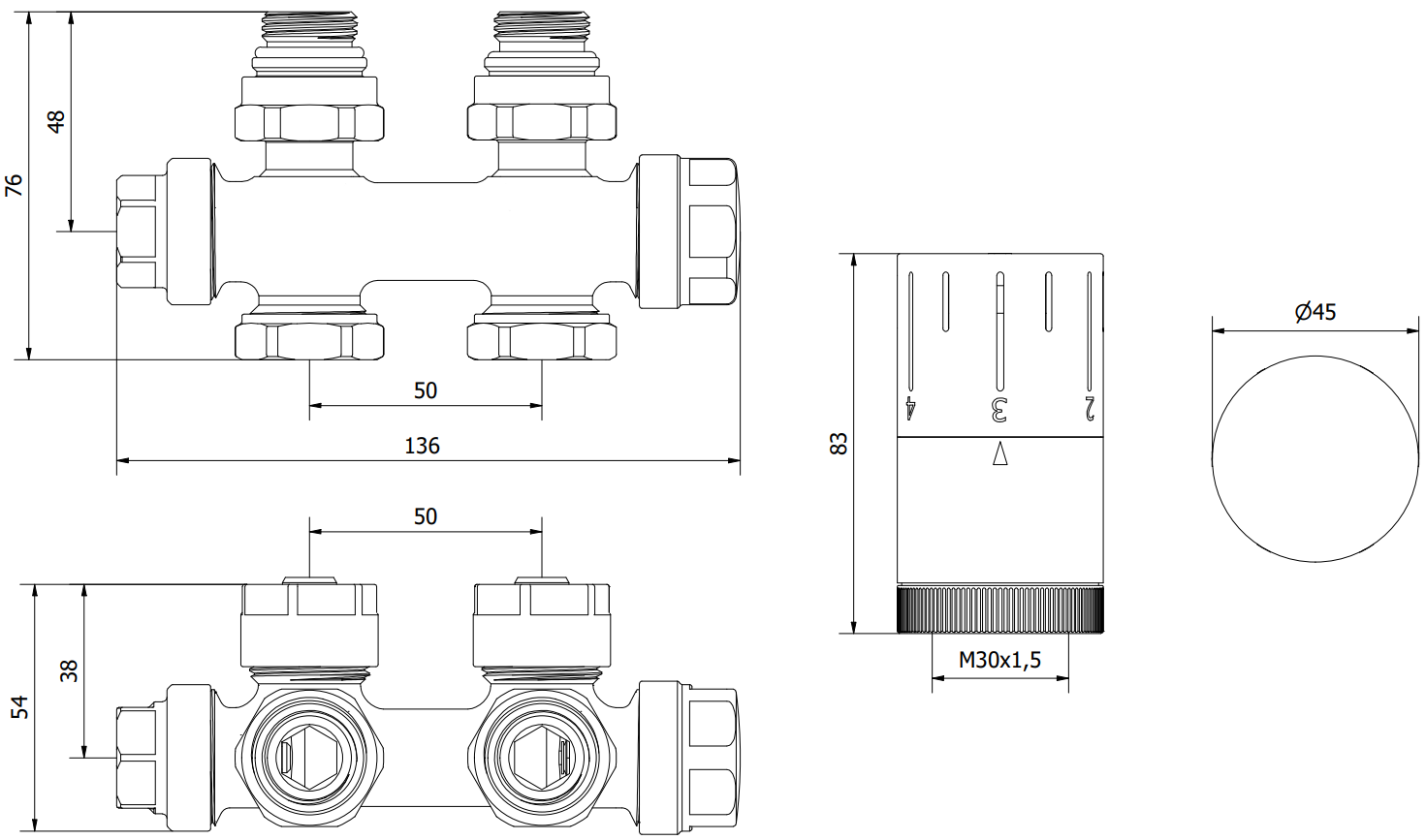

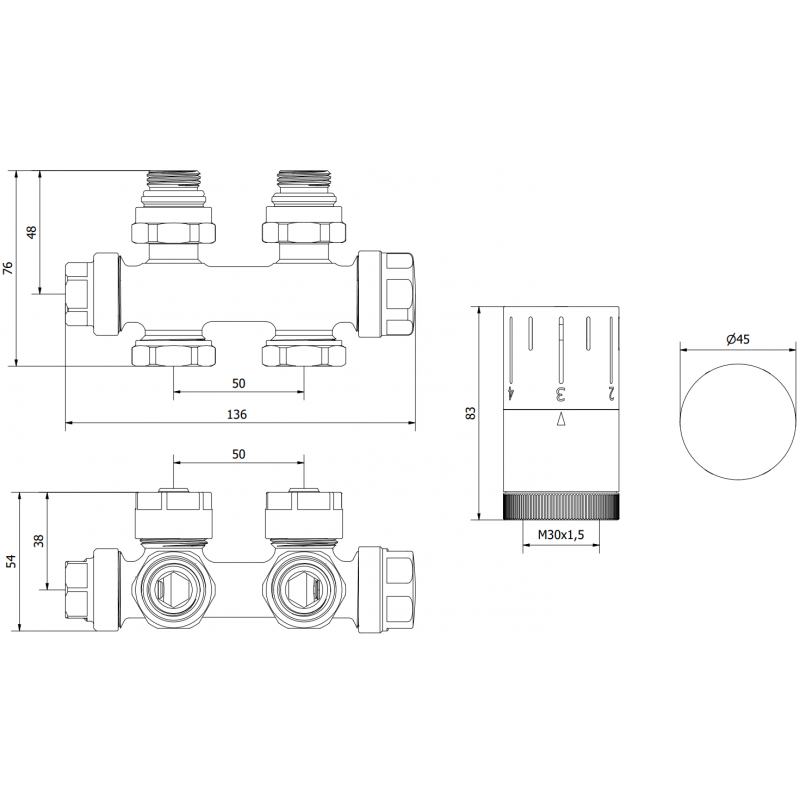

Bottom connection spacing 50 mm

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Option to connect the head to the left or right side of the valve

Includes additional fittings for multilayer pipes 16x2 mm and fittings for copper pipes 15 mm

Universal supply and cut-off valve for angled and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the operating pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe functioning in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Straight , Angular
Color
Chrome
Connection diameter
G 1/2"
Cover
No
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
