Mexen G05 angled/straight thermostatic set, Duplex, DN50, anthracite - W908-958-66

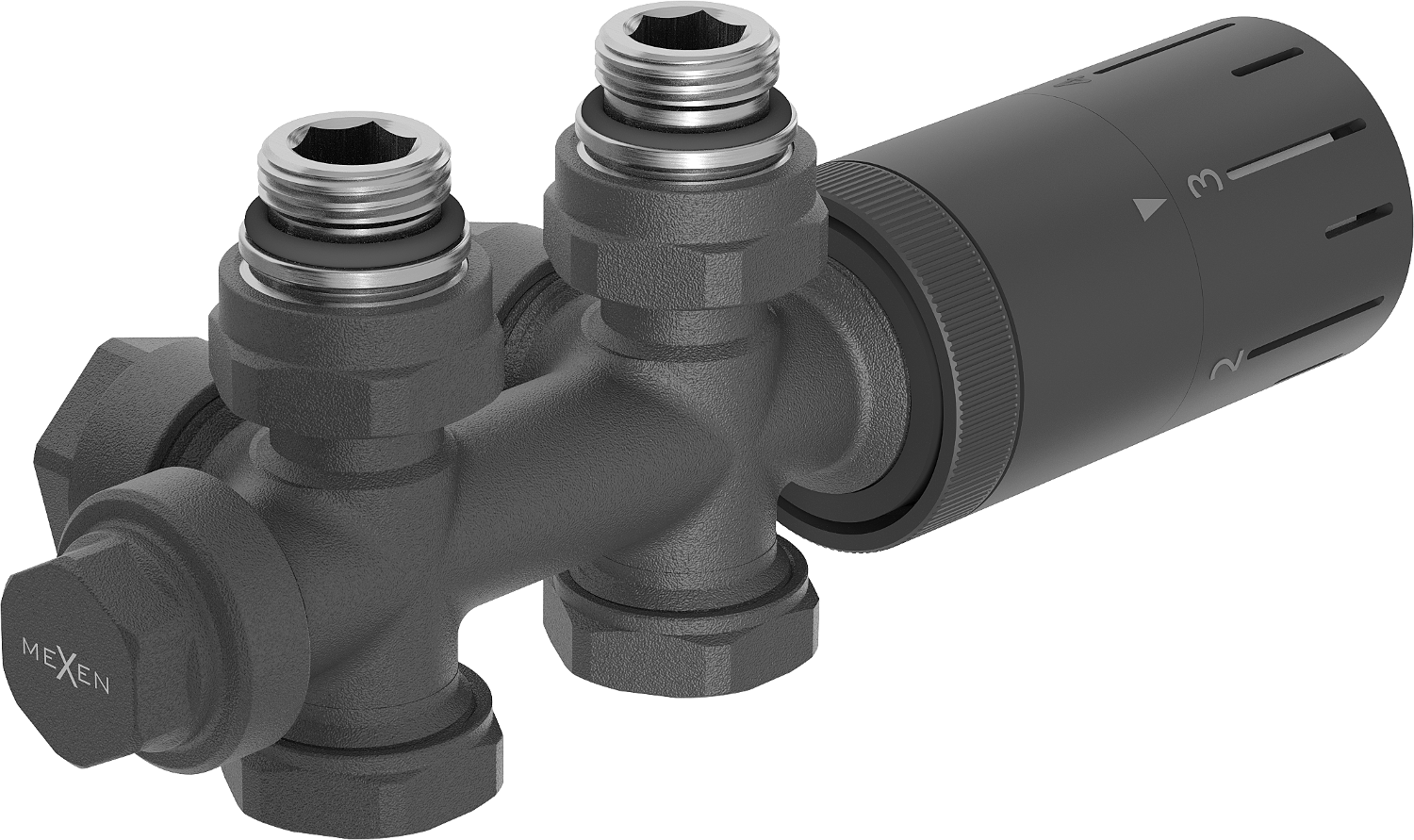

Mexen G05 angled/straight thermostatic valve set, Duplex, DN50, anthracite is a universal thermostatic valve set made of brass. Thanks to the option of bottom connection with a spacing of 50 mm and the possibility of connecting the head on the left or right side of the valve, the set provides flexibility and convenience. The product is characterized by high-quality craftsmanship and an elegant anthracite colour. The maximum working temperature is 120°C, and the maximum working pressure is 10 bar, making the set highly functional and durable.

Technical data:

Valve material: Brass

Valve colour: Anthracite

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head on the left or right side of the valve

The set includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Universal supply and cut-off valve for angled and straight connections, regardless of whether the connection is in the wall or floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.
