Mexen G05 angled/straight thermostatic set, Duplex, DN50, black - W908-958-70

Mexen G05 is an angled/straight thermostatic set, ideal for everyday use. Made of brass, in an elegant black color, it offers a maximum working temperature of up to 120°C and a working pressure up to 10 bar. It features a universal bottom connection with a distance of 50 mm, an adjustment scale of 0-5, and a temperature range of 0-29°C. Frost protection and the possibility of connecting from the left or right side provide full flexibility. Additional connectors for multi-layer and copper pipes are included in the set.

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

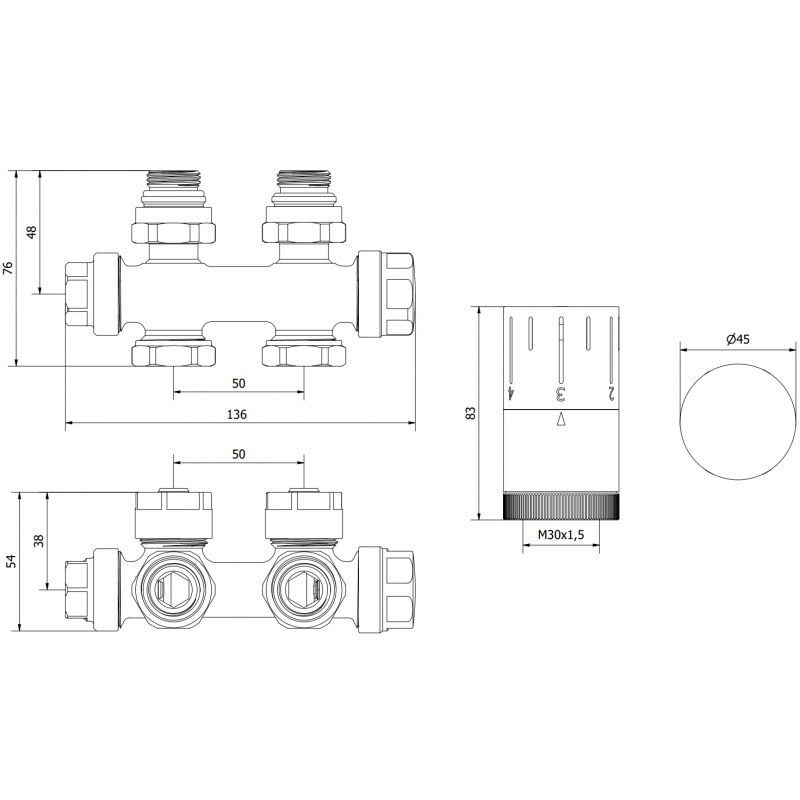

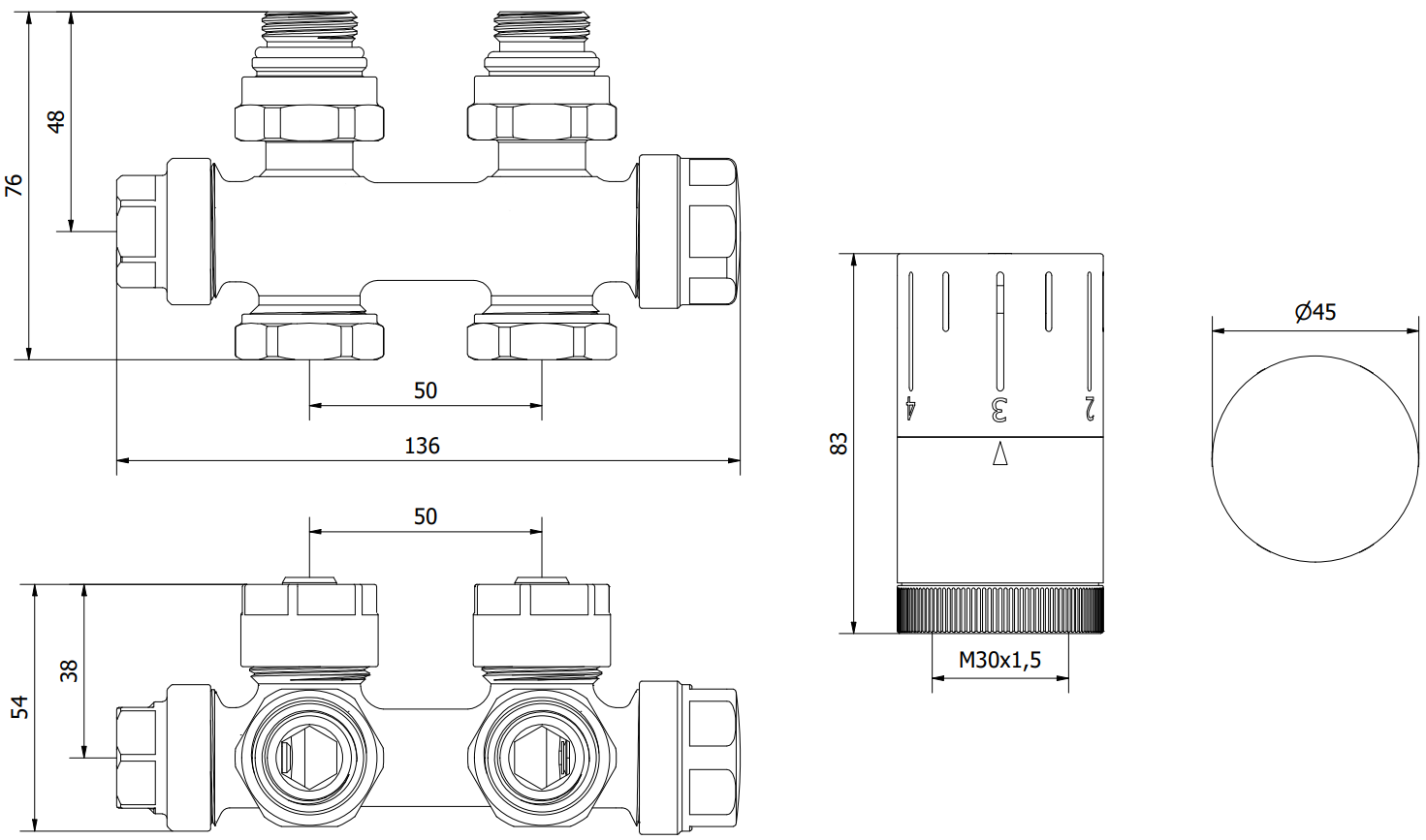

Bottom connection with a distance of 50 mm

Head thread: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

Additional connectors included for multi-layer pipes 16x2 mm and copper pipes 15 mm

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Straight , Angle
Color
Black
Inlet Diameter
G 1/2"
Cover
No
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
