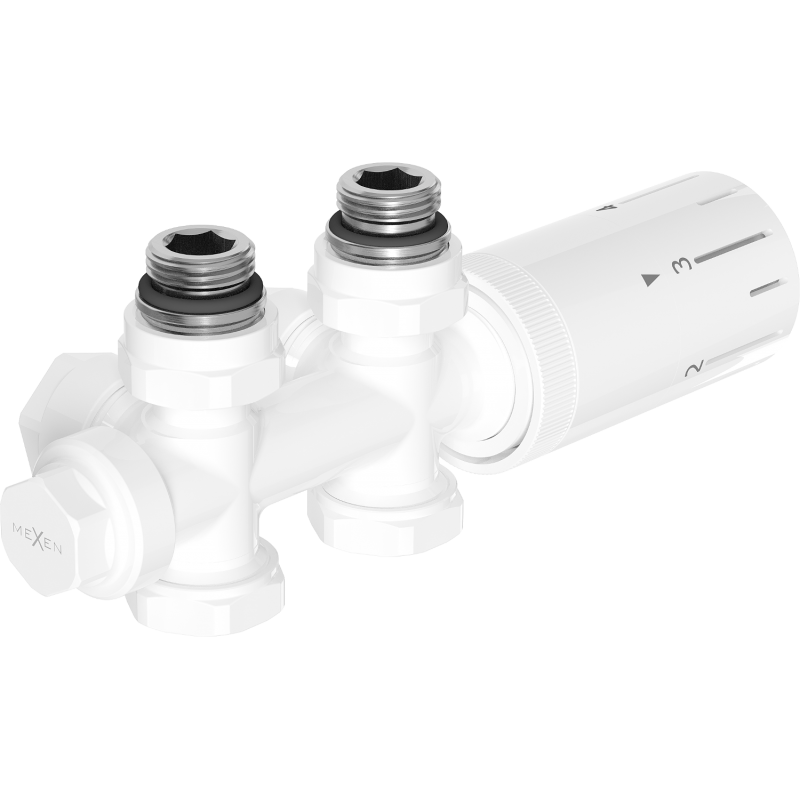

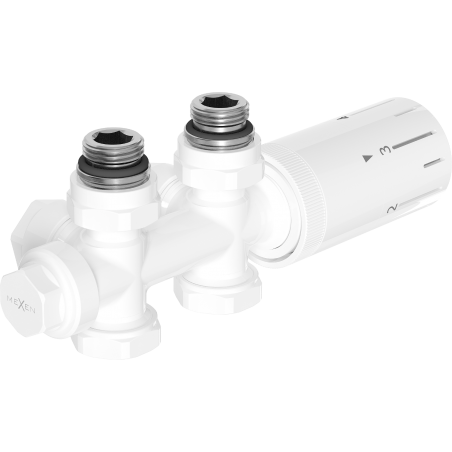

Mexen G05 angled/straight thermostatic set, Duplex, DN50, white - W908-958-20

The Mexen G05 angled/straight thermostatic set is a versatile solution for both angled and straight connections, regardless of location. Made from durable brass and in an aesthetic white colour, it ensures reliable operation at a maximum pressure of 10 bar and operating temperature of up to 120°C. Flexible temperature regulation (0-29°C) and frost protection (5°C) ensure user comfort. Its universality and additional connectors make it an ideal choice for various installations.

Technical data:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Operating temperature: max 120°C

Maximum operating pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Regulation scale: 0-5

Temperature adjustment range: 0-29°C

Ambient temperature: max 50°C

Frost protection 5°C

Possibility to connect the head to the left or right side of the valve

Includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Universal supply and shut-off valve for both angled and straight connections, regardless of whether the connection is in the wall or floor

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Straight , Angle
Color
White
Inlet Diameter
G 1/2"
